Segway Fugleman UT10 Dashboard
Segway Fugleman UT10 Dashboard Parts:
| No. | Part Number | Part Name |
| 1 | U01-H111010-0B0-00 | Dashboard Panel |
| 2 | T04000002003 | 4.2 Self-tapping Screw |
| 3 | T04000002001 | M6 Nut Clamp |
| 4 | T03000007002 | Hexagon Socket Large Pan Head Bolt M6×16 |
| 5 | GBT005789007 | Bolt M6×16 |
| 6.1 | U01H21301001 | Glove Box |
| 6 | U01-H213001-0B0-00 | Glove Box |
| 7 | U01H21307001 | USB Adhesive Strip |
| 8 | U01H21308001 | Glove Box Weather Seal |
| 9 | GBT061831002 | Nut M6 |
| 10 | U09-H213001-0B0-00 | Latch |
| 11 | U01-H213002-0B0-00 | Glove Box Cover |
| 11 | U01H21302001 | Glove Box Cover |
| 12 | GB0000896001 | Circlip 5 |
| 13 | U01H21303001 | Rotating Shaft Of Glove Box |
| 15 | U01H21602001 | Middle Storage Cover |
| 16 | U01H21601001 | Middle Storage Compartment |
| 17 | A01M52300001 | Rear Fog Light Switch |
| 18 | U01M04300001 | Usb Power Output |
| 19 | S01H11000001 | Blocking Cover |
| 20 | S01M51500001 | Release Switch |
| 21 | S01M51800001 | Mode Switch |
| 22 | S01M51400001 | Emergency Switch |
| 23 | S01M51600001 | Ignition Off Switch |
| 24 | U09M57100001 | Power Lock Epa |
| 24 | U09-M570013-000-00 | Power Lock Kit Epa |
| 25 | U01-H214010-XB0-00 | Switch Panel |
| 26 | T03000007001 | Large Pan Head Hexagon Socket Bolt M6×20 |
| 27 | T04000003001 | Expansion Buckle Component |
| 28 | U01H21111001 | Instrument Cover |
| 28 | U01-H211001-0B0-00 | Instrument Cover |
| 28 | U01-H211001-0B0-01 | Instrument Cover |
| 29 | GBT000845009 | Screw St4.2×13 |
| 30 | U01H21112001 | Waterproof Rubber Of Gear Lever |
| 31 | U01H21113001 | Star Button Plug |

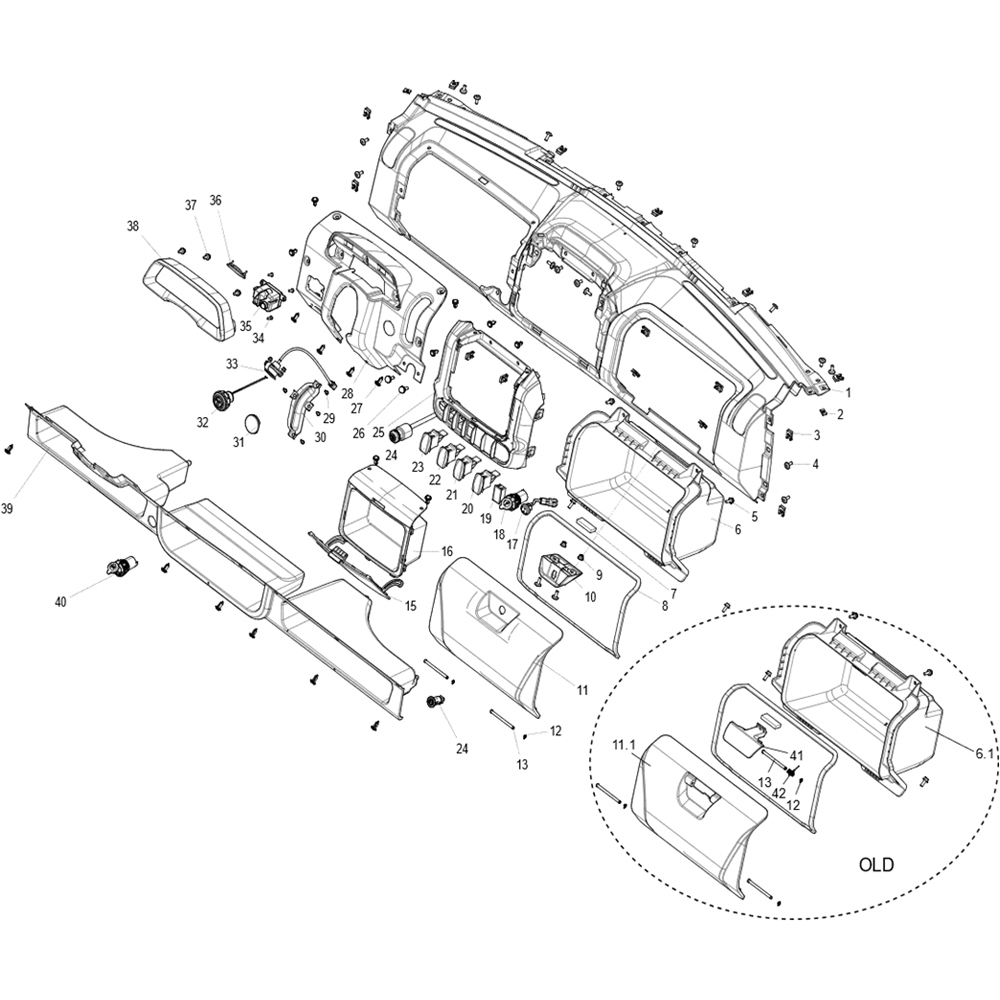

Diagram:
