Segway Fugleman UT10 Drive Shaft Assembly
CA$0.91
In stock
SKU
Segway Fugleman UT10 Drive Shaft Assembly
Segway Fugleman UT10 Drive Shaft Assembly Parts:
| No. | Part Number | Part Name |
| 1 | A03F11001101 | Bolt M8×35 |
| 3 | U09P21100001 | U09_front Transmission Shaft Front Section |
| 3A | U01P21101001 | Transmission Shaft Mounting Spline Fork |
| 3B | U01P22010001 | Univerrsal Cross Shaft Assy |
| 3C | GBT000893007 | Circlip 25 |
| 4 | U01P21400001 | Intermediate Support Seat |
| 5 | GBT005789025 | Bolt M10×1.25×20 |
| 6 | U09P21300001 | U09 Rear Section Front Transmission Shaft |
| 6A | GBT001152001 | Glib M6 |
| 6B | U09P21301001 | Transmission Shaft Sliding Spline Fork |
| 7 | U01P11000001 | U01_constant Velocity Drive Shaft Fl |
| 8 | U01P11030001 | Fl Inner Ball Cage Assy |
| 8A | U01P11011001 | Circlip |
| 9 | U01P11040001 | Maintenance Kit For Inner Ball Cage Assy |
| 9A | U01P11008001 | Big Clamping Band |
| 9B | U01P11006001 | Small Clamping Band |
| 10 | U01P11005001 | Shaft |
| 11 | U01P11050001 | Maintenance Kit For Outside Ball Cage Assy |
| 11A | U01P11004001 | Small Clamping Band |
| 11B | U01P11002001 | Big Clamping Band |
| 12 | U01P11020001 | Outside Ball Cage Assy |
| 13 | U01P12000001 | U01_constant Velocity Drive Shaft Fr |
| 14 | U01P12030001 | Fr Inner Ball Cage Assy |
| 15 | U09P14000001 | U09_constant Velocity Drive Shaft Rl |
| 16 | U09P14020001 | Rl Inner Ball Cage Assy |
| 16A | U09P13006001 | Circlip |
| 17 | U09P13030001 | Maintenance Kit For Rear Shaft Assy |
| 17A | U09P13002001 | Big Clamping Band |
| 17B | U09P13004001 | Small Clamping Band |
| 18 | U09P14005001 | Rl Shaft |
| 19 | U09P13010001 | Outside Ball Cage Assy |
| 20 | U09P13000001 | U09_constant Velocity Drive Shaft Rr |
| 21 | U09P13005001 | Rr Shaft |
| 22 | U09P13020001 | Rr Inner Ball Cage Assy |

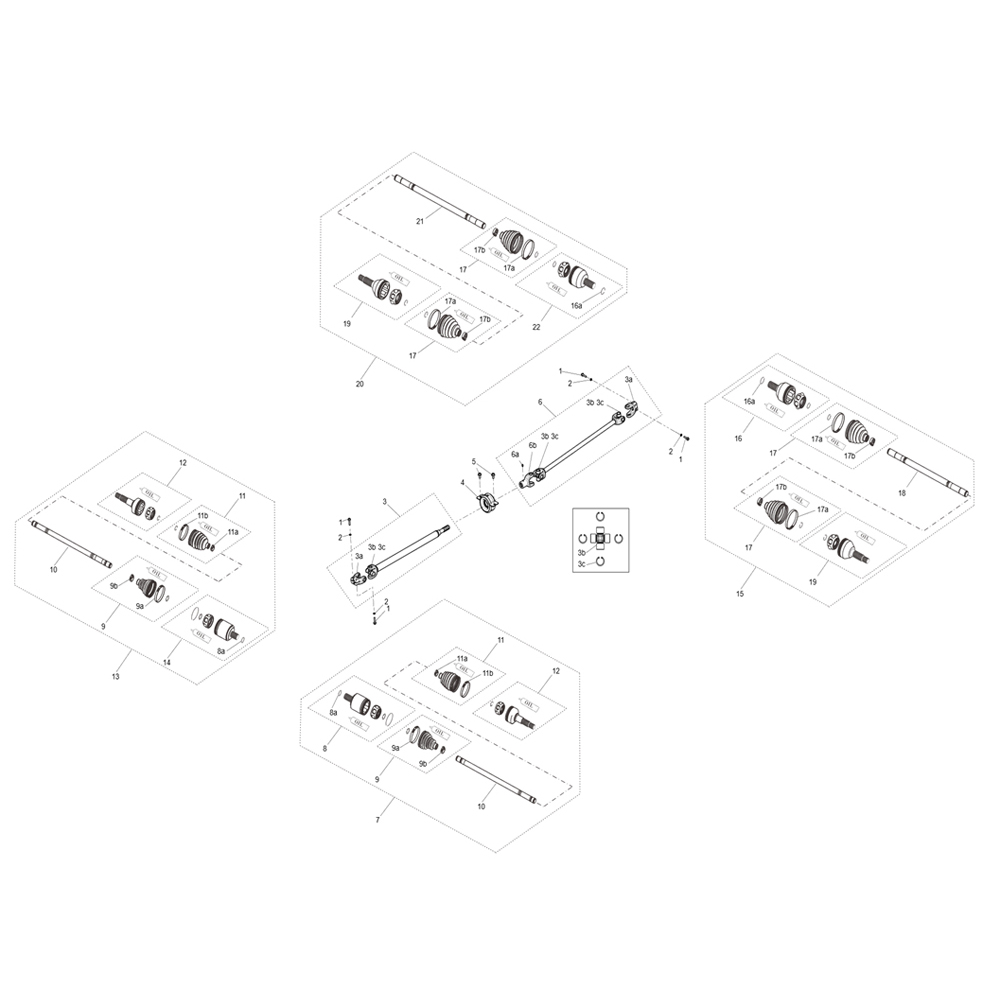

Segway Fugleman UT10 Drive Shaft Assembly Diagram:
