Segway Fugleman UT10 Driving Brake
Segway Fugleman UT10 Driving Brake Parts:
| No. | Part Number | Part Name |
| 1 | U01E11200001 | Fr Brake Assy |
| 2 | S05E15C50001 | Brake Pad Clip |
| 3 | S05E15C60001 | Brake Pad Clip A |
| 4 | S03E15A20001 | Front Brake Pad Assy |
| 5 | A03E11012001 | Gasket |
| 6 | A03E11011001 | Over-oil Bolt |
| 7 | U01E11700001 | Fr Brake Oil Pipe |
| 8 | A03E11005001 | Hydraulic Induction Weitch |
| 9 | U01E11600001 | Fl Brake Oil Pipe |
| 10 | U01E11500001 | Foot Brake Main Pump |
| 11 | U01E11100001 | Fl Brake Assy |
| 12 | U09E11800001 | Rear Brake Oil Pipe |
| 13 | U05E11300001 | Rl Brake Assy |
| 14 | S05E15C20001 | Rear Brake Pad Assy |
| 15 | U05E11400001 | Rr Brake Assy |
| 16 | U09E11000001 | Hydraulic Brake Assy_k |
| 17 | U01E10001002 | U01_front Brake Discφ248，pcd120 |
| 18 | A03E10004001 | Brake Disc Bolt |
| 19 | GBT005789006 | Bolt M6×12 |
| 20 | GBT005789007 | Bolt M6×16 |
| 21 | GBT061771002 | Nut M6 |
| 22 | GBT005789026 | Bolt M10×1.25×25 |
| 23 | GBT005789008 | Bolt M6×20 |
| 24 | U01C00003002 | U01_main Brake Pump Guard Board |
| 25 | GBT005789016 | Bolt M8×25 |
| 26 | GBT000701008 | Screw M10×1.25×65 |
| 27 | A03E12201001 | Nylon Bushing |
| 28 | U01E12003001 | U01_brake Pedal Spring 65mn |
| 29 | U01E12004001 | U01_lining Sleeve |
| 30 | U09E12010002 | U09_weld Brake Pedal |
| 31 | GBT000971005 | Washer 10 |
| 32 | GB0000093005 | Washer 10 |
| 33 | GBT006170001 | Nut M10×1.25 |
| 34 | U01E12030002 | U01_brake Pedal Mounting Base_black Paint |
| 35 | GBT005789015 | Bolt M8×20 |
| 36 | U01E10002002 | U01_rear Brake Discφ240，pcd140 |

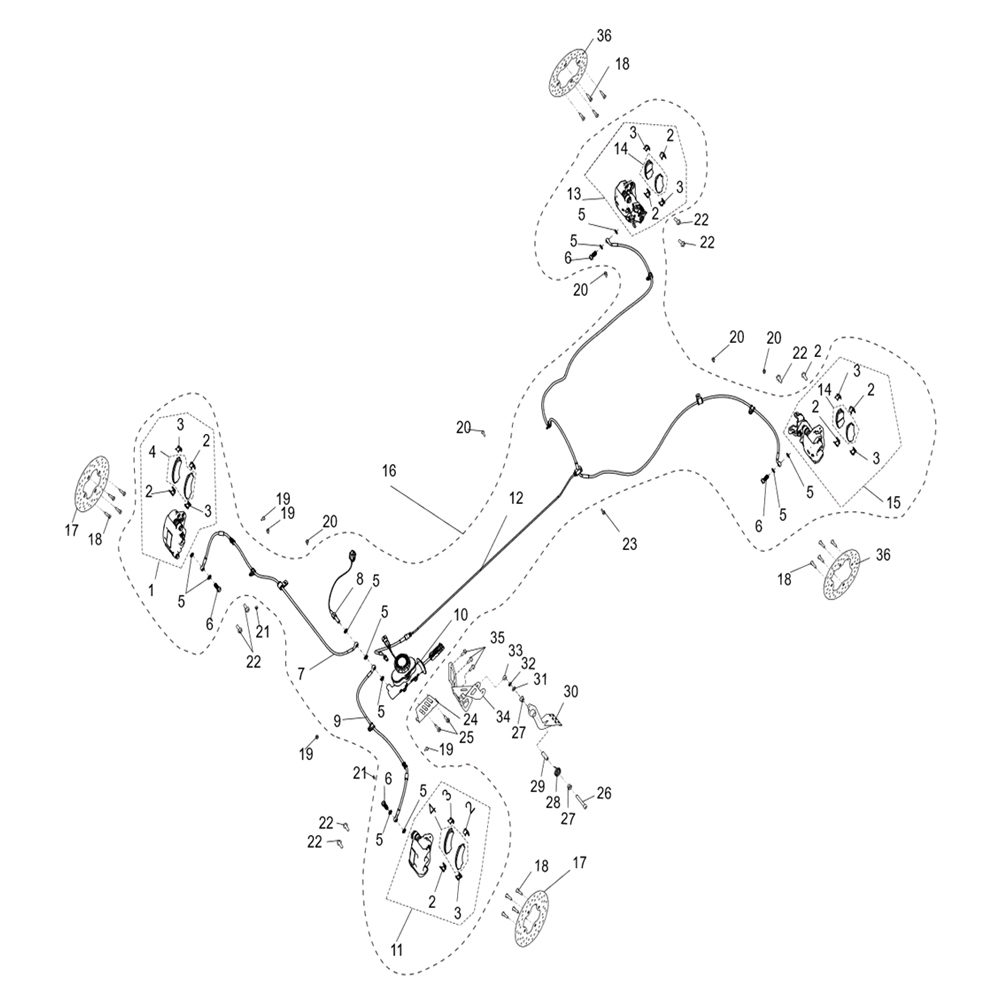

Diagram:
