Segway Fugleman UT10 External Plastic Parts
CA$0.91
In stock
SKU
Segway Fugleman UT10 External Plastic Parts
Segway Fugleman UT10 External Plastic Parts Parts:
| No. | Part Number | Part Name |
| 1 | T04000002001 | M6 Nut Clip |
| 2 | T03000007001 | Bolt M6×20 |
| 3 | U01H13203001 | Roof Empennage Cover Pp Black |
| 4 | GBT000961002 | Washer Φ6 |
| 5 | GBT061831002 | Nut M6 |
| 6 | U01H13205001 | Roof Cover Sealing Strip |
| 7 | U01-H232030-0B0-01 | Fuel Filler Baffle |
| 8 | U01-H143110-0B0-00 | Left Handle Shield |
| 9 | U09-H123120-0B0-01 | Lr Side Plate Cover |
| 9.1 | U09-H123120-0B0-00 | Lr Side Plate Cover |
| 10 | U01R10001001 | Washer |
| 11 | GBT005789007 | Bolt M6×16 |
| 12 | T03000007002 | Hexagon Socket Mushroom Head Screw |
| 13 | U01H12311001 | Lf Side Plate Cover Pp Black |
| 14 | U09-H101001-0K0-00 | Front Skid Plate |
| 15 | U09-H101002-0K0-00 | Middle Skid Plate |
| 16 | U09-H101003-0B0-01 | Rear Skid Plate |
| 17 | U09-H101001-0B0-00 | Roof Left Inner Cover |
| 18 | U09-H101003-0B0-00 | Roof Inner Cover Clamp |
| 19 | U01H13201001 | Roof Cover Pp Black |
| 20 | U01H13204001 | Roof Rubber Ring |
| 21 | T02000008001 | Roof Bush |
| 22 | T03000008001 | Bolt M8×35 |
| 23 | GBT061831003 | Non-metallic Hexagon Flange Nut M8 |
| 24 | GBT000961003 | Large Washer A Grade 8 |
| 25 | T03000008003 | Bolt M8×25 |
| 26 | U09-H101002-0B0-00 | Roof Right Inner Cover |
| 27 | U01-H142110-0B0-00 | Right Handle Shield |
| 28 | U01-H124130-0B0-00 | Rr Inner Plate Cover |
| 29 | U09-H124120-0B0-01 | Rr Side Plate Cover |
| 29 | U09-H124120-0B0-00 | Rr Side Plate Cover Pp Black |
| 30 | U01H12411001 | Rf Side Plate Cover Pp Black |
| 31 | U09-H127100-0B0-00 | Oil Filler Cover Pp Black |
| 32 | U01H12810001 | Charging Port Cover Pp Black |

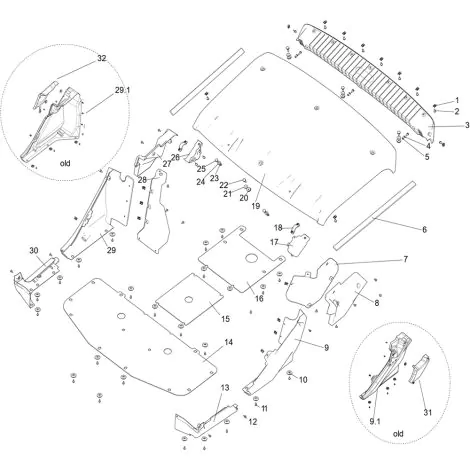

Diagram:
