Segway Fugleman UT10 Frame Assembly
Segway Fugleman UT10 Frame Assembly Parts:
| No. | Part Number | Part Name |
| 1 | U09-B020000-DB0-00 | Frame |
| 2 | U09C26100002 | Front Bracket Weld Assy |
| 3 | GBT005789016 | Hexagon Flange Bolt M8×25 |
| 4 | GBT005789019 | Hexagon Flange Bolt M8×40 |
| 5 | U01-C030000-DB0-00 | Seat Lower Bracket |
| 6 | U01C01010003 | Front Bumper Assy - Red |
| 6 | U01C01010004 | Front Bumper Assy - Green |
| 6 | U01C01010005 | Front Bumper Assy - Black |
| 7 | GBT005789025 | Hexagon Flange Bolt M10×1.25×20 |
| 8 | U01C01020001 | Front Bumper Guard |
| 9 | GBT166741060 | Bolt M6×16 |
| 10 | S01C20300002 | Trailer Hitch |
| 11 | U01R21100001 | Hitch Ball |
| 12 | U01R21300002 | Trailer Hitch Pin |
| 13 | QCT000623002 | Lock Pin 12 |
| 14 | GBT005789026 | Bolt M10×1.25×25 |
| 15 | GBT006170001 | Nut M10×1.25 |
| 16 | U01C00070002 | Trailer Power Mounting Bracket |
| 17 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 18 | U01M04500003 | Trailer Power Output Assy |
| 18 | U01M04500004 | Trailer Power Output Assy (For Lof) |
| 19 | GBT000818007 | Cross Recessed Hexagon Bolts M5×30 |
| 20 | U01C01280002 | T-box Mounting Plate |
| 21 | GBT005789007 | Bolt M6×16 |
| 22 | U09C24100002 | Headlight Bracket Right |
| 23 | U09C23100002 | Headlight Bracket Left |
| 24 | GBT000701003 | Hexagon Socket Head Cap Bolt M10×1.25×25 |
| 26 | U01-C000030-DB0-00 | Rectifier Mounting Bracket Assembly |
| 27 | U09-M910030-DB0-00 | Mounting Plate For Fan Controller |
| 28 | U09-A400210-DB0-00 | Middle Fan Bracket |
| 29 | U01C00060002 | Lof Controller Bracket |
| 30 | GBT005789012 | Hexagon Flange Bolt M6×40 |
| 31 | GBT061831002 | Nut M6 |

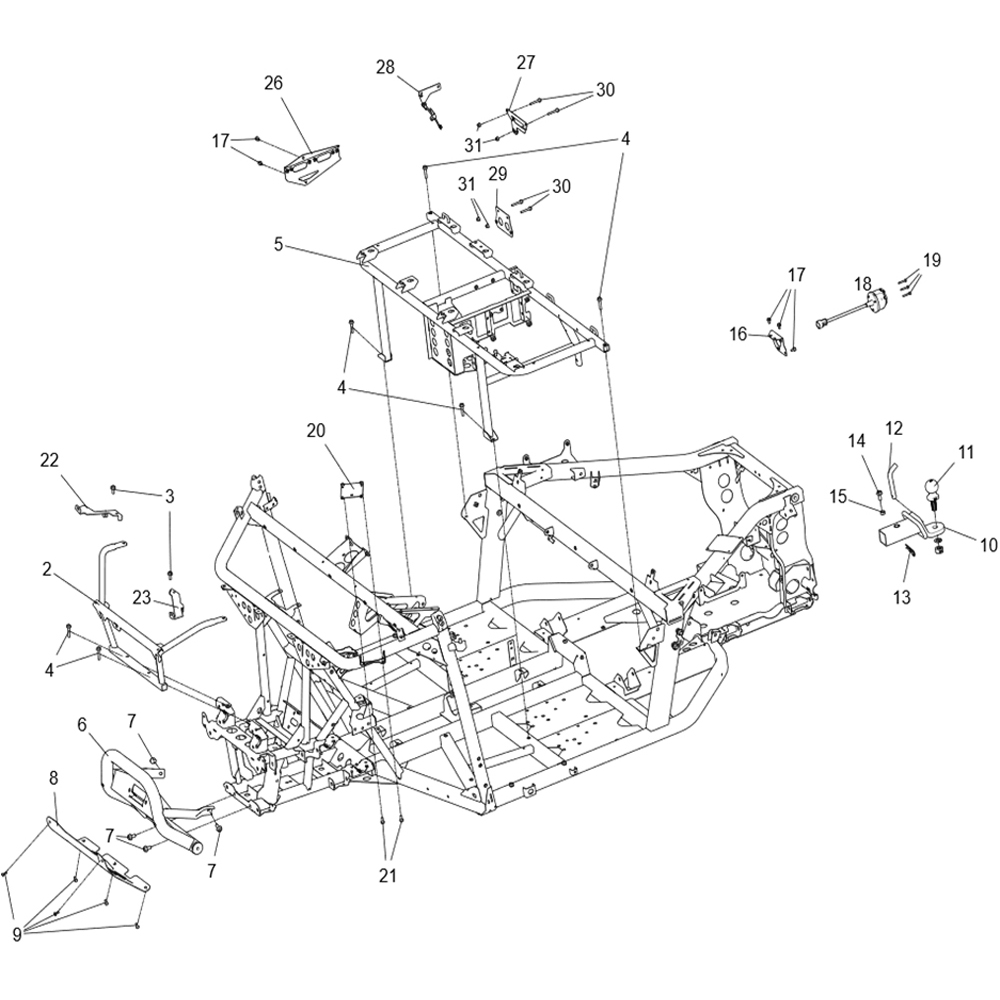

Segway Fugleman UT10 Frame Assembly Diagram:
