Segway Fugleman UT10 Front Suspension Assembly-US Standard
Segway Fugleman UT10 Front Suspension Assembly-US Standard Parts:
| No. | Part Number | Part Name |
| 1 | U09-D161001-FB0-00 | Front Balance Bar Assy |
| 2 | U01D26002001 | Rear Sway Bar Mounting Bracket |
| 3 | U01D26001001 | Sway Bar Bushing |
| 4 | U09D16200001 | Fl Balance Bar Ball Pin |
| 5 | U09D16300001 | Fr Balance Bar Ball Pin |
| 6 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 7 | GBT005789017 | Hexagon Flange Bolt M8×30 |
| 8 | GBT001152001 | Fuel Cup M6 |
| 9 | U09-D150000-0R0-00 | Front Shock Absorber_red |
| 9 | U09-D150000-0G0-00 | Front Shock Absorber_green |
| 9 | U09-D150000-0B0-00 | Front Shock Absorber_black |
| 10 | GBT005789032 | Hexagon Flange Bolt M10×1.25×55 |
| 11 | U01D13100003 | Fl Lower A-arm (Red) |
| 11 | U01D13100004 | Fl Lower A-arm (Green) |
| 11 | U01D13100005 | Fl Lower A-arm (Black) |
| 12 | U01D14100003 | Fr Lower A-arm (Red) |
| 12 | U01D14100004 | Fr Lower A-arm (Green) |
| 12 | U01D14100005 | Fr Lower A-arm (Black) |
| 13 | U01H12900001 | Fl Lower A-arm Guard |
| 14 | U01H13100001 | Fr Lower A-arm Guard |
| 15 | U01D11200001 | Ball Joint - Lower |
| 16 | GBT000894004 | Circlip 34 |
| 17 | GBT061832010 | Nut M12×1.25 |
| 18 | U09D20008001 | A- Arm Dust Cover |
| 19 | U09D20006001 | A- Arm Bushing |
| 20 | U09D10001001 | A- Arm Sleeve |
| 21 | GBT005789103 | Bolt M12×1.25×90 |
| 22 | GBT005789104 | Bolt M12×1.25×95 |
| 23 | U09-D111003-FR0-00 | Fl Upper A- Arm (Red) |
| 23 | U09-D111004-FG0-00 | Fl Upper A- Arm (Green) |
| 23 | U09-D111005-FB0-00 | Fl Upper A- Arm (Black) |
| 24 | U09-D121003-FR0-00 | Fr Upper A- Arm (Red) |
| 24 | U09-D121004-FG0-00 | Fr Upper A- Arm (Green) |
| 24 | U09-D121005-FB0-00 | Fr Upper A- Arm (Black) |
| 25 | T03000007002 | Hexagon Socket Large Pan Head Bolt M6×16 |
| 26 | U01D10010001 | Fl Knuckle Complete Assy |
| 26a | U01D10011001 | Fl Knuckle |
| 26 | JBT010238002 | Hub Bearing(Dac3006342-2zc1) |
| 26c | GBT000893002 | Circlip 63 |
| 27 | U01D10020001 | Fr Knuckle Complete Assy |
| 27a | U01D10021001 | Fr Knuckle |
| 28 | U01D10001002 | Brake Rotor Dust Shield |
| 29 | GBT005789030 | Bolt M10×1.25×45 |
| 30 | T07000001007 | 90°grease Fitting |

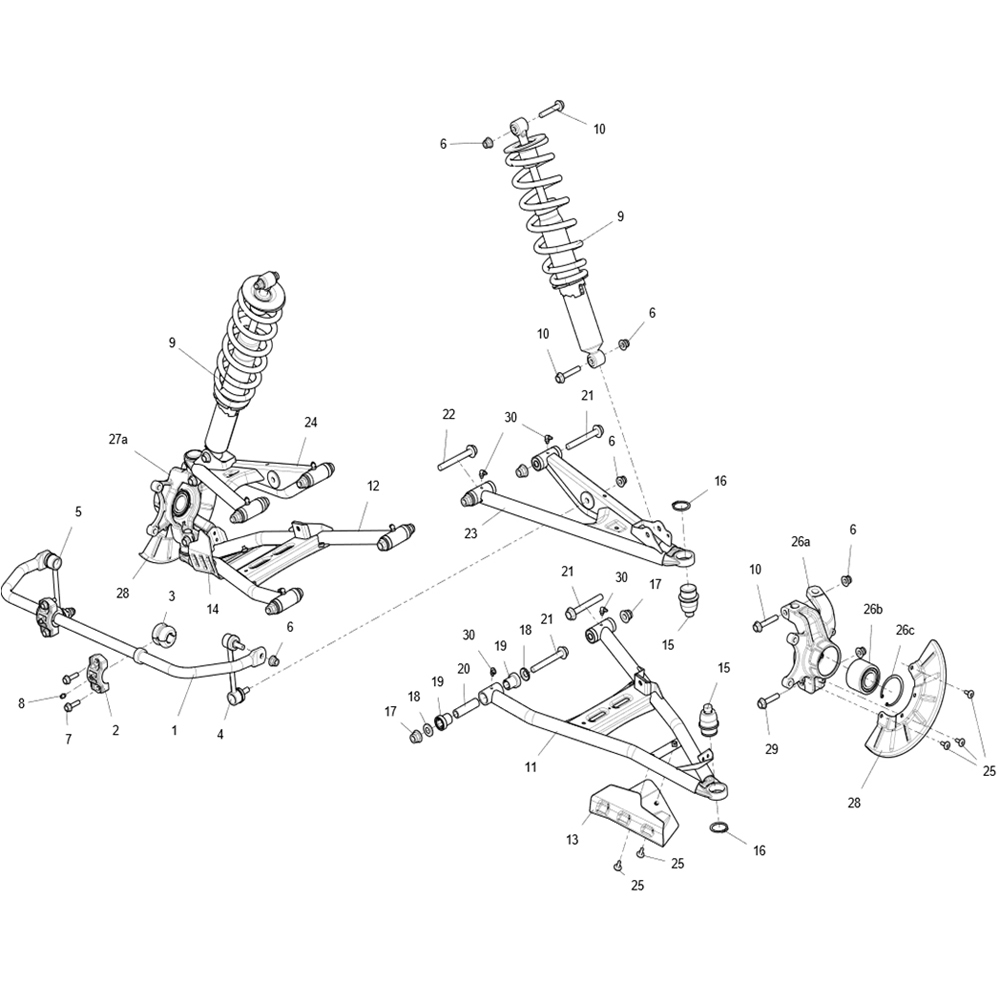

Diagram:
