Segway Fugleman UT10 Fuel Supply System-US Standard
Segway Fugleman UT10 Fuel Supply System-US Standard Parts:
| No. | Part Number | Part Name |
| 1 | S01A50106001 | Oil Pump Protective Mat |
| 2 | U01A51100001 | U01 Plastic Fuel Tank Assy Epa |
| 3 | U01A50009001 | U01 Oil Tank Front And Rear Shock Pad |
| 4 | U01A50005001 | U01 Fuel Oil Tank Up Shock Pad |
| 5 | U01M43000001 | U01 Oil Pump Assy |
| 6 | U01A51400001 | Oil Pump Sealing Ring |
| 7 | U01A51500001 | Oil Pump Mounting Cover |
| 8 | U01A51305001 | U01 Fuel Tank Heat-insulating Film |
| 9 | U01A51304001 | U01 Oil Filling Pipe Heat-insulating Film |
| 10 | QCT000620006 | A Type Worm Drive Hose Hoop 70 |
| 11 | QCT006211005 | Clamp 16 |
| 12 | U05A51400001 | U05 Fuel Filler Breather Pipe |
| 13 | U01A51301001 | U01 Oil Filling Pipe |
| 14 | U01A51302002 | U01 Oil Filler |
| 15 | T04000002001 | M6 Nut Clamp |
| 16 | T03000007002 | Bolt M6×16 |
| 17 | S01A50105001 | Oil Tank Cap（unlock) |
| 18 | U05A53009002 | U05 Canister Installtion Bracket |
| 19 | GBT005789007 | Bolt M6×16 |
| 20 | U05A53001001 | U05 Canister 45l |
| 21 | QCT006211004 | Clamp 13 |
| 22 | U05A53002001 | U05 Adsorption Pipe |
| 23 | T05000001004 | Ribbon Φ7×180 |
| 24 | U09A53003001 | U05 Solenoid Valve Inlet Pipe |
| 25 | QCT006211004 | Clamp 13 |
| 26 | A01M45000001 | U05 Adsorption Pipe |
| 27 | U09A53004001 | U05 Solenoid Valve Outlet Pipe 1 |
| 28 | QCT006211020 | Clamp 10 |
| 29 | U05A53007001 | U05 Solenoid Valve Air Pipe Connect Three-way |
| 30 | U05A53006001 | U05 Solenoid Valve Outlet Pipe 3 |
| 31 | U05A53005001 | U05 Solenoid Valve Outlet Pipe 2 |
| 32 | T07000001003 | 9.49 Quick Connection Plug(0 Degrees) |
| 33 | T05000006001 | Clamp 16.5 |
| 34 | U09A52001001 | U09 High-pressure Oil Pipe 1 |
| 35 | U01A52010001 | U01 Fuel Filter Assy |
| 36 | U09A52003001 | U09 High-pressure Oil Pipe 2 |
| 37 | T07000001006 | 7.89 Quick Connection Plug(90 Degrees) |
| 41 | U09A52000001 | U09 Electric Fuel Injection Circuit Assy(Rubber) |

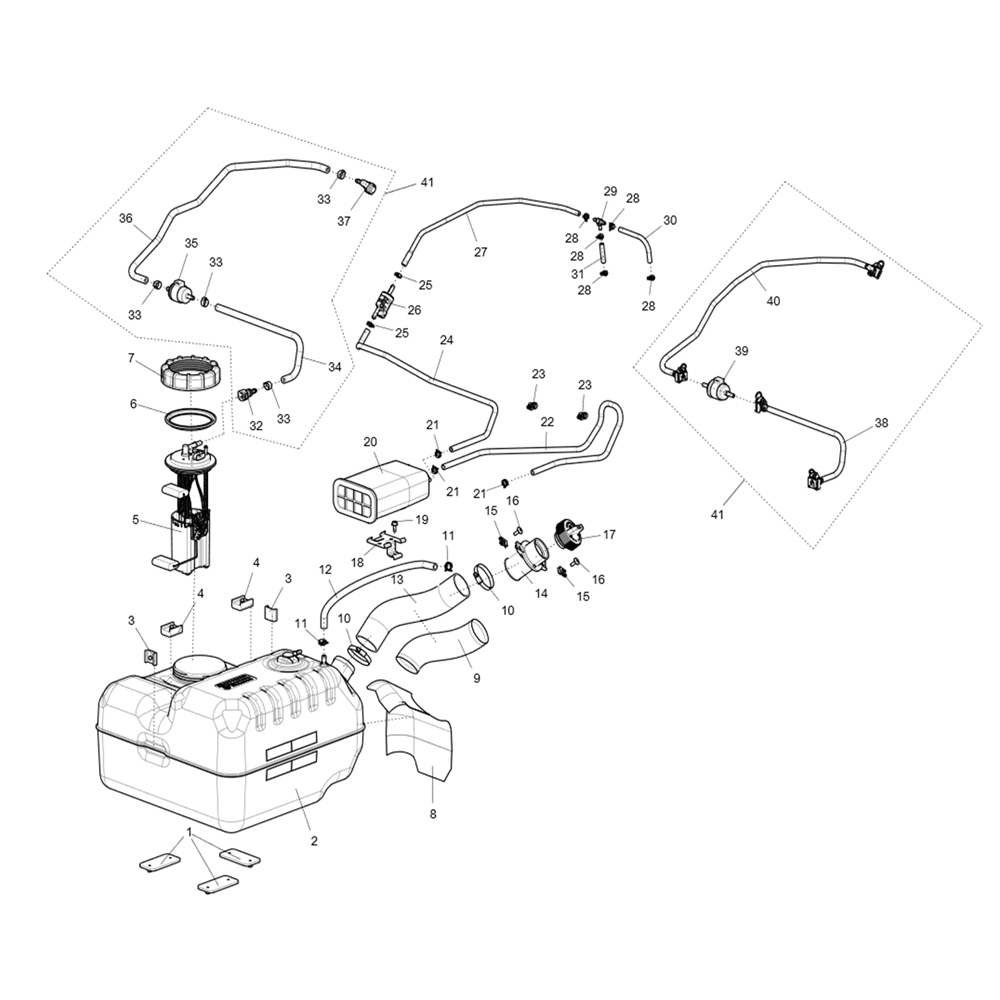

Segway Fugleman UT10 Fuel Supply System-US Standard Diagram:
