Segway Fugleman UT10 Gas Distribution Sub-Assembly
CA$0.91
In stock
SKU
Segway Fugleman UT10 Gas Distribution Sub-Assembly
Segway Fugleman UT10 Gas Distribution Sub-Assembly Parts:
| No. | Part Number | Part Name |
| 1 | F02A40030001 | Chain Guide Plate Assembly |
| 2 | F02A40020001 | Exhaust Camshaft Combination |
| 3 | F02A40010001 | Intake Camshaft Combination |
| 4 | F01A40003001 | Camshaft Sprocket |
| 5 | F01A40004001 | Cylindrical Pin 5×8 |
| 6 | F01A40009001 | Bolt M6×12 |
| 7 | F01A40400001 | Timing Chain |
| 8 | E02-A406010-000-02 | Chain Guide, tensioner |
| 9 | F01A40008001 | Tensioner Gasket |
| 10 | E02-A403000-000-02 | Tensioner |
| 11 | F01000005001 | Bolt M6×25 |
| 12 | F01A40007002 | Hexagon Socket Pan Head Stepped Bolts |
| 13 | E02-C110005-000-03 | Timing Chain Limit Plate |

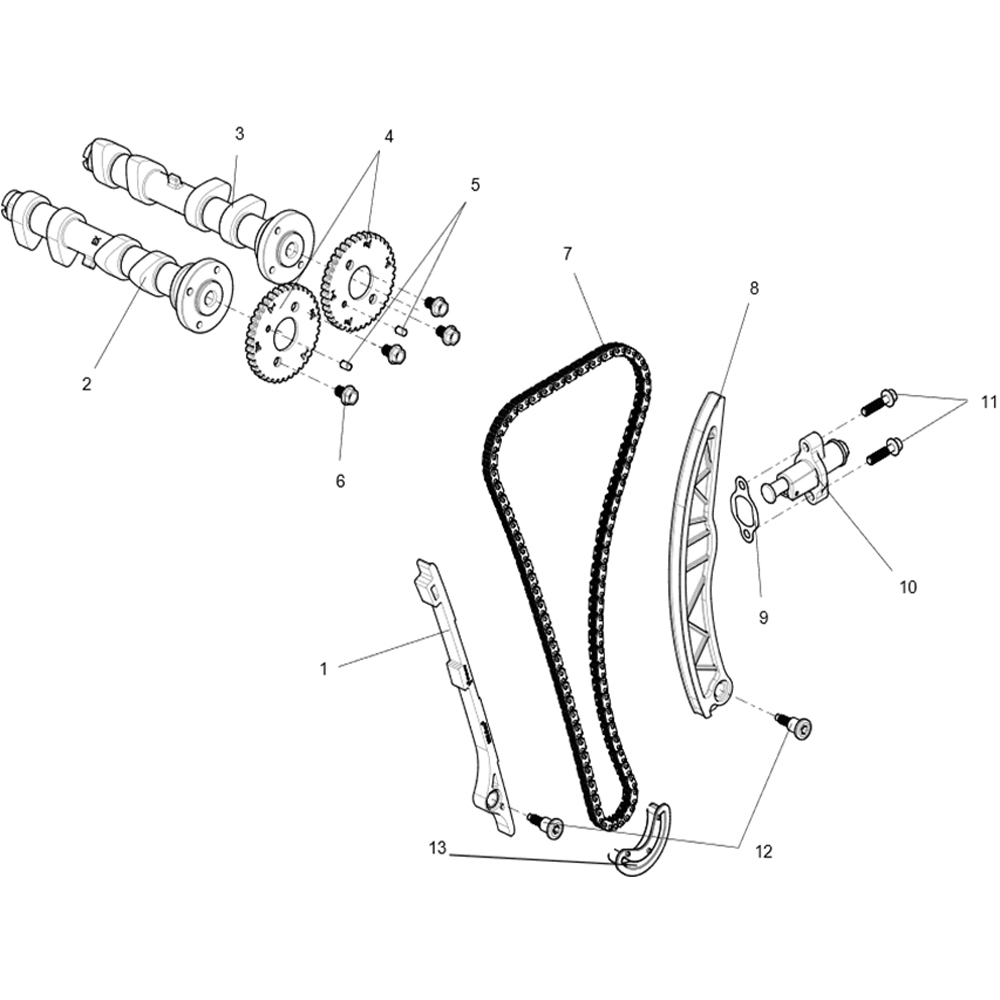

Diagram:
