Segway Fugleman UT10 Gear Shift
Segway Fugleman UT10 Gear Shift Parts:
| No. | Part Number | Part Name |
| 1 | F01000004001 | Bolt M6×20 |
| 2 | F01F10011001 | Oil Seal 15×25×5 |
| 3 | F01F10009001 | Shiftshaft Cover |
| 4 | GBT001192001 | Dowel Pin 6×10 |
| 5 | F01F10010001 | Shiftshaft Cover Gasket |
| 6 | F01F10406001 | Bolt M6×40 |
| 7 | F01F10407001 | Spacer 6.2×22×2 |
| 8 | F01F10404001 | Sector Gear Torsion Spring |
| 9 | F01F10408001 | Shoulder Bolt |
| 10 | F01F10403001 | Sector Gear |
| 11 | F01F10500001 | Shift Shaft |
| 12 | F01F10402001 | Positioning Star |
| 13 | F01F10401001 | Detent Pawl |
| 14 | F01F10405001 | Sector Gear Spacer |
| 15 | F01F10006001 | Detent Pawl Torsion Spring |
| 16 | F01G00008001 | Spacer 15×28×1 |
| 17.1 | E02F11000001 | Variable Speed Drum Assembly |
| 18 | GBT003081003 | Ball 3/8 |
| 19 | F01F10001001 | Neutral Position Spring |
| 20 | F01F10003001 | Gasket 14×21×1.5 |
| 21 | F01F10007001 | Neutral Position Spring Plug |
| 22 | F01F10700001 | Gear Sensor |
| 23 | F01F10008001 | O-ring 29.6×2.4 |
| 24 | F01000002001 | Bolt M6×16 |
| 25 | GBT000894006 | Circlip 12 |
| 26 | E02F12100001 | L Gear Shift Fork Assembly |
| 27 | F01F10202001 | Shift Fork |
| 28 | F01F10203001 | Shift Fork Spring Seat |
| 29 | E02F12001001 | L Gear Shift Fork Shaft |
| 30 | E02F13100001 | Hr Gear Shift Fork Assembly |
| 31 | E02F13001001 | H/r Gear Shift Fork Shaft |
| 32 | E02F14001001 | Parking Guide Shaft |
| 33 | E02F14200001 | Push Rod Seat Assembly |
| 34 | E02F14100001 | Push Rod Assembly |
| 35 | E02F14002002 | Parking Brake Arm |
| 36 | F01A40007002 | Hexagon Socket Pan Head Stepped Bolts |
| 37 | E02F14003001 | Push Rod Guide Seat |
| 38 | E02F14006001 | Parking Arm Shaft |
| 39 | E02F12000001 | L Gear Shift Fork Shaft Assembly |
| 40 | E02F13000001 | Hr Gear Shift Fork Shaft Assembly |

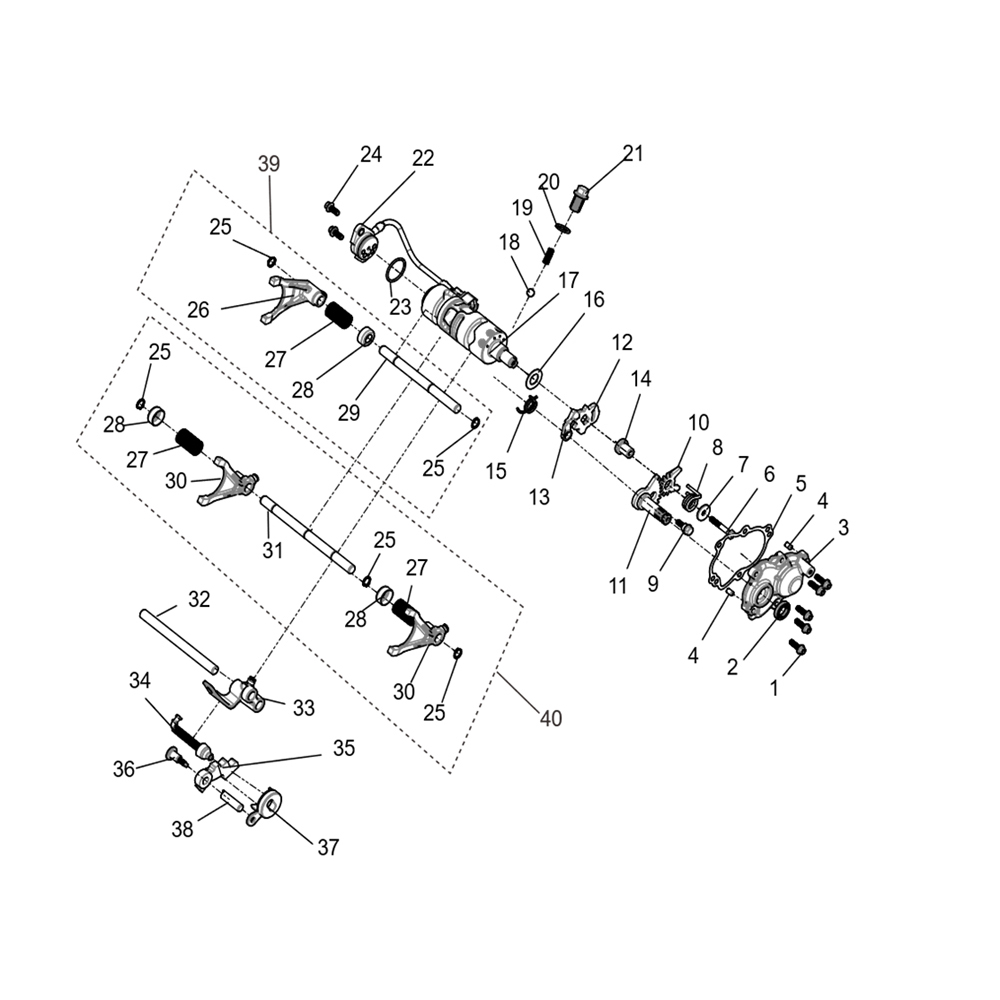

Diagram:
