Segway Fugleman UT10 Low Voltage Wiring Harness Assembly-US Standard

Be the first to review this product
CA$0.91
In stock
SKU
Low Voltage Wiring Harness Assembly-US Standard


Segway Fugleman UT10 Low Voltage Wiring Harness Assembly-US Standard Parts:

No. Part Number Part Name
1 U09M11100001 Main Cable Assy
2 U09M12100001 Electrospray Cable Assy
3 U09M13100001 Taillight Cable Assy
4 U09M14400001 Starting Motor Cable Assy
5 U09M14200001 Battery Positive Cable Assy
6 U09M14500001 Battery Negative Cable Assy
7 T05000001004 Clip, round 200
8 T05000001005 Clip, square 200
9 T05000001007 Ribbon 2×120
10 T10100001016 Relay
11 T10100001008 Slow-fuse50a
12 T10100001007 Fuse Protector 40a
13 T10100001014 Clip Fuse 20a
14 T10100001003 Mini-fuse10a
15 T10100001004 Mini-fuse15a
16 T10100001018 Normally Closed Relay
17 T10100001013 Fuse15a
No. Part Number Part Name
18 T10100001001 Mini-fuse5a
19 T04000002001 M6 Nut Clip
20 GBT005789007 Bolt M6×16
21 GBT000845009 Screw St4.2×13
22 GBT000818006 Screw M5×20
25 GBT005789014 Hexagon Flange Bolt M8×16
26 U01M02200001 Horn
27 S01-M041000-000-00 Flasher
28 S01M34000002 T-box（North America）
28 S01M34000003 T-box（Mexico）
28 S01M34000004 T-box（Australia, South America）
29 U01M33000001 Buzzer
30 GBT005789006 Hexagon Flange Bolt M6×12
31 GBT005789011 Hexagon Flange Bolt M6×35
32 A01M04300001 Rectifier
32 A01M04400001 Rectifier S
32 A01-M044000-000-00 Rectifier 30a
No. Part Number Part Name
33 S01H20200001 Battery Fixing Belt
34 T10100001017 32ah Battery Belt
35 A01M04500001 Battery 32ah
36 GBT005789008 Hexagon Flange Bolt M6×20
37 U01M04400001 Wiring Terminal
38 A01M04200001 Starting Relay
38 U09-M042000-000-00 Starting Relay
39 S01H21600001 Foam Cushion
40 S03M31100001 Instrument Control Module
41 GBT000845014 Cross Recessed Hexagon Screw St4.8×16
42 U09-M110001-000-00 Fan Adapter Cable
43 U09-M310001-000-00 Fan Control Module
44 U09-M110002-000-00 UTV Rectifier Transfer Line
45 GBT000818004 Screw M5 × 12
46 E02C30006001 Cvt Temperature Sensor
47 GBT000818005 Screw M5 × 6

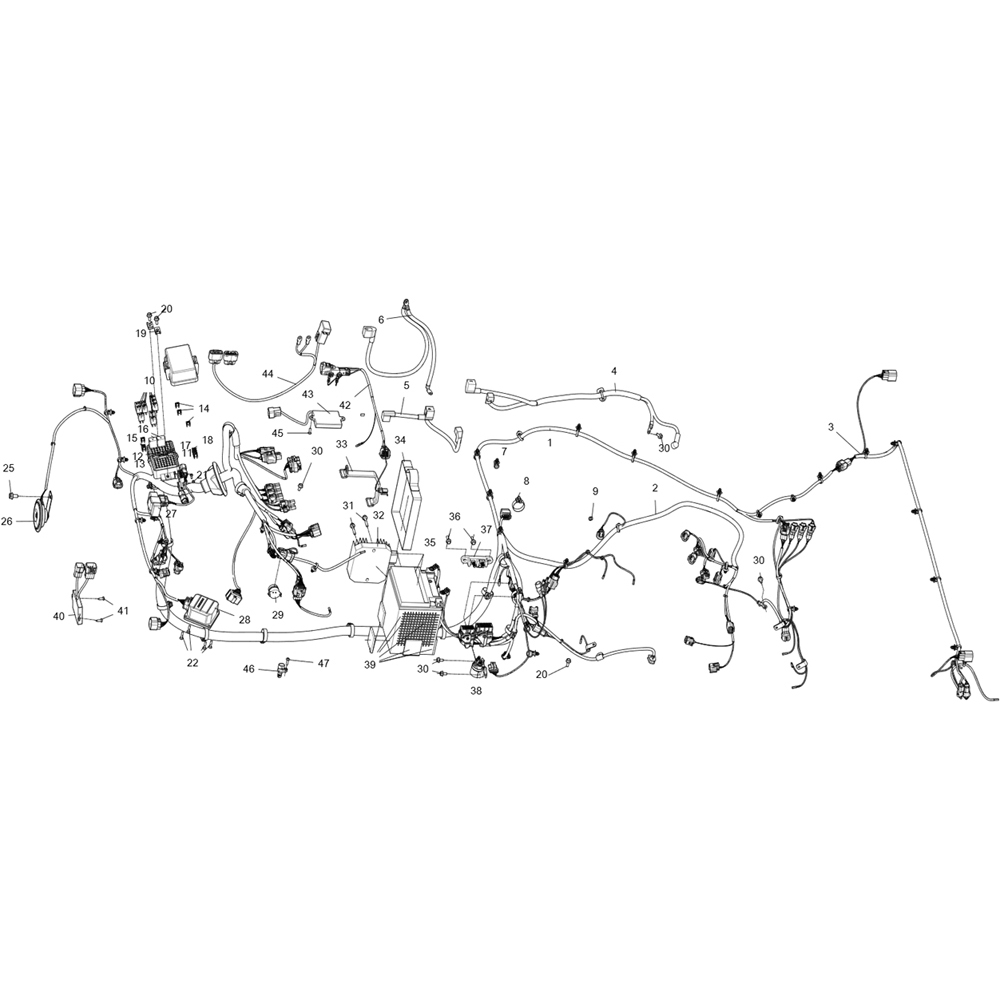

Segway Fugleman UT10 Low Voltage Wiring Harness Assembly-US Standard Diagram:
