Segway Fugleman UT10 Power Installation Assembly
Segway Fugleman UT10 Power Installation Assembly Parts:
| No. | Part Number | Part Name |
| 1 | U09A12010002 | U09 Engine Installtion Bracket Ⅱ |
| 2 | S05H20200001 | S05 Engine Damping Set |
| 3 | GBT005789094 | Bolt M12×1.25×85 |
| 4 | GBT061832002 | Nut M12×1.25 |
| 5 | GBT005789100 | Bolt M10×1.25×155 |
| 6 | GBT061832001 | Nut M10×1.25 |
| 7 | U09A11010002 | U09 Engine Installtion Bracket Ⅰ |
| 8 | GBT005789029 | Bolt M10×1.25×40 |
| 9 | Q03F00000002 | Front Axle Assy |
| 10 | GBT005789025 | Bolt M10×1.25×20 |
| 11 | GBT005789023 | Bolt M8×90 |
| 12 | GBT061831003 | Nut M8 |
| 13 | A02A10002001 | Rear Axle Breather Pipe |
| 14 | QCT006211003 | Clamp 11 |

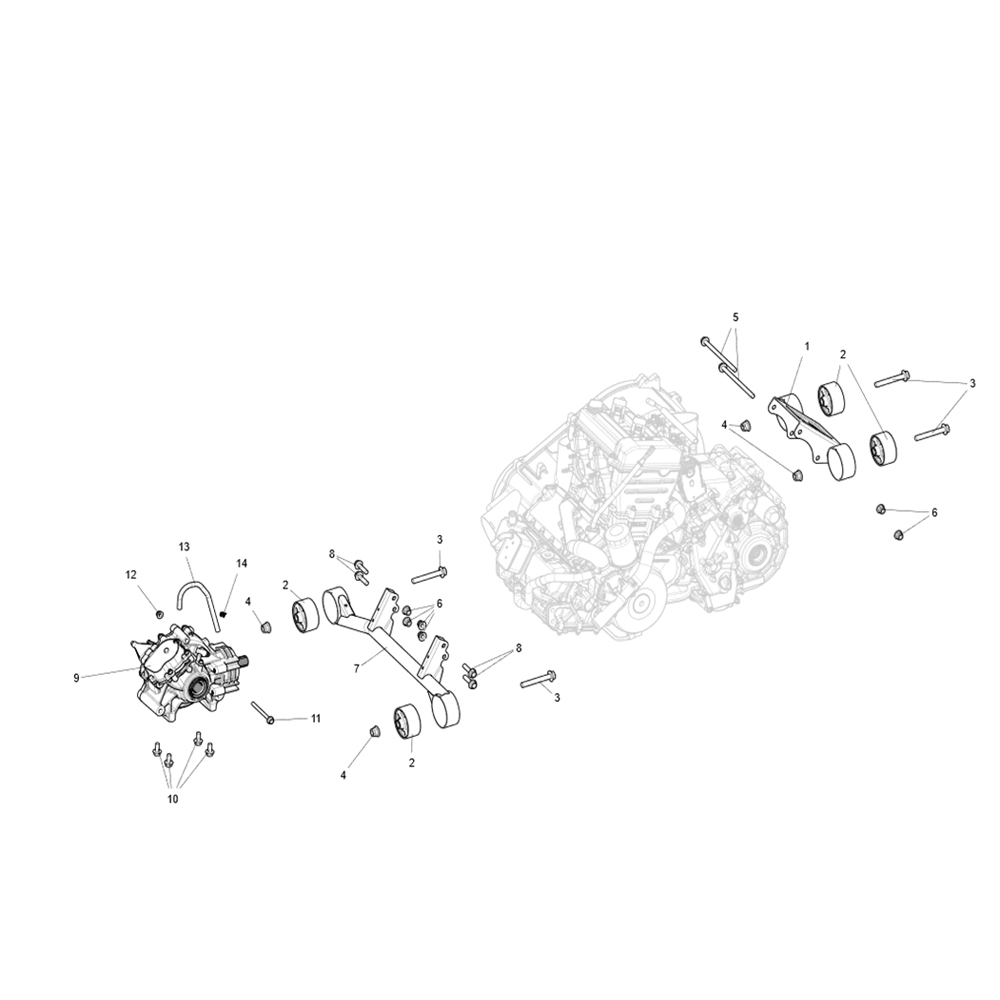

Diagram:
