Name: Segway Fugleman UT10 Rear Cargo Box Assembly-US Standard
Price: 0.91 CAD
Availability: InStock

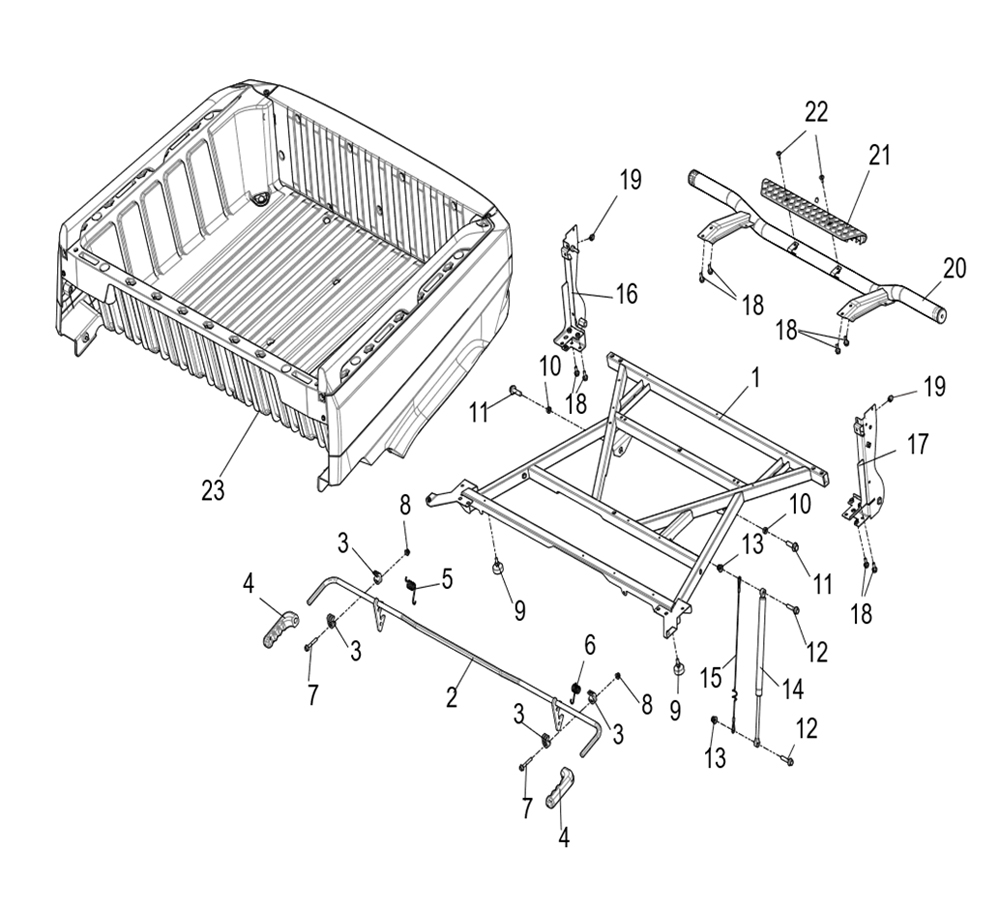

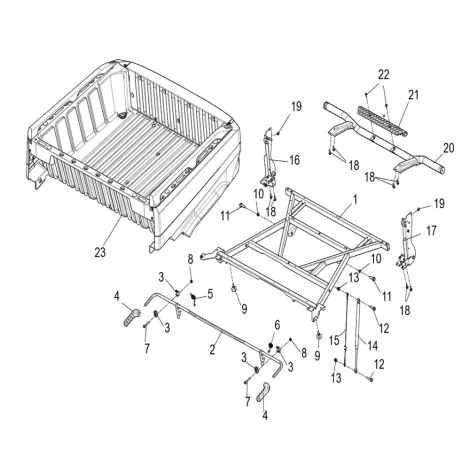

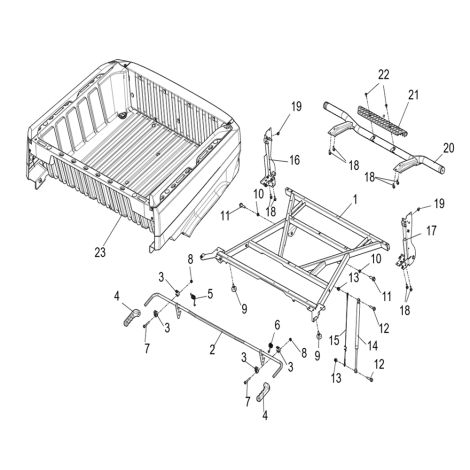

Segway Fugleman UT10 Rear Cargo Box Assembly-US Standard Parts:

No.	Part Number	Part Name
1	U01C30100002	U09 Cargo Bracket-black
2	U01C30203002	U01 Cargo Box Lock Hook-black
3	U01C30206001	U01 Container Lock Hook Fiking Block-pa66-black
4.1	U01-C302021-0B0-00	Left Turnover Handle Of Container
4.2	U01-C302022-0B0-00	Right Turnover Handle Of Container
5	U01C30205001	U01 Torsion Spring Of Container Lock Hook-right
6	U01C30204001	U01 Torsion Spring Of Container Lock Hook-left
7	GBT005789021	Bolt M8×50
8	GBT061831003	Nut M8
9	U01C30800001	U01 Cargo Cushion Block(With Nut M8)
10	U01C30001001	U01 Trunk Shaft Bushing-black
11	GBT005789142	Bolt M12×1.25×50
12	GBT005789030	Bolt M10×1.25×45
13	GBT061832001	Nut M10×1.25
14	U01C31000001	U01 Air Support L=652mm
15	U01C30600001	U01 Air Support Cable L=652mm
16	U01C30400002	U01 Right Side Plate Assembly Of Container-black
17	U01C30300002	U01 Left Side Plate Assembly Of Container-black
18	GBT005789015	Bolt M8×20
19	U01H14120001	U01 Cargo Door Rubber
20	U01C02010003	U01 Rear Bumper Weld Assy -red_epa
20	U01C02010004	U01 Rear Bumper Weld Assy -green_epa
20	U01C02010005	U01 Rear Bumper Weld Assy -black_epa
21	U01H14121001	U01 Rear Bumper Pedal
22	T03000007002	Bolt M6×16
23	U01H14100002	U01 Cargo Box Assy White
23	U01H14100003	U01 Cargo Box Assy Black
23	U01H14100004	U01 Cargo Box Assy Gray
23	U01H14100005	U01 Cargo Box Assy Grassland Camouflage
23	U01H14100008	U01 Cargo Box Assy Blue(Only China)
