Segway Fugleman UT10 Rear Suspension Assembly
Segway Fugleman UT10 Rear Suspension Assembly Parts:
| No. | Part Number | Part Name |
| 1 | U09-D261001-FB0-00 | U01 Rear Balance Bar Assy (Solid Piece) |
| 2 | U01D26002001 | Rear Sway Bar Mounting Bracket |
| 3 | U01D16001001 | Sway Bar Bushing |
| 4 | S01D10820001 | Right Stabilizer Ball Joint |
| 5 | S01D10810001 | Left Sway Bar End Link |
| 6 | GBT061832010 | Nut M12×1.25 |
| 7 | GBT005789017 | Hexagon Flange Bolt M8×30 |
| 8 | GBT001152001 | Fuel Cup M6 |
| 9 | U09-D250000-0R0-00 | Rear Shock Absorber Red |
| 9 | U09-D250000-0G0-00 | Rear Shock Absorber Green |
| 9 | U09-D250000-0B0-00 | Rear Shock Absorber Black |
| 10 | GBT005789032 | Hexagon Flange Bolt M10×1.25×55 |
| 11 | U09D23100003 | Rl A- Arm Red |
| 11 | U09D23100004 | Rl A- Arm Green |
| 11 | U09D23100005 | Rl A- Arm Black |
| 12 | U09D24100003 | Rr A-arm Red |
| 12 | U09D24100004 | Rr A-arm Green |
| 12 | U09D24100005 | Rr A-arm Black |
| 13 | GBT061832010 | Nut M12×1.25 |
| 14 | U09D20008001 | A- Arm Dust Cover |
| 15 | U09D20006001 | A- Arm Bushing |
| 16 | U09D10001001 | A- Arm Sleeve |
| 17 | GBT005789103 | Bolt M12×1.25×90 |
| 18 | U09D20003001 | U09 Rear Rocker Arm Liner 1 |
| 19 | GBT005789105 | Bolt M12×1.25×120 |
| 20 | U09D21100003 | Rl Upper A-arm Red |
| 20 | U09D21100004 | Rl Upper A-arm Green |
| 20 | U09D21100005 | Rl Upper A-arm Matte Black |
| 21 | U09D22100003 | Rr Upper A-arm Red |
| 21 | U09D22100004 | Rr Upper A-arm Green |
| 21 | U09D22100005 | Rr Upper A-arm Matte Black |
| 22 | U09D20005001 | Upper A-arm Sleeve |
| 23 | GBT005789106 | Bolt M12×1.25×145 |
| 24 | U09D20007001 | Upper A-arm Bushing |
| 25 | U09D20004001 | Rear Hub Lower Sleeve |
| 26 | GBT005789107 | Bolt M12×1.25×170 |
| 27 | U09D20010001 | Rl Hub Complete Assy |
| 27a | U09D20011001 | Rl Hub |
| 27b | JBT010238004 | Rear Hub Wheel Bearing |
| 27c | GBT000893006 | Wheel Bearing Circlip |
| 28 | U09D20020001 | Rr Hub Complete Assy |
| 28a | U09D20021001 | Rr Hub |
| 29 | U09D20001002 | Rear Brake Dust Shield |
| 30 | T03000007002 | Hexagon Socket Large Pan Head Bolt M6×16 |
| 31 | GBT008892004 | Nut M8 |
| 32 | T07000001007 | 90°grease Fitting |

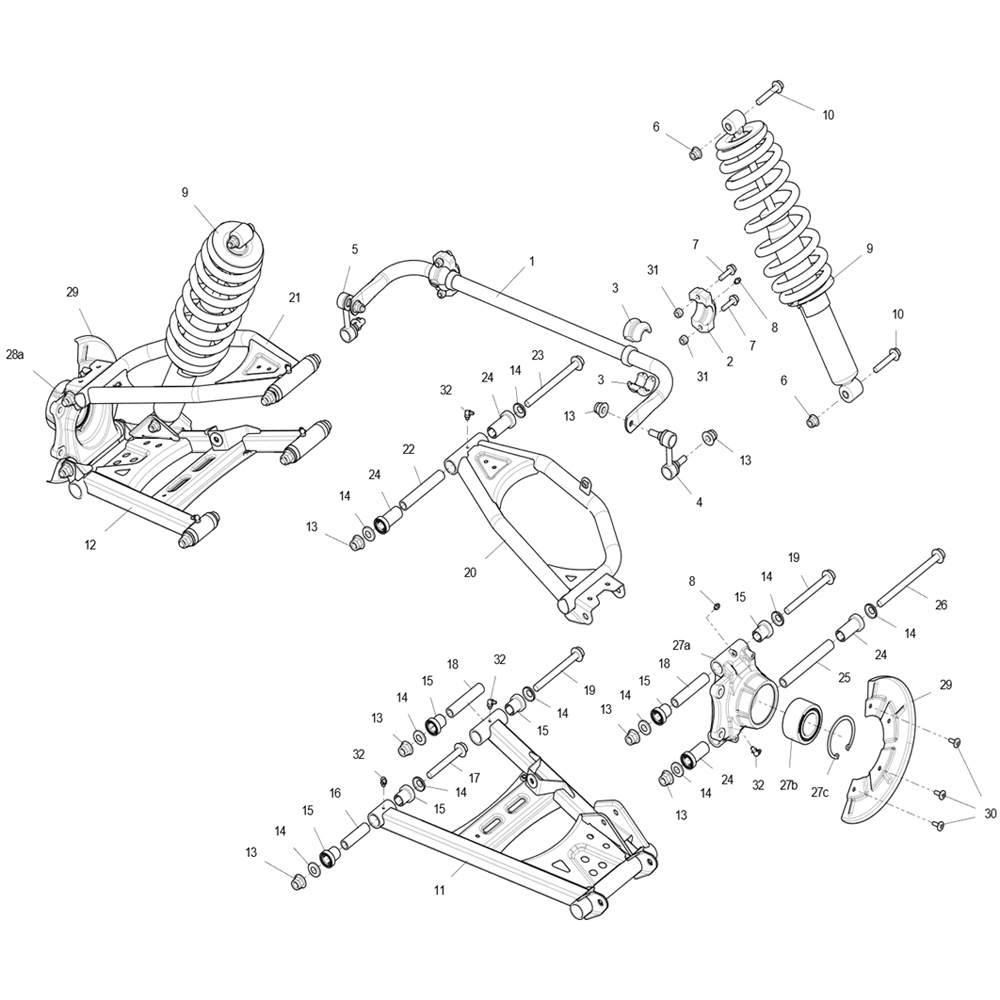

Diagram:
