Segway Fugleman UT10 Seat Assembly
CA$0.91
In stock
SKU
Segway Fugleman UT10 Seat Assembly
Segway Fugleman UT10 Seat Assembly Parts:
| No. | Part Number | Part Name |
| 1 | U09-K002001-0B0-00 | Headrest Assy |
| 2 | U01-K113000-0B0-00 | Rear Backrest Of Driver Seat |
| 2.1 | U01K11300001 | Rear Backrest Of Driver Seat |
| 3 | T03000007002 | Bolt M6×16 |
| 4 | T04000002001 | M6 Nut Clip |
| 5 | U01-K322000-000-00 | Passenger Rear Backrest Assy |
| 5.1 | U01K12200001 | Passenger Rear Backrest Assy |
| 6 | U01K11000001 | Driver Seat Assy |
| 7 | A02K01060001 | Cushion Position Buffer Glue |
| 8 | U01K12100001 | Passenger Seat Assy |
| 9 | GBT005789010 | Bolt M6*25 |
| 10 | T03000007001 | Bolt M6×20 |

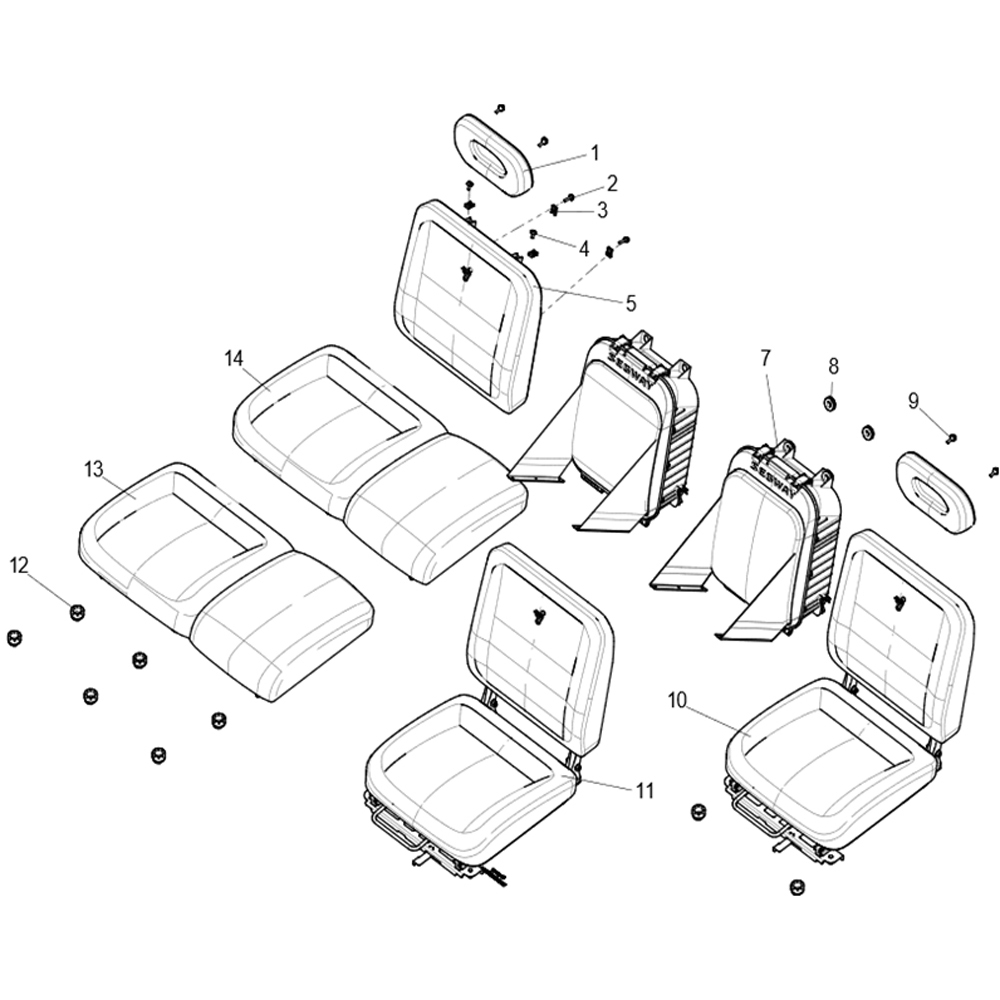

Segway Fugleman UT10 Seat Assembly Diagram:
