Segway Fugleman UT10 Steering System (EPS)
Segway Fugleman UT10 Steering System (EPS) Parts:
| No. | Part Number | Part Name |
| 1 | U09-F110001-000-00 | Steering Gear Assy |
| 2 | GBT005789037 | Bolt M10×1.25×95 |
| 3 | T05000001006 | Ribbon 5×250 |
| 4 | U01F12100001 | Steering Tie Rod |
| 4a | U01F12120001 | Tie Rod End Link |
| 4b | U01F12101001 | Dust Cover |
| 5 | GBT009459002 | Hexagon Slotted Thin Nut M12 |
| 6 | GBT000091008 | Cotter 3.2×25 |
| 7 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 8 | GBT005789096 | Bolt M8×25 |
| 9 | GB0000093004 | Washer 8 |
| 10 | U01F13200001 | Steering Shaft Complete Assy |
| 10a | U01F13210001 | Lower Steering Shaft |
| 10b | U01F13220001 | Upper Steering Shaft |
| 11 | GBT000276001 | Bearing 61804-2rs |
| 12 | S01F10002001 | Bolt M8 |
| 13 | U01F15001001 | Steering Column |
| 14 | GBT000818006 | Screw M5×20 |
| 15 | GBT000894008 | Circlip 20 |
| 16 | U01F16100001 | Steering Wheel |
| 17 | GBT061832006 | Nut M14×1.5 |
| 18 | U01F16001001 | Steering Wheel Upper Cover |
| 19 | A01L10025001 | 30*23 Logo Badge |
| 20 | U01M51000001 | Steering Wheel Logo |
| 20 | U01M51000002 | Horn/blinker Stalk (Epa) |
| 21 | T03000005004 | Horn/blinker Stalk (Eu) |
| 22 | U01F17100001 | Steering Column Adjusment Shock |
| 23 | GBT061831002 | Nut M6 |
| 24 | GBT008191004 | Screw M6×14 |
| 25 | GBT005789017 | Hexagon Flange Bolt M8×30 |
| 26 | U05F13001001 | Eps Connection Sleeeve |
| 27 | U01F13100001 | Eps Motor |
| 28 | U09M06100002 | Eps Controller |
| 29 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 30 | U05F13002002 | Eps Mounting Plate |
| 31 | GBT000701014 | Screw M8×16 |
| 32 | GBT005789014 | Hexagon Flange Bolt M8×16 |

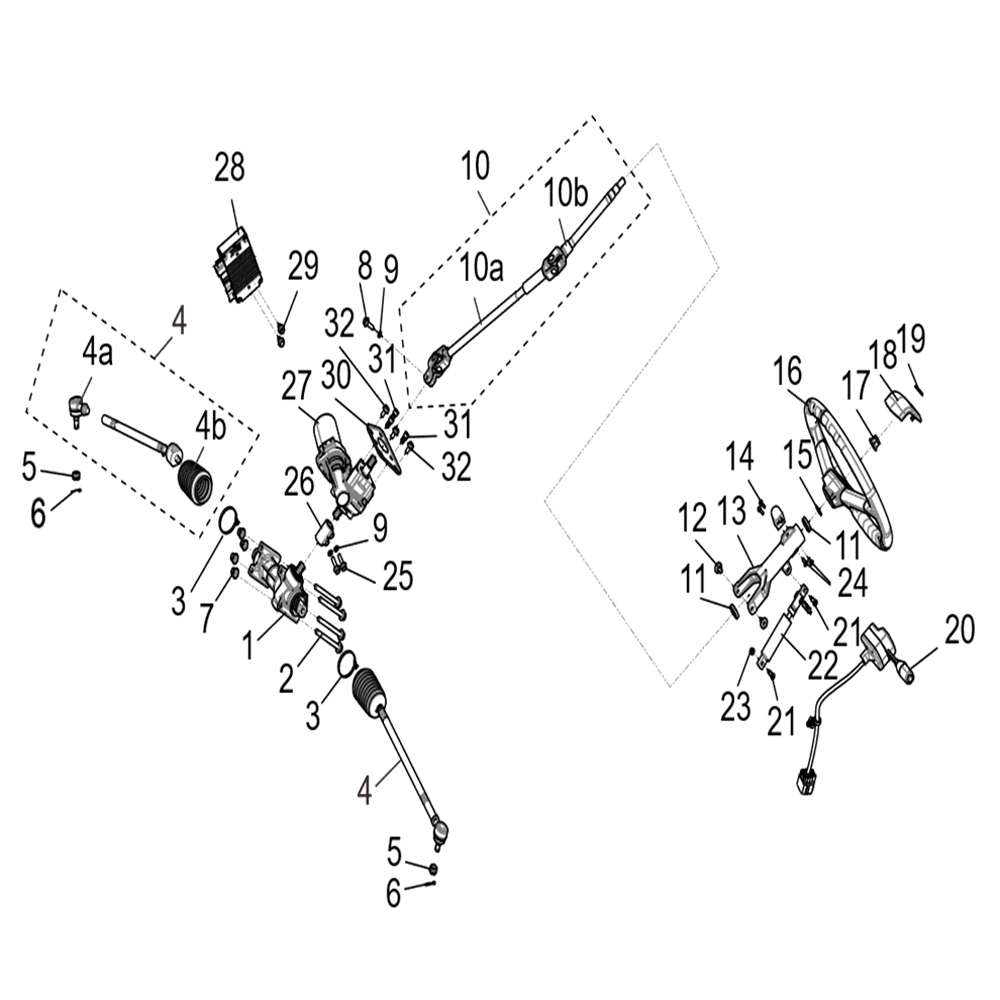

Diagram:
