Segway Fugleman UT10 Top Beam Assembly
CA$0.91
In stock
SKU
Segway Fugleman UT10 Top Beam Assembly
Segway Fugleman UT10 Top Beam Assembly Parts:
| No. | Part Number | Part Name |
| 1 | U01C15000003 | Top Beam Lower Left Weld Assy-red |
| 1 | U01C15000004 | Top Beam Lower Left Weld Assy-green |
| 1 | U01C15000005 | Top Beam Lower Left Weld Assy-black |
| 2 | U01C16000003 | Top Beam Lower Right Weld Assy-red |
| 2 | U01C16000004 | Top Beam Lower Right Weld Assy-green |
| 2 | U01C16000005 | Top Beam Lower Right Weld Assy-black |
| 3 | GBT005789015 | Hexagon Flange Bolt M8×20 |
| 4 | GBT005789029 | Hexagon Flange Bolt M10×1.25×40 |
| 5 | U01C11000003 | Left A-pillar Weld Assy-red |
| 5 | U01C11000004 | Left A-pillar Weld Assy-green |
| 5 | U01C11000005 | Left A-pillar Weld Assy-black |
| 6 | U01C12000003 | Right A-pillar Weld Assy-red |
| 6 | U01C12000004 | Right A-pillar Weld Assy-green |
| 6 | U01C12000005 | Right A-pillar Weld Assy-black |
| 7 | U01C14000003 | Top Beam Rear Weld Assy-red |
| 7 | U01C14000004 | Top Beam Rear Weld Assy-green |
| 7 | U01C14000005 | Top Beam Rear Weld Assy-black |
| 7.1 | U01-C140000-FR0-00 | Top Beam Rear Weld Assy-red |
| 7.1 | U01-C140000-FG0-00 | Top Beam Rear Weld Assy-green |
| 7.1 | U01-C140000-FB0-00 | Top Beam Rear Weld Assy-black |
| 8 | U05C00001003 | A-pillar Lower Rignt Soleplate-red |
| 8 | U05C00001004 | A-pillar Lower Rignt Soleplate-green |
| 8 | U05C00001005 | A-pillar Lower Rignt Soleplate-black |
| 9 | U05C00002003 | A-pillar Lower Left Soleplate-red |
| 9 | U05C00002004 | A-pillar Lower Left Soleplate-green |
| 9 | U05C00002005 | A-pillar Lower Left Soleplate-black |
| 10 | GBT000701005 | Screws M10×1.25×35 |
| 11 | U01C13000003 | A-pillar Connection Weld Assy-red |
| 11 | U01C13000004 | A-pillar Connection Weld Assy-green |
| 11 | U01C13000005 | A-pillar Connection Weld Assy-black |
| 12 | U01C10001002 | Top Bar Rear Lower Support Pipe |
| 13 | GBT005789025 | Hexagon Flange Bolt M10×1.25×20 |
| 14 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 15 | U01C10010001 | Passenger Handle Assy |
| 16 | GBT000701019 | Screw M8×25 |
| 17 | GBT005789028 | Bolt M10×1.25×35 |
| 18 | GBT061852001 | Nut M10×1.25 |
| 19 | U01C14380002 | B-pillar Lower Connecting Pipe |
| 19 | U01-C014380-DB0-00 | B-pillar Lower Connecting Pipe |
| 20 | GBT005789027 | Hexagon Flange Bolt M12×1.25×30 |

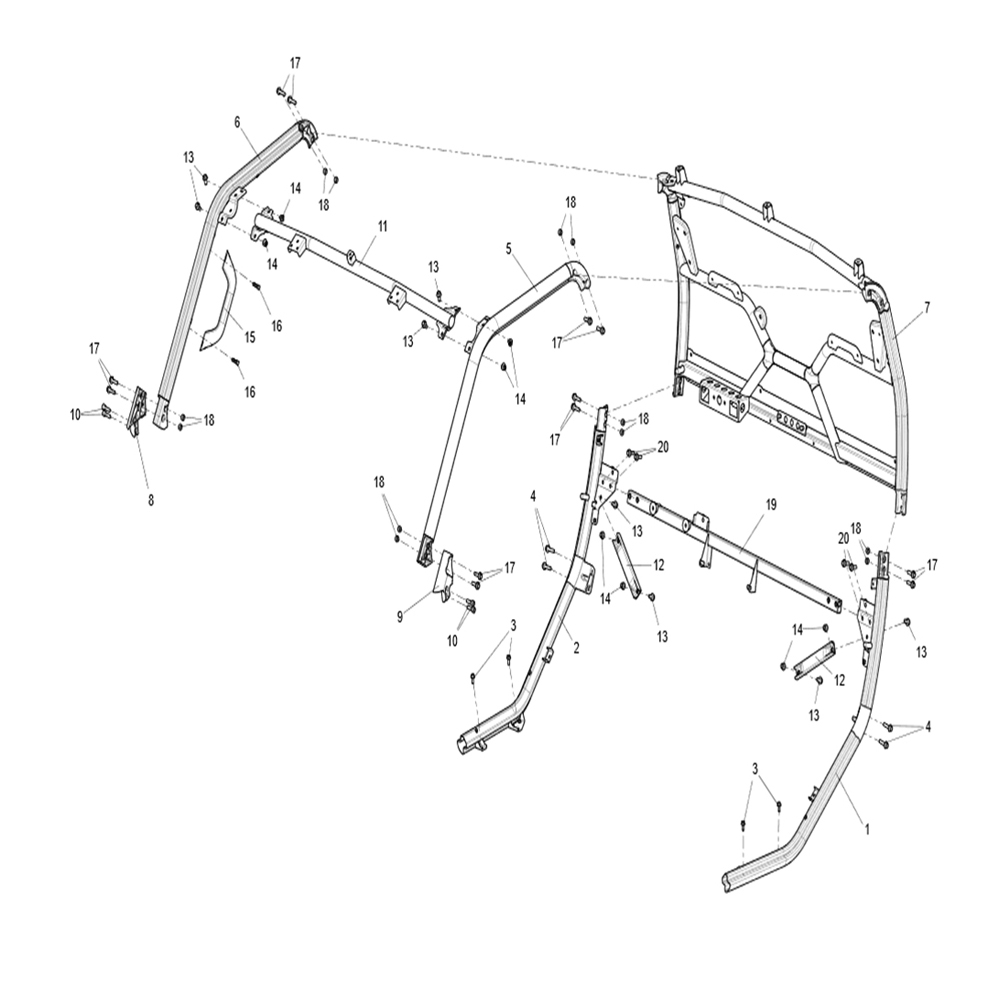

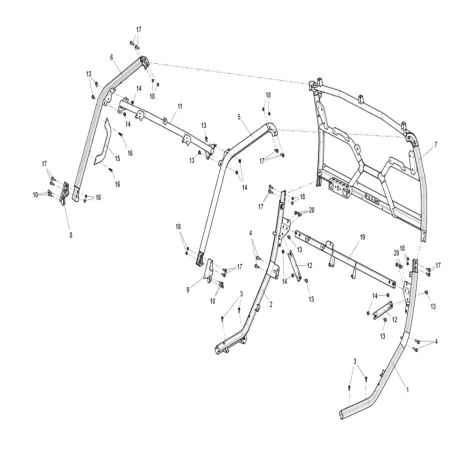

Diagram:
