Segway Fugleman UT10 Winch Assembly
Segway Fugleman UT10 Winch Assembly Parts:
| No. | Part Number | Part Name |
| 1 | U01M05601001 | U01 Winch Drawstring |
| 2 | U01M05600001 | I01 Winch Hook |
| 3 | U01M05602001 | I01 Winch Rubber Pad |
| 4 | U01M05700001 | U01 Winch Guide Wheel |
| 5 | U01M05100001 | 3500lbs Winch Motor |
| 5 | U01M05100003 | 4500lbs Winch Motor |
| 6 | U01M05400001 | U01 Winch Motor Line |
| 7 | U01M05500001 | I01 Winch Power Cord |
| 8 | U01M05800001 | I01 Winch Relay |
| 9 | U01M05200001 | U01 Winch Switch |
| 10 | U01M05300001 | U01 Winch Switch Socket Black |
| 11 | U01M05900001 | U01 Winch Wireless Controller |
| 12 | GBT005789016 | Bolt M8×25 |
| 13 | GBT005789025 | Bolt M10×1.25×20 |
| 14 | GBT005789010 | Bolt M6×25 |
| 15 | GBT000845009 | Screw St4.2×13 |
| 16 | U01M05120001 | U01 3500lbs Winch Steel Rope |
| 16 | U01M05130001 | U01 4500lbs Winch Steel Rope |
| 17 | U01M05000003 | U01 3500lbs Winch Assy Remote-control |
| 17 | U01M05000004 | U01 4500lbs Winch Assy Remote-control |
| 18 | U01M05000001 | U01 3500lbs Winch Assy |
| 18 | U01M05000002 | U01 4500lbs Winch Assy |

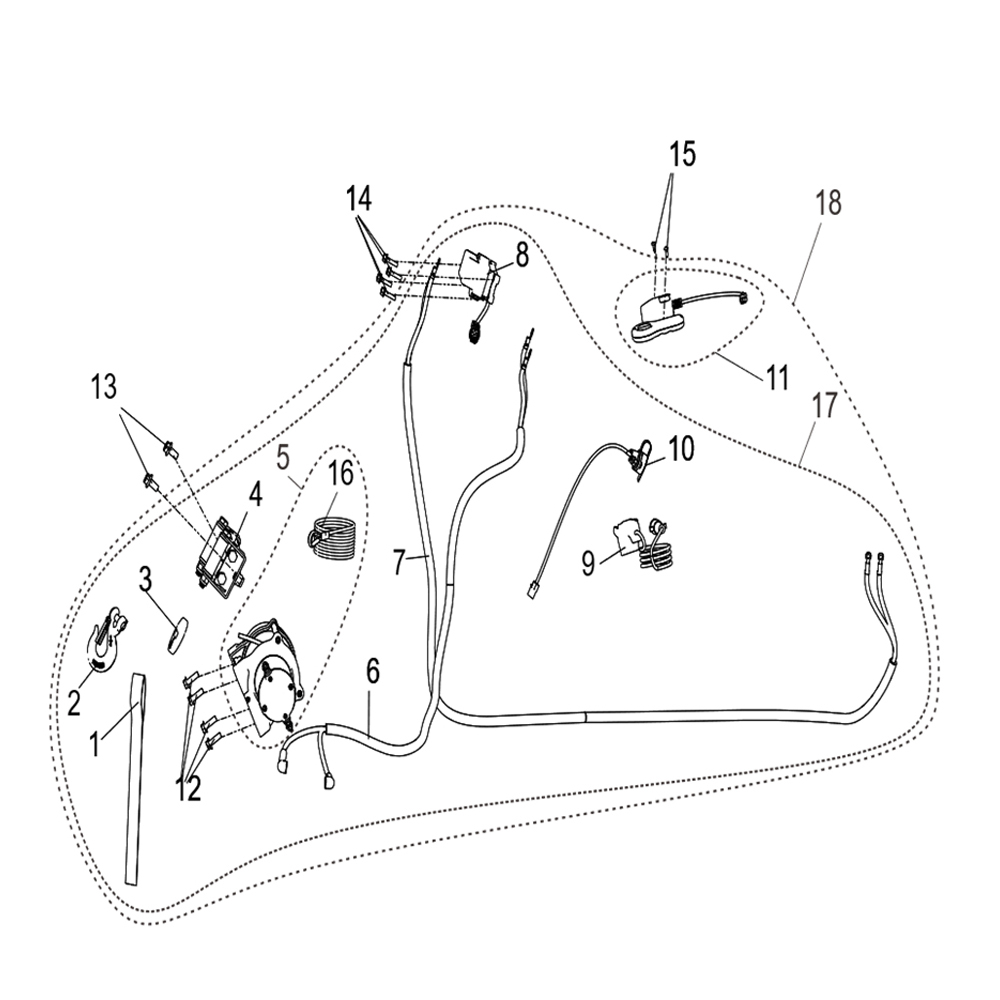

Segway Fugleman UT10 Winch Assembly Diagram:
