Segway SSV 72 Inch Widened Fender Assembly
CA$0.91
In stock
SKU
Segway SSV 72 Inch Widened Fender Assembly
Segway SSV 72 Inch Widened Fender Assembly Parts:
| No. | Part Number | Part Name |
| 1 | S05-H115110-0B0-01 | Fl Fender(Wide) |
| 2 | S05-C013000-DB0-00 | Fl Fender Bracket |
| 3 | S05-C014000-DB0-00 | Fr Fender Bracket |
| 4 | S05-H115120-0B0-01 | Fr Fender(Wide) |
| 5 | T03000007002 | Bolts M6×16 |
| 6 | T03000007001 | Bolts M6×20 |
| 7 | T04000003001 | Expansion Buckle Component |
| 8 | GBT005789007 | Bolts M6×16 |
| 9 | S05-H114000-0B0-02 | Rr Fender(Wide) |
| 10 | S05-H113000-0B0-02 | Rl Fender(Wide) |
| 11 | GBT005789130 | Bolts M8×16 |
| 12 | S05-C015000-DB0-00 | Fl Fender Clamp |
| 13 | S05-C016000-DB0-00 | Fr Fender Clamp |
| 14 | S05-H115119-000-00 | Front Fender Clamp Pad |
| 19 | S01C06202002 | Front Fender Bushing |
| 20 | S01-C062012-DB0-00 | Fr Fender Bracket |
| 21 | S01-C062011-DB0-00 | Fl Fender Bracket |

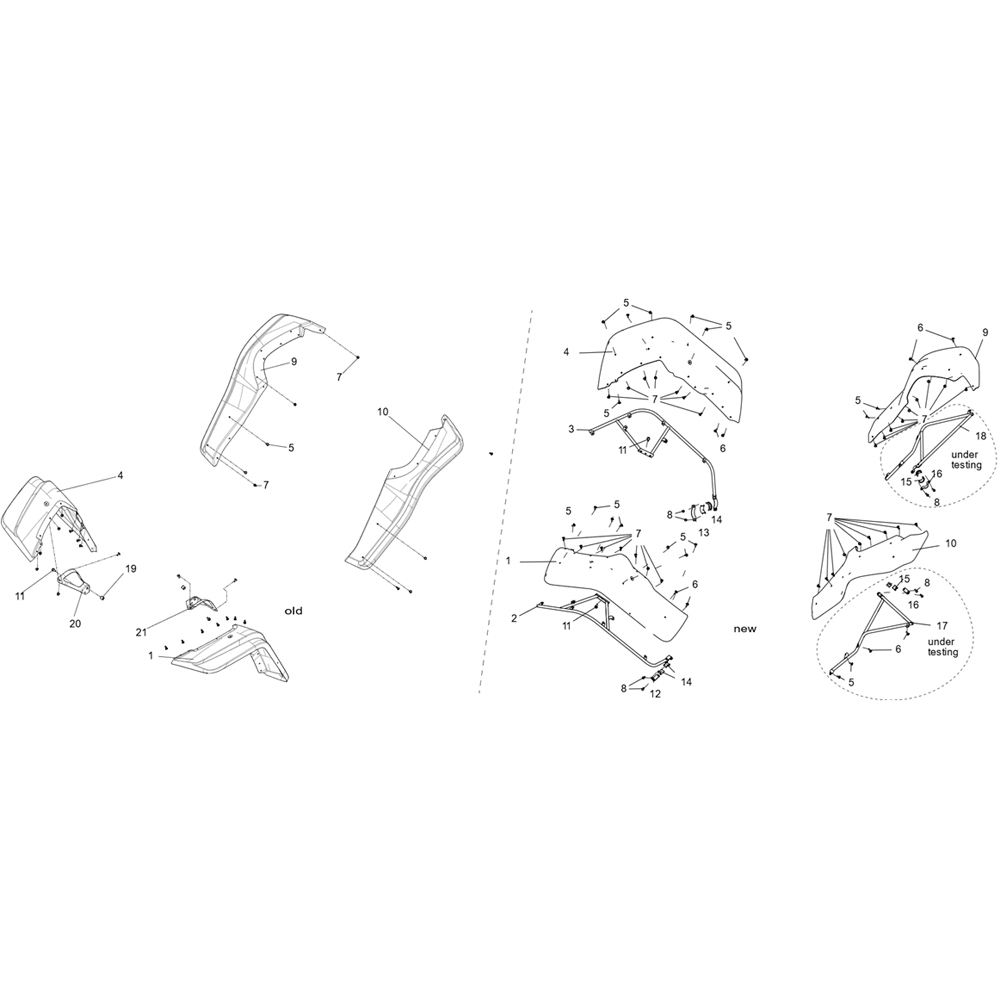

Segway SSV 72 Inch Widened Fender Assembly Diagram:
