Segway SSV Brake System (Wide Vehicle Version)
Segway SSV Brake System (Wide Vehicle Version) Parts:
| No. | Part Number | Part Name |
| 1 | S05-E15B000-000-02 | Front Right Brake Assembly |
| 2 | S05E15C50001 | S05_braek Pad Clip |
| 3 | S05E15C60001 | S05_braek Pad Clip a |
| 6 | S03E15A20002 | Front Brake Pad Assembly |
| 7 | A03E11012001 | Gasket |
| 8 | A03E11011001 | Oil Bolt |
| 9 | S05E15100002 | S05_front Brake Hose |
| 11 | S05-E15A000-000-02 | Front Left Brake Assembly |
| 10 | S05E15E00001 | S05_hydraulic Sensor Switch |
| 12 | S03E15F00001 | S03_foot Brake Main Pump Assembly |
| 13 | S05E15200002 | S05_rear Brake Hose |
| 14 | S05-E15D000-000-A1 | S05_rear Right Brake Assembly |
| 15 | S05-E15C200-000-00 | S05_rear Brake Pad Assembly |
| 16 | S05-E15C000-000-A1 | S05_rear Left Brake Assembly |
| 17 | S05-E150000-000-B2 | S05_hydraulic Brake Assy（wide) |
| 18 | S03E10100001 | S03_front Brake Disc_φ262×5 |
| 19 | A03E10004001 | Bolt,front Brake Disc |
| 20 | GBT005789026 | Bolt M10×1.25×25 |
| 21 | GBT061771002 | Hexagon Flange Nut M5 |
| 22 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 23 | GBT000701010 | Hexagon Socket Head Screw M6×16 |
| 24 | GBT005789016 | Hexagon Flange Bolt M8×25 |
| 25 | T05000001002 | Bondi Pipeline Clamp |
| 26 | T05000001004 | Fir Tree Type Positioning Cable Tieφ7×180 |
| 27 | S01E12120002 | S01_brake Pedal Mounting Bas(Black) |
| 28 | GBT005789015 | Hexagon Flange Bolt M8×20 |
| 29 | GBT061852001 | Nut M10×1.25 |
| 30 | GB0000093005 | Spring Washer 10 |
| 31 | GBT000971005 | Flat Washer a Grade 10 |
| 32 | A03E12201001 | Nylon Bushing |
| 33 | U01E12004001 | U01_lining Sleeve |
| 34 | S01E12110002 | S01_weld Brake Pedal(Black) |
| 35 | U01E12003001 | U01_rear Brake Pedal Return Spring |
| 36 | GBT000701008 | Hexagon Socket Head Screw M10×1.25×65 |
| 37 | S01E10200001 | S01_double Wire Clamp a |

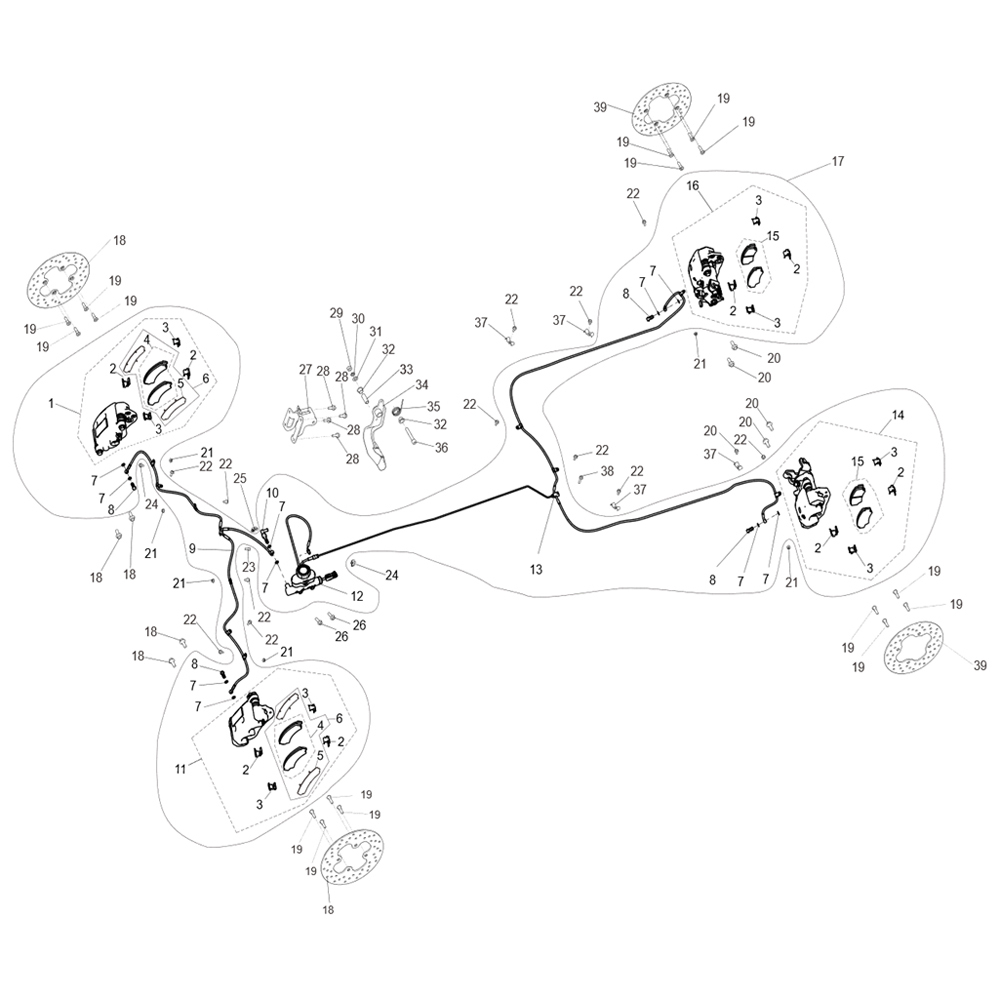

Segway SSV Brake System (Wide Vehicle Version) Diagram:
