Segway SSV Central Rubber and Plastic Parts
CA$0.91
In stock
SKU Segway SSV Central Rubber and Plastic Parts
Segway SSV Central Rubber and Plastic Parts Parts:
| No. |
Part Number |
Part Name |
| 1 |
S01H12700001 |
Transmission Shaft Left Cover |
| 2 |
S01H13700001 |
Right Guard Lining |
| 3 |
S01H14100001 |
Battery Maintenance Cover |
| 4 |
S01-H135000-PW2-00 |
Right Guard Plate (Frosted Silver) |
| 4 |
S01-H135000-PH1-00 |
Right Guard Plate (Silver Gray) |
| 5 |
S01H13400001 |
Right Guard |
| 6 |
S01H10001001 |
Insulation Paper for Left Back Panel |
| 7 |
S01H12800001 |
Transmission Shaft Right Cover |
| 8 |
S01-H166000-0B0-00 |
Rear Bottom Plate |
| 9 |
S01-H113000-0B0-00 |
Fuel Filler Cap |
| 10 |
S01-H112010-0B0-00 |
Charging Cover |
| 11 |
S01H13100001 |
Center Guard |
| 12 |
S01-H133000-PW2-00 |
Left Guard Plate (Frosted Silver) |
| 12 |
S01-H133000-PH1-00 |
Left Guard Plate (Silver Gray) |
| 13 |
S01H14700002 |
Air-inlet Grille Red |
| 13 |
S01H14700003 |
Air-inlet Grille Green |
| 14 |
S01H20900001 |
Safety Belt Rubber Cover |
| 15 |
S01H22200001 |
Battery Buffer Block |
| 16 |
S01H21600001 |
Foam Cushion |
| 17 |
S01-H197000-0B0-00 |
Fuel Filler Fender |
| 18 |
S05-H166001-0B0-00 |
Front Floor Guard |
| 19 |
S01H14000001 |
Air Filter Maintenance Cover |
| 20 |
S01H13600001 |
Left Guard Lining |
| 21 |
S01H13200001 |
Left Guard |
| 22 |
S03H19900001 |
Foot Pedal Connecting Plate |
|
| No. |
Part Number |
Part Name |
| 23 |
S03H19600001 |
Charging Port Mudguard |
| 24 |
S03H18800001 |
Gasoline Pump Maintenance Cover |
| 25 |
S05-H146000-0B0-01 |
Cargo Box Front Cover |
| 26 |
S05H10300001 |
Shift Trim Cover Skateboard |
| 27 |
S05-H139000-0B0-00 |
Right Back Panel |
| 28 |
S05H10200001 |
S05_shift Trim Cover_pp_black_leather Pattern |
| 29 |
S05-H138000-0B0-00 |
Left Back Panel |
| 30 |
S05-H101240-0B0-00 |
Left Foot Pedal |
| 31 |
S05-H101980-0B0-00 |
Right Foot Pedal |
| 32 |
U01H22001001 |
Pedal Screw Cover Pp Black |
| 33 |
T01000006001 |
Rectangular Magnet S 20×10×5 |
| 34 |
T01000006002 |
Rectangular Magnet N 20×10×5 |
| 35 |
T04000002003 |
4.2 Self-tapping Screw Splint |
| 36 |
T04000002001 |
M6 Nut Clip |
| 37 |
T04000003001 |
Expansion Buckle Component |
| 38 |
T03000007002 |
Hexagon Socket Mushroom Head Screw |
| 39 |
T01000002001 |
Rubber Ring |
| 40 |
GBT000846001 |
Screw St2.9×13 |
| 41 |
GBT000845009 |
Screw St4.2×13 |
| 42 |
GBT000961001 |
Large Washers a Grade 5 |
| 43 |
GBT000845005 |
Cross Head Screws St4.2×13 |
| 44 |
S05-H100022-000-00 |
Right Insulation Paper of Mid-Guard |
| 45 |
S05-H100020-000-00 |
Insulation Paper of Mid-Guard |
| 46 |
S05-H100021-000-00 |
Left Insulation Paper of mid-guard |
| 47 |
S05-H200005-000-00 |
Insulation Paper of Shaft Left Cover |
|

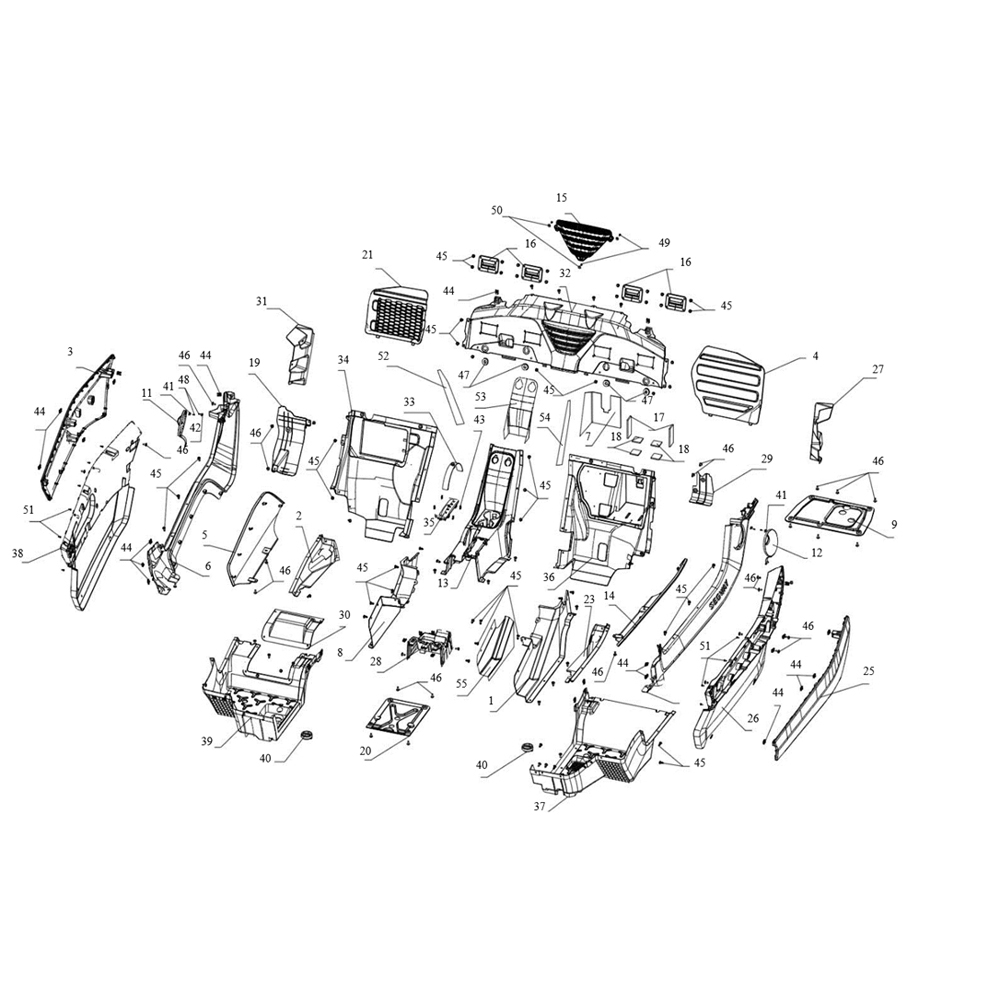

Segway SSV Central Rubber and Plastic Parts Diagram:
