Name: Segway SSV Cooling System
Price: 0.91 CAD
Availability: InStock

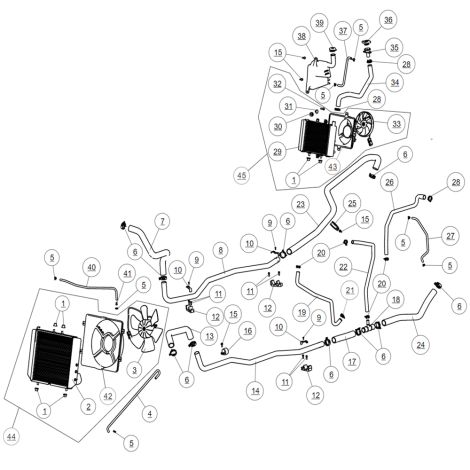

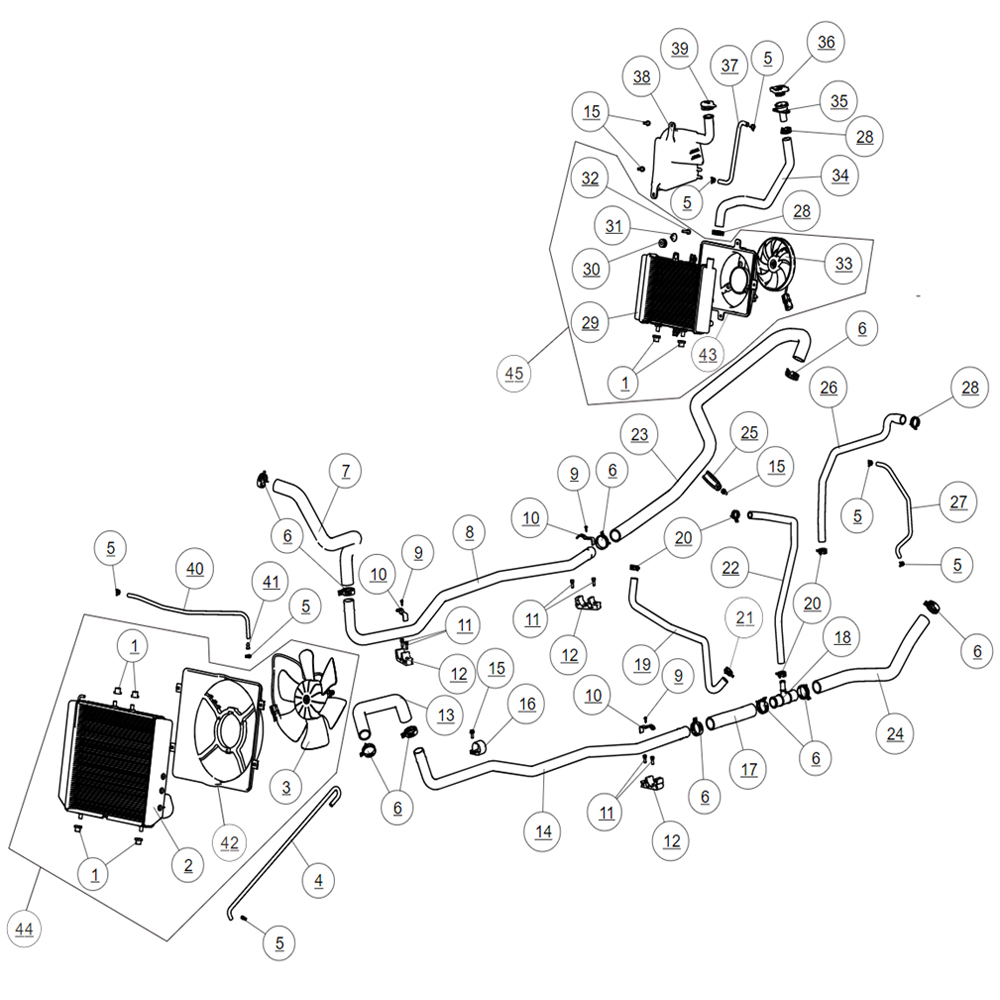

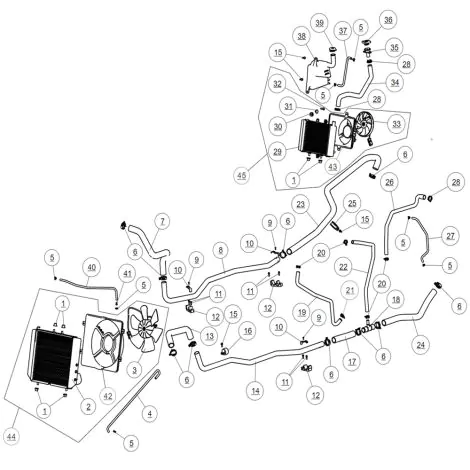

Segway SSV Cooling System Parts:

No.	Part Number	Part Name
1	S01A40103001	Motor Radiator T-bushing Lower
2	S05-A400101-000-00	Radiator Body
3	S05-A400102-000-00	Fan Motor Assy
4	A02A10002001	Rear Axle Snorkel
5	QCT006211003	Steel Belt Elastic Hose Clamp 11
6	BQ006211-03815-Z01	Steel Belt Elastic Hose Clamp 38
7	S03-A400101-000-00	Drive Motor Water Outlet Hose
8	S03A42600001	Engine Water Outlet Aluminum Pipe
9	GBT000845009	Cross Recessed Pan Head Tapping Screws St4.2×13
10	S03C02200002	Water Pipe Snap Positioning Plate
11	GBT000701010	Hexagon Socket Head Screw M6×16
12	S03H20500001	Water Pipe Buckle
13	S03-A400131-000-00	Engine Radiator Water Inlet Hose
14	S03-A400401-000-00	Engine Water Intake Aluminum Pipe
15	GBT005789007	Hexagon Flange Bolt M6×16
16	T05000080002	32 Clamp
17	S05A41000001	Engine Front Water Inlet Hose
18	S01A42500001	Engine Radiator Tee
19	S05A41400001	Oil Cooling Water Outlet Pipe
20	QCT006211009	Steel Belt Elastic Hose Clamp 22
21	QCT006211015	Steel Belt Elastic Hose Clamp 20
22	S03A43600001	Oil Radiator Water Outlet Hose

No.	Part Number	Part Name
23	S05A40900001	Engine Water Outlet Hose
24	S05A41300002	Engine Rear Water Inlet Hose
25	T05000007001	Adhesive Strip Assembly 38
26	S05A42800001	Engine Exhaust Pipe
27	S03A42900001	Exhaust Pipe
28	QCT006211007	Steel Belt Elastic Hose Clamp 28
29	S05-A400201-000-00	Oil Radiator Body
30	S01A40105001	S01_motor Radiator Mounting Bushing
31	S01A40106001	S01_motor Radiator Installation T-shaped Sleeve
32	GBT005789010	Hexagon Flange Bolt M6×25
33	S05-A400202-000-00	Oil Radiator Fan
34	S05A41500001	S05_water Inlet Connecting Hose
35	S01A40300001	Water Filler Body
36	A01A41110002	Cover Gp-water Fill
37	S03A42300001	Overflow Pipe
38	S05A40200001	Sub-tank Assembly
39	U01A43042001	Auxiliary Tank Cover
40	S03A43900001	Engine Radiator Breather
41	S05A20904001	Cvt Outlet Pipe Drain Plug
42	S05-A400103-000-00	Engine Radiator Cowl
43	S05-A400203-000-00	Oil Radiator Cowl
