Segway SSV Crankcase sub-assembly
CA$0.91
In stock
SKU
Segway SSV Crankcase sub-assembly
Segway SSV Crankcase sub-assembly Parts:
| No. | Part Number | Part Name |
| 1 | F01000017001 | Bolt M8×40 |
| 2 | F01000007001 | Bolt M6×35 |
| 3 | F02C11003001 | Bolt M6×75 |
| 4 | GBT001192001 | Dowel Pin 6×10 |
| 5 | F02C11010001 | Bolt M10×1.25×110 |
| 6 | F02C11004001 | Bolt M8×90 |
| 7 | E02-C110000-000-00 | Crankcase Combination |

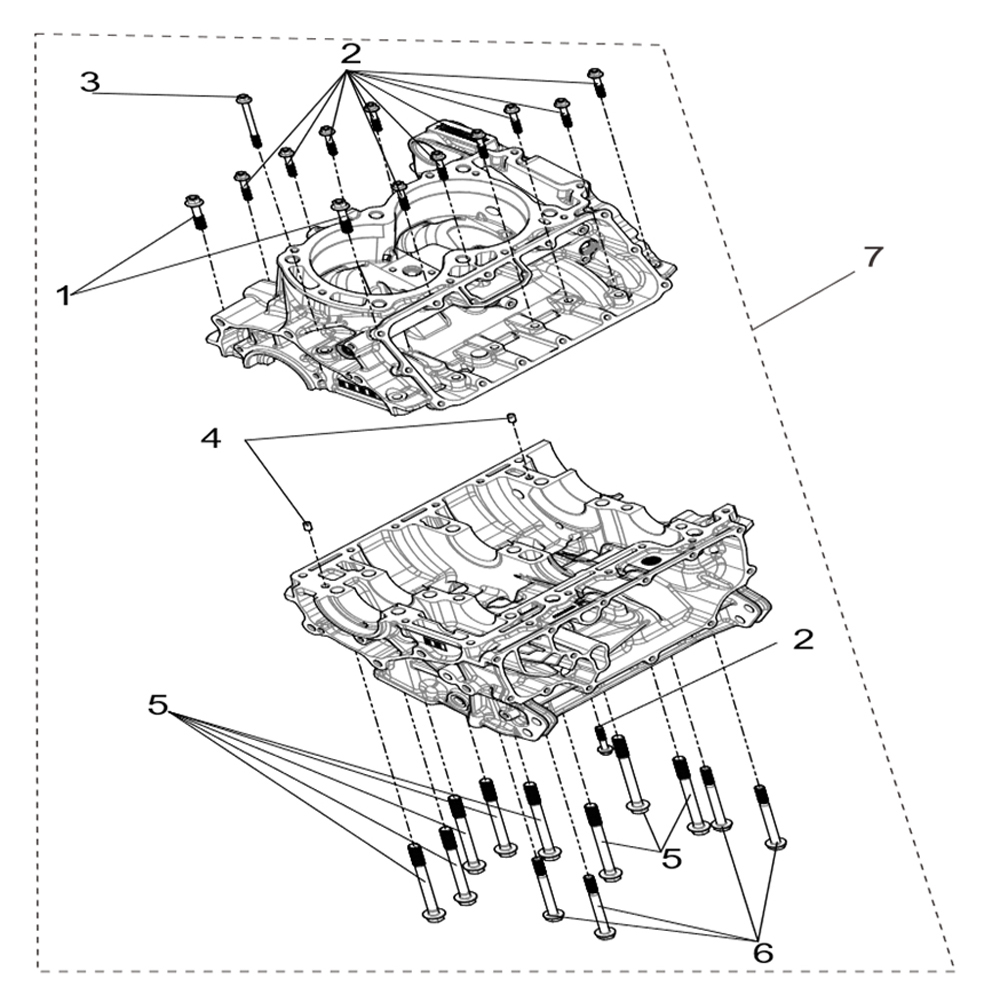

SSegway SSV Crankcase sub-assembly Diagram:
