Segway SSV Cvt Box Parts:
| No. | Part Number | Part Name |
| 1 | E02-C300002-000-01 | Cvt Inner Cover Sealing Ring Ⅱ |
| 2 | E02-C300001-000-01 | Cvt Inner Cover Sealing Ring Ⅰ |
| 3 | E02-C310002-000-03 | Cvt Inner Cover Assembly |
| 4 | F02H00006001 | O-ring Seal 8×2 |
| 5 | E02C30007001 | Cvt Temperature Sensor Plug Assembly |
| 6 | F01000004001 | Bolt M6×20 |
| 7 | E02C30005001 | Cvt Cover Plug |
| 8 | F01C30004001 | Cvt Cover Plug Seal |
| 9 | F01000014001 | Bolt M6×28 |
| 10 | E02C30003001 | Cvt Cover Seal |
| 11 | E02-C311001-000-01 | Baffle |
| 12 | F01000015001 | Bolt M8×30 |
| 13 | E02-C320003-000-00 | Cvt Cover Assembly |
| 14 | F01C30005001 | Cross Recessed Hexagon Screw St4.8×16 |
| 15 | E02-C312005-000-00 | Cvt Cover Inner Baffle(Cvtech) |
| 16 | GBT000845014 | Cross Recessed Hexagon Screw St4.8×16 |

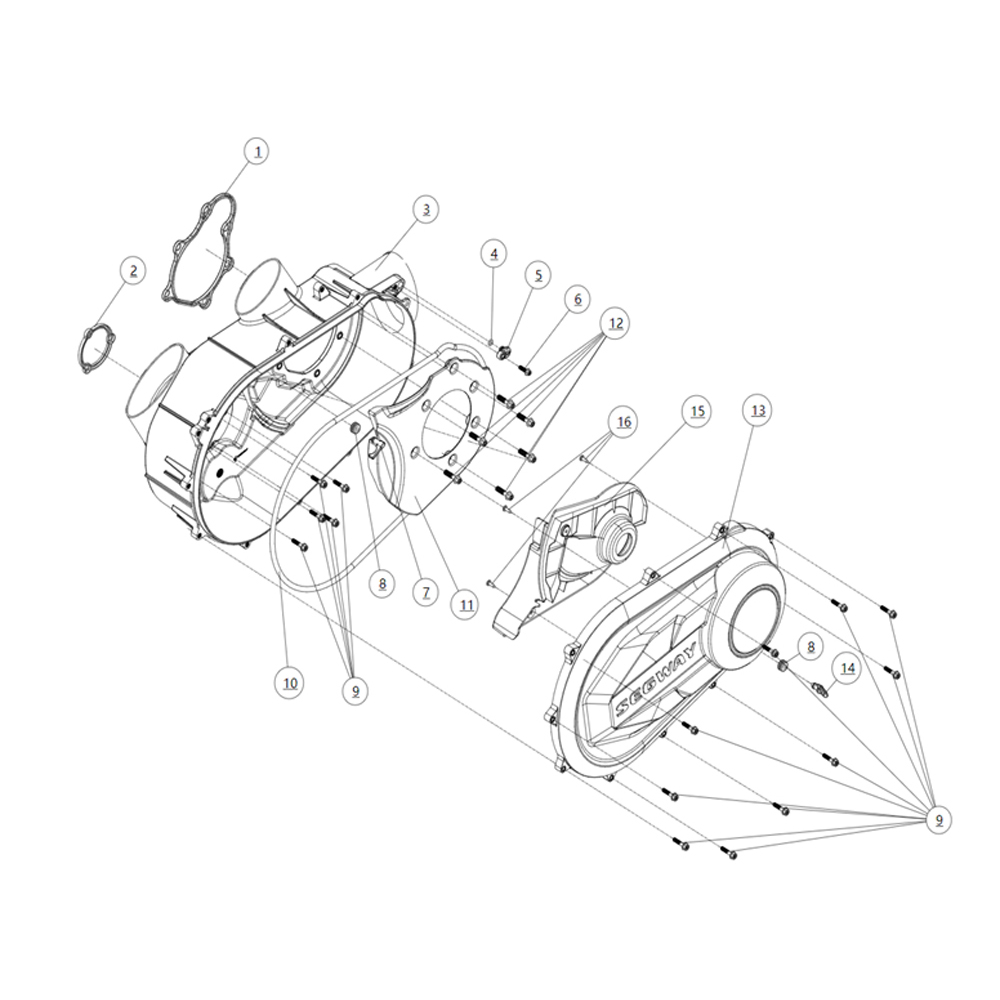

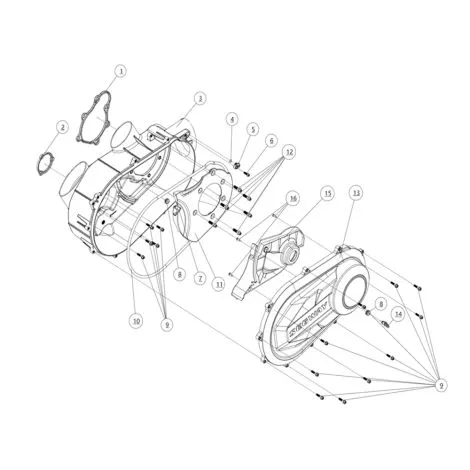

Segway SSV Cvt Box Diagram:
