Segway SSV Cvtech Vulnerable Parts
Segway SSV Cvtech Vulnerable Parts:
| No. | Part Number | Part Name |
| 1 | E02-E101000-000-00 | Fixed Disc |
| 2 | E02-E101001-000-00 | Gasket |
| 3 | E02-E101002-000-00 | Bearing |
| 4 | E02-E101003-000-00 | Spring Bearing Gasket |
| 5 | E02-E102001-000-00 | Rotating Disc |
| 6 | E02-E102002-000-00 | Spring Seat |
| 7 | E02-E102003-000-00 | Speed Limiting Washer |
| 8 | E02-E102004-000-00 | Spring (200-900n) |
| 9 | E02-E102005-000-00 | Spring Cover |
| 10 | E02-E102006-000-00 | Bolt |
| 12 | E02-E103001-000-00 | Housing |
| 13 | E02-E103002-000-00 | Counterweight (47.7g) |
| 14 | E02-E102007-000-00 | Thrust Disc |
| 15 | E02-E102008-000-00 | Washer |
| 16 | E02-E102009-000-00 | Nut (Left-hand Rotation) |
| 17 | E02-E201000-000-00 | Fixed Disc |
| 18 | E02-E202000-000-00 | Rotating Disc |
| 19 | E02-E202001-000-00 | Ball |
| 20 | E02-E202002-000-00 | Washer |
| 21 | E02-E202003-000-00 | Outer Locking Ring |
| 22 | E02-E203001-000-00 | Spring (1200-1481n) |
| 23 | E02-E203002-000-00 | Spring Seat |
| 24 | E02-E203003-000-00 | Spring Support |
| 25 | E02-E203004-000-00 | Outer Locking Ring |
| 26 | E02-E203005-000-00 | Front Slideway |

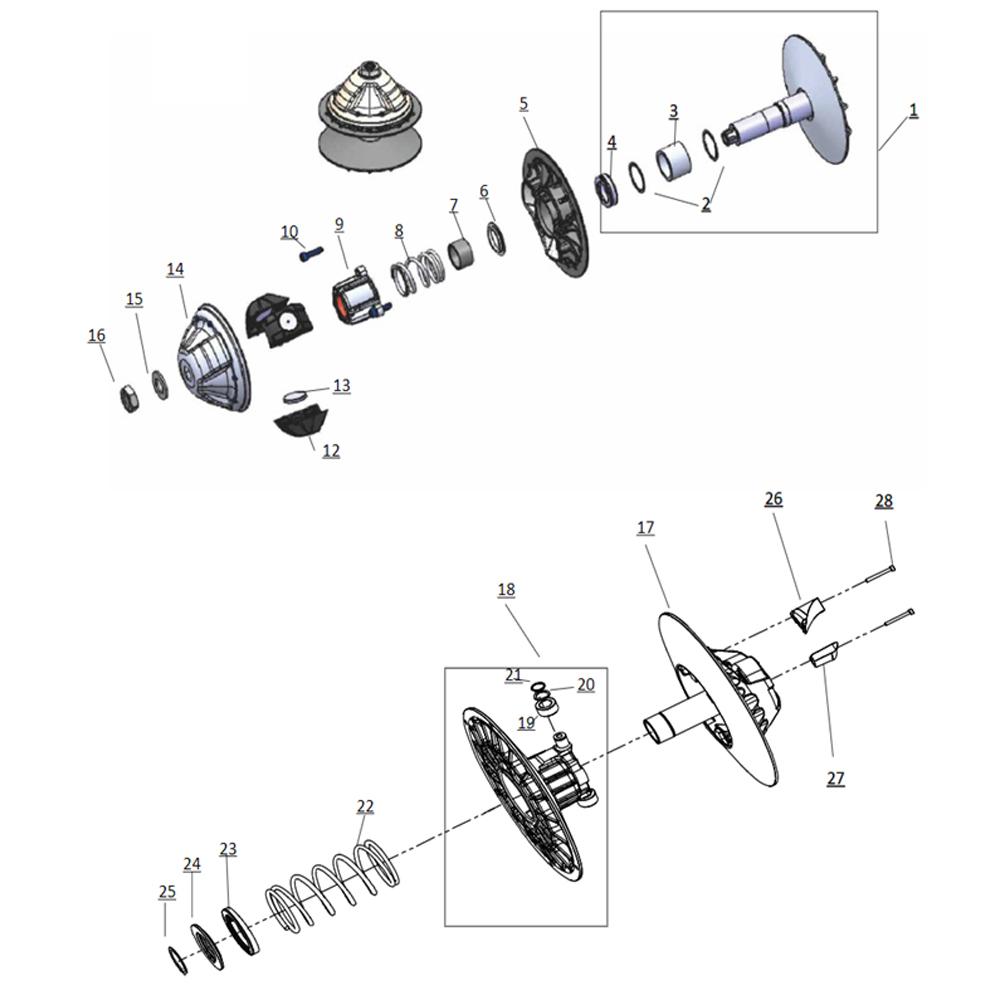

Segway SSV Cvtech Vulnerable Parts Diagram:
