Segway SSV Door Combination
CA$0.91
In stock
SKU
Segway SSV Door Combination
Segway SSV Door Combination Parts:
| No. | Part Number | Part Name |
| 1 | S01H15200002 | Right Door Panel (White) |
| 1 | S01H15200003 | Right Door Panel (Black) |
| 1 | S01H15200005 | Right Door Panel (Grey) |
| 1 | S05-H152000-PB2-00 | Right Door Panel (Matt Black) |
| 2 | T04000002001 | M6 Nut Clip |
| 3 | S05-C019002-000-00 | Right Door Lock Assembly |
| 4 | T03000007002 | Hexagon Socket Mushroom Head Screw |
| 5 | S01-C020120-DB0-00 | Right Door Bracket Assembly |
| 6 | GBT000971001 | Gasket 8 |
| 7 | GBT005789015 | Hexagon Flange Bolt M8×20 |
| 8 | S01C01600001 | Door Hinge Assembly |
| 9 | GBT005789016 | Bolt M8×25 |
| 10 | S05-H150000-0B0-00 | Right Door Lining |
| 11 | GBT000845005 | Screws St4.2×13 |
| 12 | S01C01531001 | Right Door Armrest |
| 13 | S01H20700001 | Door Cushion Rubber |
| 14 | S05C00000122 | Right Door Combination (White) |
| 14 | S05C00000123 | Right Door Combination (Black) |
| 14 | S05-C000125-000-00 | Right Door Combination (Grey) |
| 15 | S05C00000112 | Left Door Combination (White) |
| 15 | S05C00000113 | Left Door Combination ( Black) |
| 15 | S05-C000115-000-00 | Left Door Combination (Grey) |
| 16 | S05-H149000-0B0-00 | Left Door Lining |
| 17 | S01-C020110-DB0-00 | Left Door Bracket Assembly |
| 18 | S05-C018002-000-00 | Left Door Lock Assembly |
| 19 | S01H15100002 | Left Door Panel (White) |
| 19 | S01H15100003 | Left Door Panel (Black) |
| 19 | S01H15100005 | Left Door Panel (Grey) |

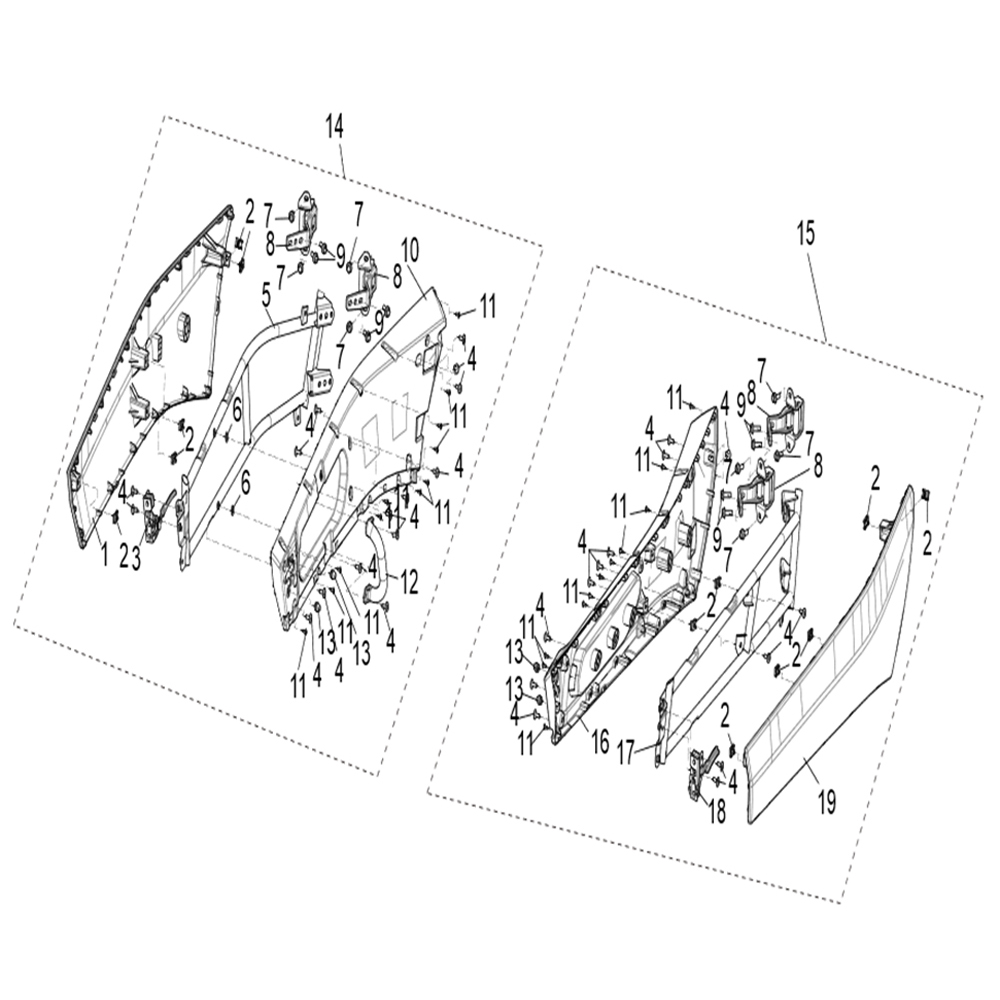

Segway SSV Door Combination Diagram:
