Segway SSV EFI System
CA$0.91
In stock
SKU
Segway SSV EFI System
Segway SSV EFI System Parts:
| No. | Part Number | Part Name |
| 1 | F01000004001 | Bolt M6×20 |
| 2 | F01K00600001 | Ignition Coil |
| 3 | F02K00500001 | Electronic Throttle Body Assembly |
| 4 | F01K00400002 | Fuel Injector |
| 5 | F01000004001 | Bolt M6×20 |
| 6 | S05M41000001 | Ecu |
| 6 | S05M41000002 | Ecu（speed Limit 40km/h） |
| 6 | S05M41000003 | Ecu（speed Limit 60km/h） |
| 7 | U01M42000001 | Elecrronic Asselerator Pedal Assy |
| 8 | E02-K006100-000-00 | Wire Bracket |

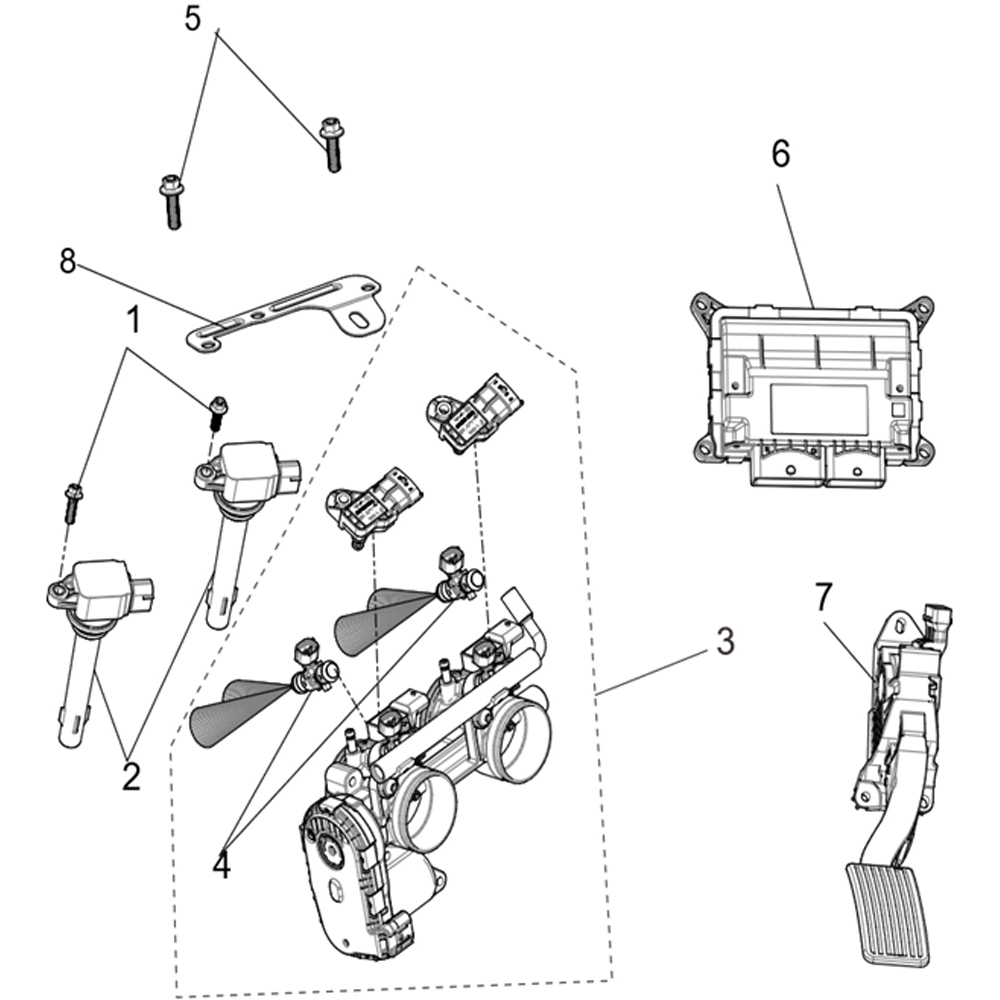

Segway SSV EFI System Diagram:
