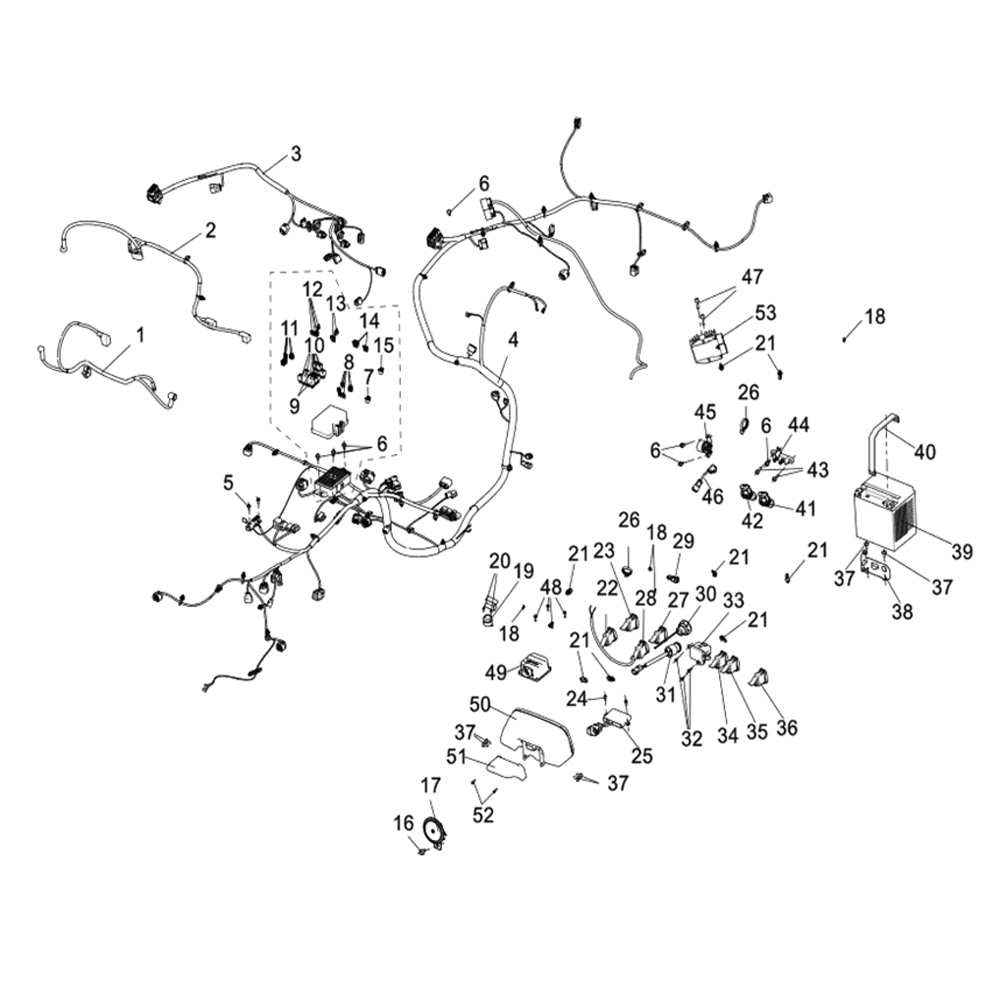

Segway SSV Electrical Assembly (US) Parts:

No.	Part Number	Part Name
1	S03M14100001	Starter Motor Positive And Negative Wire
2	S03M14600001	Battery Positive And Negative Wire
3	S05M12100001	Efi Auxiliary Cable
4	S05M11100001	Main Cable
5	GBT005789001	Hexagon Socket Pan Head Screw M5×12
6	GBT005789006	Hexagon Flange Bolt M6×12
7	T10100001007	Fuse Protector 40a
8	T10100001002	Mini-fuse7.5a
9	T10100001018	Normally Closed Relay
10	T10100001016	Relay
11	T10100001003	Mini-fuse10a
12	T10100001004	Mini-fuse15a
13	T10100001014	Clip Fuse 20a
14	T10100001013	Fuse15a
15	T10100001008	Slow-fuse50a
16	GBT005789014	Hexagon Flange Bolt M8×16
17	U01M02200001	Horn
18	T05000001007	Ribbon 2×120
19	U01M33000001	Buzzer
20	GBT000845003	Screw St3×12

No.	Part Number	Part Name
21	T05000001004	Clip,round 200
22	S01M51600001	Ignition Off Switch
23	S01M51400001	Emergency Switch
24	GBT000845014	Cross Recessed Hexagon Screw St4.8×16
25	S03M31100001	Instrument Control Module
26	T05000001006	Live Buckle Cable Tie 250×5
27	S01M51800001	Model Switch
28	S01M51700001	Horn Switch
29	S01M51900001	Intercom Switch
30	U01M56000001	Star Button Assy
31	U09M57000001	Power Lock Set
32	GBT000845009	Screw St4.2×13
33	U01M55000002	2/4 Switch
34	S01M51100001	Headlight Switch
35	S01M51500001	Release Switch
36	S01M51200001	High And Low Beam Switch
37	T03000007002	Hexagon Socket Mushroom Head Screw
38	S01C03600002	Battery Baffle Assembly
39	A01M04500001	Battery 32ah
40	S03H20200001	Battery Pull Strap

No.	Part Number	Part Name
41	U01M04300001	Usb Power Output
42	U01M04200001	12v Power Output
43	GBT005789008	Hexagon Flange Bolt M6×20
44	U01M04400001	Wiring Terminal
45	U09-M042000-000-00	Starting Relay
47	GBT005789011	Hexagon Flange Bolt M6×35
48	GBT000818005	Cross Recessed Hexagon Bolts M5×16
49	S01M34000001	T-box（eu）
49	S01M34000002	T-box（north America）
49	S01M34000003	T-box（mexico）
49	S01M34000004	T-box（australia, South America）
49	S01M34000005	T-box（japan）
49	S01M34000006	T-box（korea）
49	S01M34000007	T-box（china And India）
50	S05M31000001	Dashboard
51	S01H17400001	Instrument Cable Guard
52	GBT000845010	Screw St4.2×16
53	A01M04300001	Rectifier
54	U09-M111001-000-00	Flameout Switch Adapter
55	S01-M110002-000-00	Ssv Rectifier Adapter Cable
