Segway SSV Exhaust System
Segway SSV Exhaust System Parts:
| No. | Part Number | Part Name |
| 1 | A03A30007001 | Nut |
| 2 | QCT000620004 | A Type Worm Drive Hose Hoop 50 |
| 3 | GBT005789007 | Bolt M6×16 |
| 4 | GB0000093001 | Spring Washer 6 |
| 5 | GBT000961007 | Large Washer a Grade 6 |
| 6 | S05-A310050-000-00 | Front Heat Shield of Exhaust Front Pipe |
| 7 | S05-A310060-000-00 | Rear Heat Shield of Exhaust Front Pipe |
| 8 | S05-A310100-000-00 | Exhaust Pipe Inner Guard |
| 9 | S05A31100001 | Exhaust Pipe Front Section Assembly |
| 10 | S05A31007001 | Inner Heat Shield of Exhaust Front Pipe |
| 11 | U01M44000001 | Oxygen Sensor |
| 12 | U05A31001001 | Graphite Seal Sleeve |
| 13 | A01A32005001 | Exhaust Pipe Installation Spring |
| 14 | A01A32004001 | Exhaust Pipe Bolt |
| 15 | T03000006002 | Screw M6×16 |
| 16 | S03-A310070-000-00 | Muffler Front Heat Shield |
| 17 | T03000006003 | Bolt M6×40×10 |
| 18 | S05-C008000-DB0-00 | Hanging Buffer Bracket |
| 19 | GBT061871002 | Nut M6 |
| 20 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 21 | A03A30001001 | Rocker Arm Bracket Buffer Bushing |
| 22 | GBT005789062 | Bolt M10×1.25×70 |
| 23 | S01C02900002 | Engine Upper Damping Mount |
| 24 | S01H205A0001 | Engine Upper Damping |
| 25 | GBT005789014 | Hexagon Flange Bolt M8×16 |
| 26 | S03-A312000-000-00 | Muffler Barrel |
| 27 | S03A31001001 | Triangular Graphite Pad |
| 28 | S03A31400001 | Right Spark Arrester |
| 29 | S03-A310003-000-00 | Rear Heat Shield of Exhaust Rear Pipe |
| 30 | GBT000971003 | Flat Washer 6 |
| 31 | S03A31700001 | Tail Decoration Cover Assembly |
| 32 | S03A32000001 | Muffler Rear Decorative Board |
| 33 | S05-A318000-000-00 | Exhaust Pipe Front Assembly |
| 34 | S05-A319000-000-00 | Muffler Barrel Assembly |
| 35 | S03A31300001 | Left Spark Arrester |
| 36 | GBT005789143 | Hexagon Flange Bolt M6×14 |
| 37 | GBT005789006 | Hexagon Flange Bolt M6×12 |

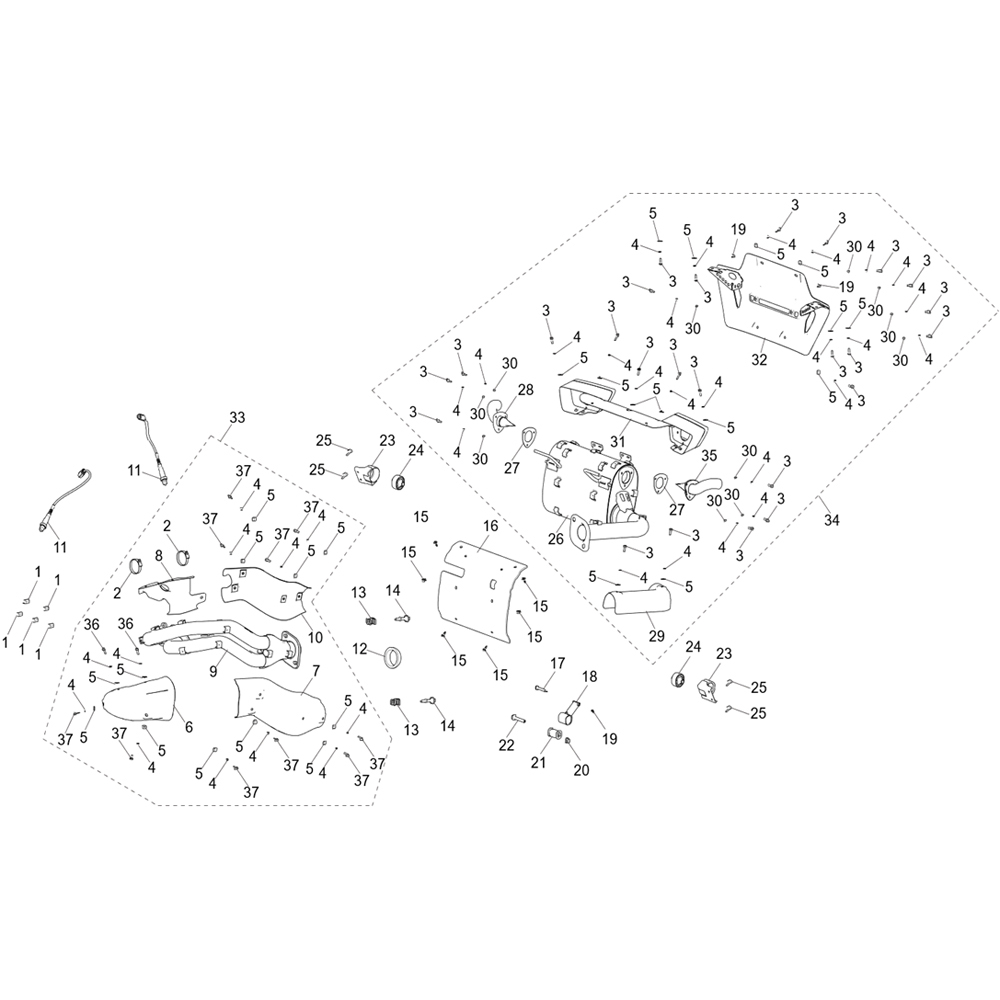

Segway SSV Exhaust System Diagram:
