Segway SSV Frame Assembly (US Wide Vehicle Version)
CA$0.91
In stock
SKU Segway SSV Frame Assembly (US Wide Vehicle Version)
Segway SSV Frame Assembly (US Wide Vehicle Version) Parts:
| No. |
Part Number |
Part Name |
| 1 |
S05B01000002 |
Frame（red) |
| 1 |
S05B01000003 |
Frame (Green) |
| 1 |
S05B01000005 |
Frame (Black) |
| 2 |
S01C10100002 |
Top Beam Left(Red) |
| 2 |
S01C10100003 |
Top Beam Left(Green) |
| 2 |
S01C10100005 |
Top Beam Left(Black) |
| 3 |
GBT005789102 |
Hex Flange Bolt M12×1.25×75 |
| 4 |
GBT005789054 |
Bolt M12×1.25×30 |
| 5 |
GBT061832002 |
Nut M12×1.25 |
| 6 |
S01C10300002 |
Top Beam Right(Red) |
| 6 |
S01C10300003 |
Top Beam Right(Green) |
| 6 |
S01C10300005 |
Top Beam Right(Black) |
| 7 |
S01C10500002 |
Top Beam Upper（red) |
| 7 |
S01C10500003 |
Top Beam Upper (Green) |
| 7 |
S01C10500005 |
Top Beam Upper (Black) |
| 8 |
GBT005789045 |
Hexagon Flange Bolt M12×1.25×25 |
| 9 |
S01C03700002 |
Upper Left Mounting Bracket Assy |
| 10 |
GBT005789014 |
Hexagon Flange Bolt M8×16 |
| 11 |
S01C03800002 |
Upper Right Mounting Bracket Assy |
| 12 |
S05-C009000-FB0-00 |
Front Bumper (Black) |
| 12 |
S05-C009000-FG0-00 |
Front Bumper (Green) |
| 12 |
S05-C009000-FR0-00 |
Front Bumper (Red) |
| 12.1 |
S01C00600002 |
Front Bumper (Red) |
| 12.1 |
S01C00600003 |
Front Bumper (Green) |
| 12.1 |
S01C00600005 |
Front Bumper (Black) |
| 13 |
GBT005789025 |
Hexagon Flange Bolt M10×1.25×20 |
| 14 |
GBT005789026 |
Hexagon Flange Bolt M10×1.25×25 |
| 15 |
GBT061832001 |
2-non-metallic Hf Nut M10×1.25 |
|
| No. |
Part Number |
Part Name |
| 16 |
S01C00700002 |
Bumper Trim Panel（frosted Silver) |
| 16 |
S01C00700003 |
Bumper Trim Panel（silver Gray) |
| 16 |
S05-C030000-PH1-00 |
Bumper Trim Panel（frosted Silver) |
| 16 |
S05-C030000-PW2-00 |
Bumper Trim Panel（silver Gray) |
| 17 |
T03000007002 |
Hexagon Socket Mushroom Head Screw |
| 18 |
S01C00500002 |
Frame Front Support Assembly (Black) |
| 19 |
S01C005A1002 |
Front Support Upper Plate（red) |
| 19 |
S01C005A1003 |
Front Support Upper Plate（green) |
| 20 |
GBT005789015 |
Hexagon Flange Bolt M8×20 |
| 21 |
S01H21000001 |
Decorative Plug |
| 22 |
S05B30050002 |
A-pillar Decoration（red) |
| 22 |
S05B30050003 |
A-pillar Decoration（green) |
| 22 |
S05B30050005 |
A-pillar Decoration（black) |
| 23 |
GBT000701013 |
Hexagon Socket Head Cap Screw M8×12 |
| 23 |
S01C02000001 |
Door Latch |
| 24 |
S01-C023000-FB0-00 |
Left Guard Bar(Black) |
| 24 |
S01-C023000-FG0-00 |
Left Guard Bar(Green) |
| 24 |
S01-C023000-FR0-00 |
Left Guard Bar(Red) |
| 24 |
S01C02300002 |
Left Guard Bar(Red) |
| 24 |
S01C02300003 |
Left Guard Bar(Green) |
| 24 |
S01C02300005 |
Left Guard Bar(Black) |
| 25 |
S01-C024000-FB0-00 |
Right Guard Bar (Black) |
| 25 |
S01-C024000-FG0-00 |
Right Guard Bar (Green) |
| 25 |
S01-C024000-FR0-00 |
Right Guard Bar (Red) |
| 25 |
S01C02400002 |
Right Guard Bar (Red) |
| 25 |
S01C02400003 |
Right Guard Bar (Green) |
| 25 |
S01C02400005 |
Right Guard Bar (Black) |
| 26 |
S01B37200002 |
Middle Bottom Guard |
|
| No. |
Part Number |
Part Name |
| 1 |
S05B01000002 |
Frame（red) |
| 1 |
S05B01000003 |
Frame (Green) |
| 1 |
S05B01000005 |
Frame (Black) |
| 2 |
S01C10100002 |
Top Beam Left(Red) |
| 2 |
S01C10100003 |
Top Beam Left(Green) |
| 2 |
S01C10100005 |
Top Beam Left(Black) |
| 3 |
GBT005789102 |
Hex Flange Bolt M12×1.25×75 |
| 4 |
GBT005789054 |
Bolt M12×1.25×30 |
| 5 |
GBT061832002 |
Nut M12×1.25 |
| 6 |
S01C10300002 |
Top Beam Right(Red) |
| 6 |
S01C10300003 |
Top Beam Right(Green) |
| 6 |
S01C10300005 |
Top Beam Right(Black) |
| 7 |
S01C10500002 |
Top Beam Upper（red) |
| 7 |
S01C10500003 |
Top Beam Upper (Green) |
| 7 |
S01C10500005 |
Top Beam Upper (Black) |
| 8 |
GBT005789045 |
Hexagon Flange Bolt M12×1.25×25 |
| 9 |
S01C03700002 |
Upper Left Mounting Bracket Assy |
| 10 |
GBT005789014 |
Hexagon Flange Bolt M8×16 |
| 11 |
S01C03800002 |
Upper Right Mounting Bracket Assy |
| 12 |
S05-C009000-FB0-00 |
Front Bumper (Black) |
| 12 |
S05-C009000-FG0-00 |
Front Bumper (Green) |
| 12 |
S05-C009000-FR0-00 |
Front Bumper (Red) |
| 12.1 |
S01C00600002 |
Front Bumper (Red) |
| 12.1 |
S01C00600003 |
Front Bumper (Green) |
| 12.1 |
S01C00600005 |
Front Bumper (Black) |
| 13 |
GBT005789025 |
Hexagon Flange Bolt M10×1.25×20 |
| 14 |
GBT005789026 |
Hexagon Flange Bolt M10×1.25×25 |
| 15 |
GBT061832001 |
2-non-metallic Hf Nut M10×1.25 |
|

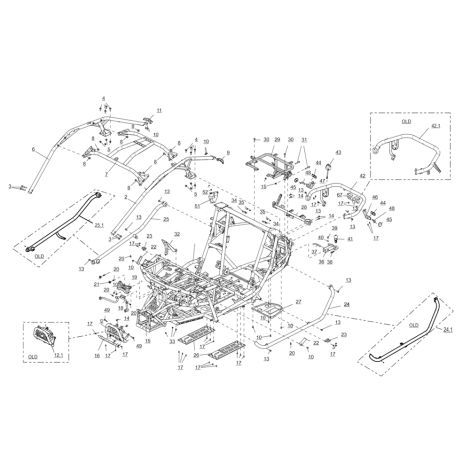

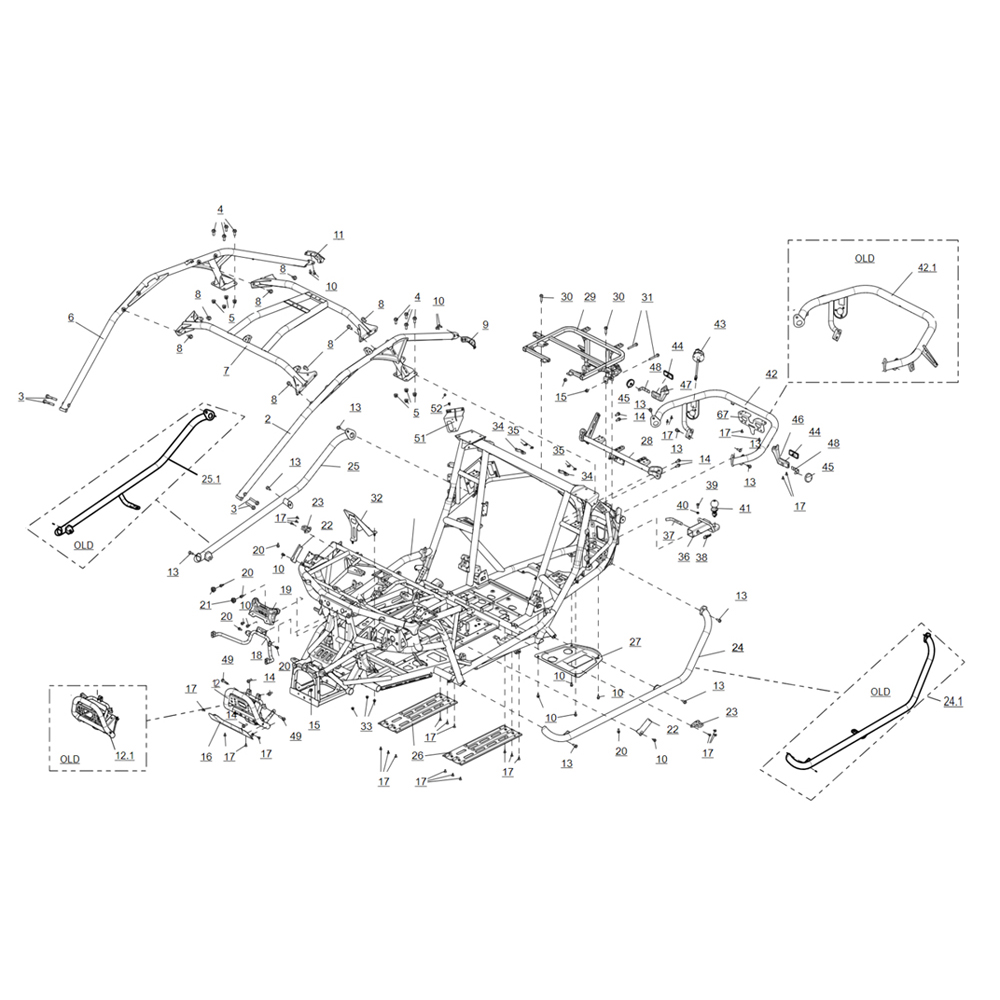

Segway SSV Frame Assembly (US Wide Vehicle Version) Diagram:
