Segway SSV Front Axle Assembly
Segway SSV Front Axle Assembly Parts:
| No. | Part Number | Part Name |
| 1 | Q01F40201001 | Hexagon Flange Bolt M8×25 |
| 2 | D02P22202001 | Oil Seal 38×55×7 |
| 3 | Q01F41300001 | Breathing Joint |
| 4 | Q03F40200002 | Front Axle End Cover |
| 5 | Q01F40500001 | Rectangular Gasket |
| 6 | GBT000276038 | Bearing 16010 |
| 7 | Q01F40400001 | Limiting Liner |
| 8 | Q03F30800001 | Hexagon Flange Bolt M10×1.0×18 |
| 9 | Q03F30200001 | Differential Cover |
| 10 | Q01R31600001 | Axle Shaft Bevel Gear Gasket (0.8) |
| 10 | Q01R31600002 | Axle Shaft Bevel Gear Gasket (1) |
| 10 | Q01R31600003 | Axle Shaft Bevel Gear Gasket (1.2) |
| 11 | Q03F30600000 | Half Shaft Bevel Gear Ⅰ Assembly |
| 12 | Q03F30300001 | Planetary Gear Shaft V |
| 13 | Q01R31700003 | Planetary Gear Liner |
| 14 | Q01R30900003 | Planetary Gear |
| 15 | Q03F30700001 | Half Shaft Bevel Gear Ii |
| 16 | Q03F30100001 | Differential Housing |
| 17 | Q01F10100000 | Drive Driven Bevel Gear Kit |
| 18 | Q03F30900000 | Axle Shaft Assy |
| 19 | Q03F31000001 | Combination Sets |
| 20 | Q03F31500001 | Spacer 40.2×50×3 |
| 21 | Q01F41000001 | Bushingⅰ(φ97) |
| 22 | GBT000276015 | Bearing 16008 |
| 23 | Q03F40100002 | Front Axle Housing |
| 24 | Q01F41100001 | Bushingⅱ(φ15) |
| 25 | Q01F10200001 | Drive Bevel Gear Shims(0.3) |
| 25 | Q01F10200002 | Drive Bevel Gear Shims(0.4) |
| 25 | Q01F10200003 | Drive Bevel Gear Shims(0.5) |
| 25 | Q01F10200004 | Drive Bevel Gear Shims(0.6) |
| 25 | Q01F10200005 | Drive Bevel Gear Shims(0.7) |
| 26 | GBT000296001 | Bearing 3306 |
| 27 | GBT000894012 | Circlip 30 |
| 28 | Q01F41200001 | Nut M75×1.5×6-lh |
| 29 | Q03F40700001 | Oil Seal 30×45×6.5 |
| 30 | F01000002001 | Bolt M6×16 |
| 31 | Q01F50300001 | Vehicle Speed Sensor Assembly |
| 32 | Q01F40900001 | O-ring 12×2 |
| 33 | F02C10008001 | Plug M14 |
| 34 | F01G00005001 | O-ring 13.8×2.5 |
| 35 | F01G00200001 | Engine Drain Plug M14 |
| 36 | Q03F40300001 | O-ring 67.9×2.2 |
| 37 | Q03F50100001 | Front Axle Shift Motor Assembly |
| 38 | Q03F31100001 | Shift Fork |
| 39 | Q03F31200001 | Sliding Rack |
| 40 | Q03F31300001 | Fork Shaft 5×65 |
| 41 | Q03F31400001 | Hexagon Screw M8×8 |
| 42 | Q03F00000002 | Front Axle Assy |

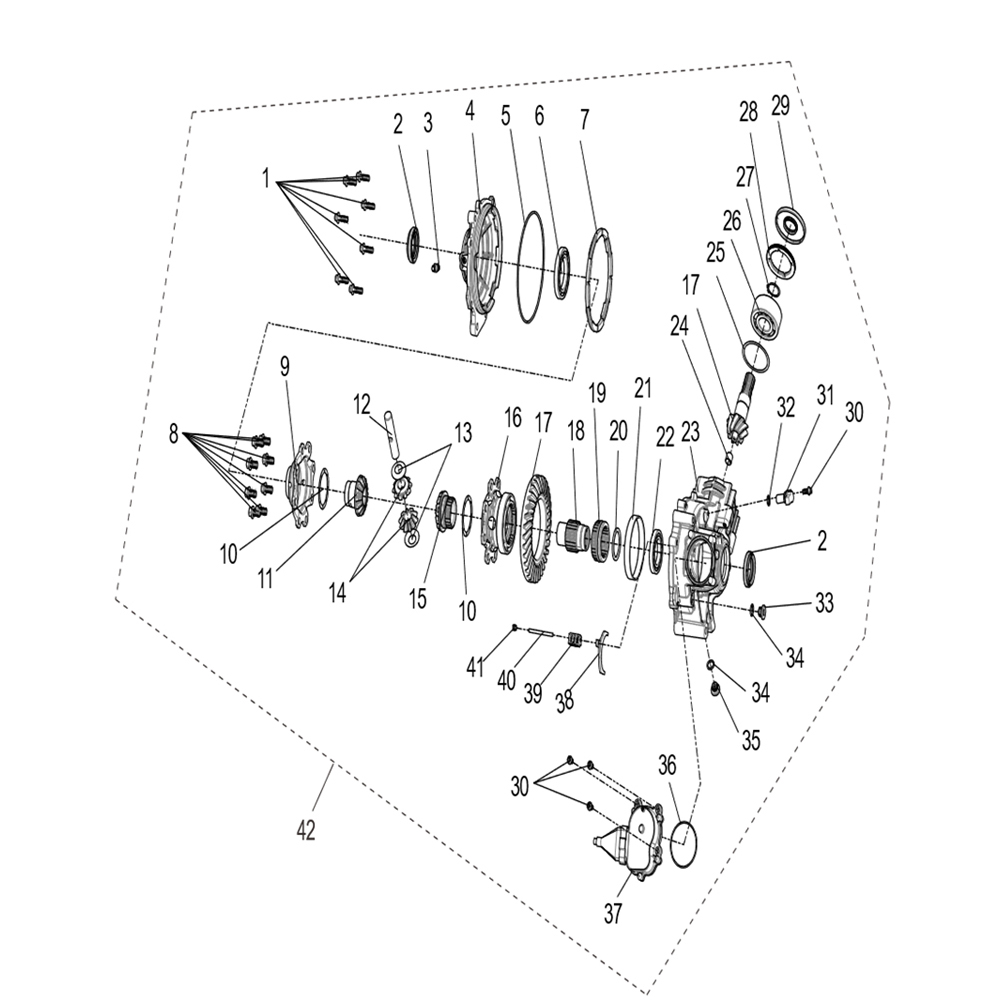

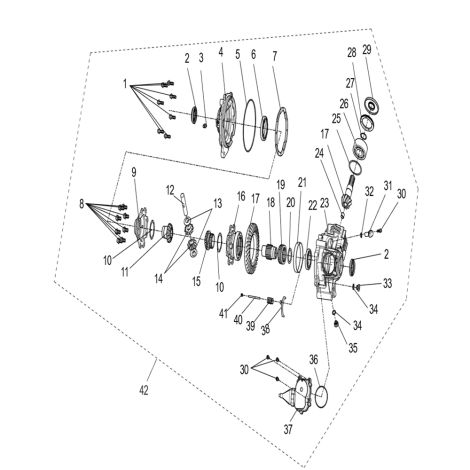

Segway SSV Front Axle Assembly Diagram:
