Segway SSV Front Rubber and Plastic Parts
CA$0.91
In stock
SKU Segway SSV Front Rubber and Plastic Parts
Segway SSV Front Rubber and Plastic Parts Parts:
| No. |
Part Number |
Part Name |
| 1 |
S01H10100001 |
Front Lampshade |
| 2 |
S01-H102000-0B0-00 |
Left Front Headlight Tail Cover |
| 3 |
S01-H103000-0B0-00 |
Right Front Headlight Tail Cover |
| 4.1 |
S01H10400002 |
Front Panel (white) |
| 4.1 |
S01H10400003 |
Front Panel (black) |
| 4 |
S01-H104000-PW1-00 |
Front Panel (white) |
| 4 |
S01-H104000-PB1-00 |
Front Panel (black) |
| 4 |
S05-H104000-PB2-00 |
Front Panel (Matt Black) |
| 4 |
S01-H104000-PH0-00 |
Front Panel (Grey) |
| 5 |
S01H10600002 |
Front Refill Cap |
| 6 |
S01H10900001 |
Brake Fluid Viewing Hole Cover |
| 7 |
S01H13000001 |
Left Door Inside Front Cover |
| 8 |
S01H12200002 |
Left Door Front Cover (White) |
| 8 |
S01H12200003 |
Left Door Front Cover (Black) |
| 8 |
S01H12200004 |
Left Door Front Cover (Blue) |
| 8 |
S05-H122000-PB2-00 |
Left Door Front Cover (Matt Black) |
| 8 |
S01H12200005 |
Left Door Front Cover (Grey) |
| 9 |
S01H12300002 |
Right Door Front Cover (White) |
| 9 |
S01H12300003 |
Right Door Front Cover (Black) |
| 9 |
S05-H123000-PB2-00 |
Right Door Front Cover (Matt Black) |
| 9 |
S01H12300005 |
Right Door Front Cover (Grey) |
| 10 |
S01H16700001 |
Right Door Inside Front Cover |
| 11 |
S01H21200001 |
Front Left Mudguard Rubber |
| 12 |
S01H21300001 |
Front Right Mudguard Rubber |
|
| No. |
Part Number |
Part Name |
| 13 |
S01H22100001 |
Front Panel Cushion Pad |
| 14 |
S03H10300001 |
Front Middle Baffle |
| 15 |
S03-H102000-0B0-00 |
Front Baffle |
| 16 |
S03H10500001 |
Front Ventilation Grille |
| 17 |
S03H10700001 |
Front Left Baffle |
| 18 |
S03H10800001 |
Front Right Baffle |
| 19 |
S05-H107000-0B0-00 |
Front Right Wind Deflector |
| 20 |
S05-H108000-0B0-00 |
Front Left Wind Deflector |
| 21.1 |
S05-H114001-0B0-00 |
Fl Fender |
| 21 |
S05-H114001-0B0-01 |
Fl Fender |
| 22.1 |
S05-H115001-0B0-00 |
Fr Fender |
| 22 |
S05-H115001-0B0-01 |
Fr Fender |
| 25 |
S01H12900001 |
Power Switch Cover |
| 28 |
GBT000845005 |
Cross Head Screws St4.2×13 |
| 29 |
T03000007002 |
Bolt M6×16 |
| 30 |
T03000007001 |
Bolt M6×20 |
| 31 |
T04000003001 |
Expansion Buckle Component |
| 32 |
T04000002003 |
4.2 Self-tapping Nail Splint |
| 33 |
T04000002001 |
M6 Nut Clip |
| 34 |
T01000002001 |
Rubber Ring |
| 35 |
GBT005789006 |
Hexagon Flange Bolt M6×12 |
| 36 |
GBT000961001 |
Large Washers a Grade 5 |
| 37 |
GBT000845009 |
Screw St4.2×13 |
|

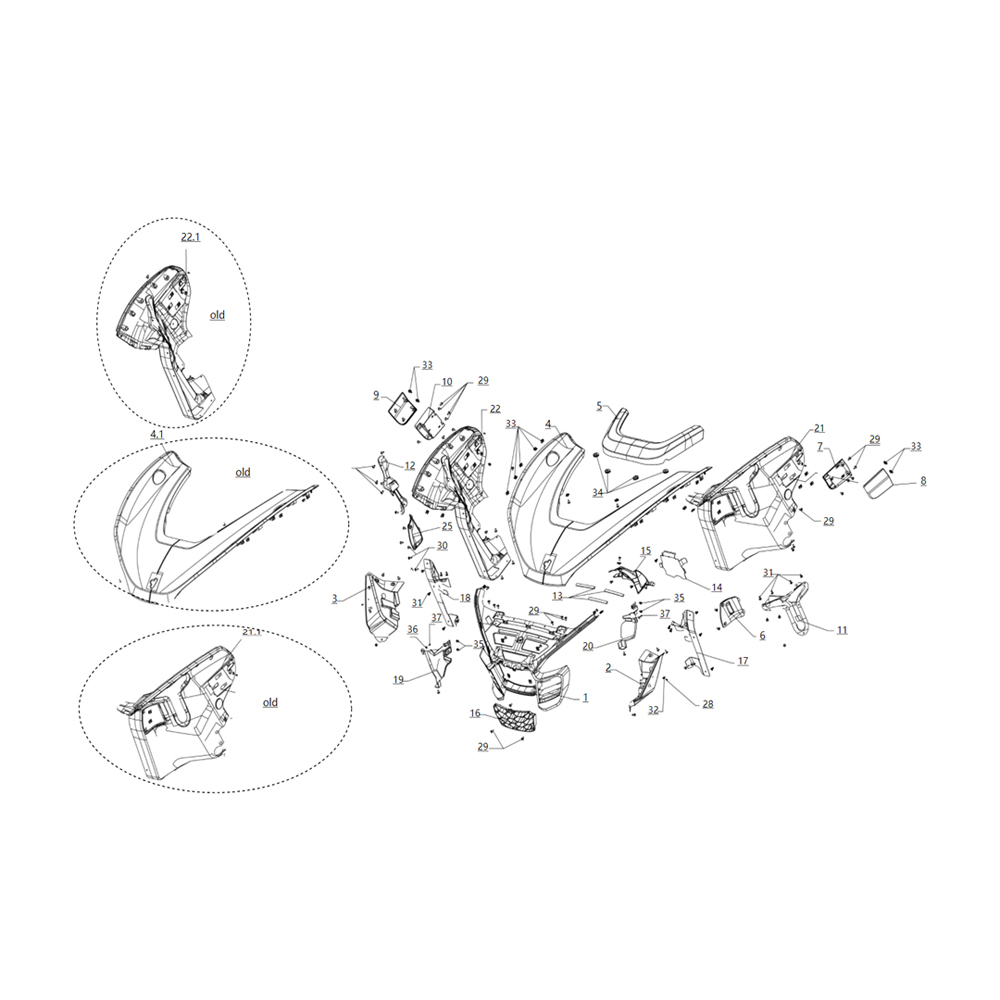

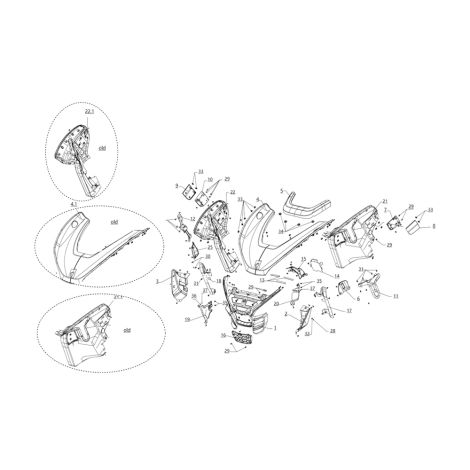

Segway SSV Front Rubber and Plastic Parts Diagram:
