Segway SSV Front Suspension Assembly (Wide Vehicle Version)
CA$0.91
In stock
SKU Segway SSV Front Suspension Assembly (Wide Vehicle Version)
Segway SSV Front Suspension Assembly (Wide Vehicle Version) Parts:
| No. |
Part Number |
Part Name |
| 1 |
S03-D106A00-FR0-01 |
Red Fr Lower a-arm(Wide Vehicle Version) |
| 1 |
S03-D106A00-FG0-01 |
Green Fr Lower a-arm(Wide Version) |
| 1 |
S03-D106A00-FB0-01 |
Black Fr Lower a-arm(Wide Version) |
| 2 |
S03D10200001 |
Right Knuckle Assembly(Wide Version) |
| 2.1 |
S03D10201001 |
Right Knuckle(Wide Vehicle Version) |
| 3 |
S03-D105A00-FR0-01 |
Red Fr Upper a-arm(Wide Vehicle Version) |
| 3 |
S03-D105A00-FG0-01 |
Green Fr Upper a-arm(Wide Version) |
| 3 |
S03-D105A00-FB0-01 |
Black Fr Upper a-arm(Wide Version) |
| 4 |
S03-D107000-0R0-01 |
Front Shock Absorber(Red,wide) |
| 4 |
S03-D107000-0G0-01 |
Front Shock Absorber (Green,wide) |
| 4 |
S03-D107000-0B0-01 |
Front Shock Absorber(Black,wide) |
| 4 |
S03-D107000-0R0-01 |
Front Shock Absorber(Red,wide) |
| 4 |
S03-D107000-0G0-01 |
Front Shock Absorber (Green,wide) |
| 4 |
S03-D107000-0B0-01 |
Front Shock Absorber(Black,wide) |
| 5 |
S01D108A0002 |
Front Stabilizer Bar Assembly |
| 6 |
S01D10801001 |
Front Balance Bar Buffer Block |
| 7 |
U01D26002001 |
Rear Balance Bar Mounting Seat |
| 8 |
GBT001152001 |
Fuel Cup M6 |
| 8 |
T07000001007 |
90° Joint Type Oil Injection Cup (Taper Thread) |
| 9 |
GBT005789017 |
Hexagon Flange Bolt M8×30 |
| 10 |
GBT061832002 |
Nut M12×1.25 |
| 11 |
S01D10810001 |
Left Stabilizer Ball Joint |
|
| No. |
Part Number |
Part Name |
| 12 |
GBT005789104 |
Bolt M12×1.25×95 |
| 13 |
GBT000701016 |
Screws M8×25 |
| 14 |
GBT005789007 |
Bolt M6×16 |
| 15 |
T05000080002 |
32 Clamps |
| 16 |
GBT005789102 |
Hex Flange Bolt M12×1.25×75 |
| 17 |
GBT061832001 |
2-non-metallic Hf Nut M10×1.25 |
| 18 |
S03D10100001 |
Left Knuckle Assembly(Wide Version) |
| 18 |
S03D10101001 |
Left Knuckle（wide Vehicle Version) |
| 18 |
JBT010238002 |
Hub Bearing Dac30630342-2rsc1 |
| 18 |
GBT000893002 |
Ring,hole 63 |
| 19 |
GBT005789030 |
Bolt M10×1.25×45 |
| 20 |
GBT000894004 |
A-ring,snap |
| 21 |
S03-D103A00-FR0-01 |
Red Fl Upper a-arm (Wide Version) |
| 21 |
S03-D103A00-FG0-01 |
Green Fl Upper a-arm (Wide Version) |
| 21 |
S03-D103A00-FB0-01 |
Black Fl Upper a-arm (Wide Version) |
| 22 |
S03D10301001 |
King Pin Assembly |
| 23 |
GBT009459002 |
Nut M12×1.25 |
| 24 |
GBT000091008 |
Cotter 3.2×25 |
| 25 |
U01D11200001 |
Main Pin |
| 26 |
S03-D104A00-FR0-01 |
Red Fl Lower a-arm(Wide Vehicle Version) |
| 26 |
S03-D104A00-FG0-01 |
Green Fl Lower a-arm(Wide Version) |
|
| No. |
Part Number |
Part Name |
| 26 |
S03-D104A00-FB0-01 |
Black Fl Lower a-arm(Wide Version) |
| 27 |
S01C00001002 |
Front Lower a-arm Plate (Black) |
| 28 |
U09D20008001 |
Rocker Arm Dust Cover 304 |
| 29 |
U09D20006001 |
Rear Rocker Arm Liner Ⅱ |
| 30 |
U09D10001001 |
Front Rocker Arm Liner |
| 31 |
GBT005789106 |
Bolt M12×1.25×145 |
| 32 |
S01D10900001 |
Hex Flange Bolt M12×1.25×320 |
| 33 |
S01-C010010-DB0-01 |
Front Upper a-arm Plate (Black) |
| 34 |
S01D10820001 |
Right Stabilizer Ball Joint |
| 35 |
GBT061872003 |
Bolt M12×1.25 |
| 36 |
S03-D107100-000-01 |
Front Damper Assembly Wide |
| 37 |
S01-D107211-000-01 |
Joint Bearing Combination Retaining Ring |
| 38 |
S01-D107210-000-01 |
Spherical Bearing Assembly |
| 39 |
S03-D107221-PR0-01 |
Front Damper Spring 1 Red Wide |
| 39 |
S03-D107221-PG0-01 |
Front Damper Spring 1 Black Wide |
| 39 |
S03-D107221-PB0-01 |
Front Damper Spring 1 Green Wide |
| 40 |
S01-D107223-PB0-01 |
Spring Spacer |
| 41 |
S03-D107222-PR0-01 |
Front Damper Spring 2 Red Wide |
| 41 |
S03-D107222-PG0-01 |
Front Damper Spring 2 Black Wide |
| 41 |
S03-D107222-PB0-01 |
Front Damper Spring 2 Green Wide |
| 42 |
S01-D107224-PB0-01 |
Lower Spring Cushion |
|

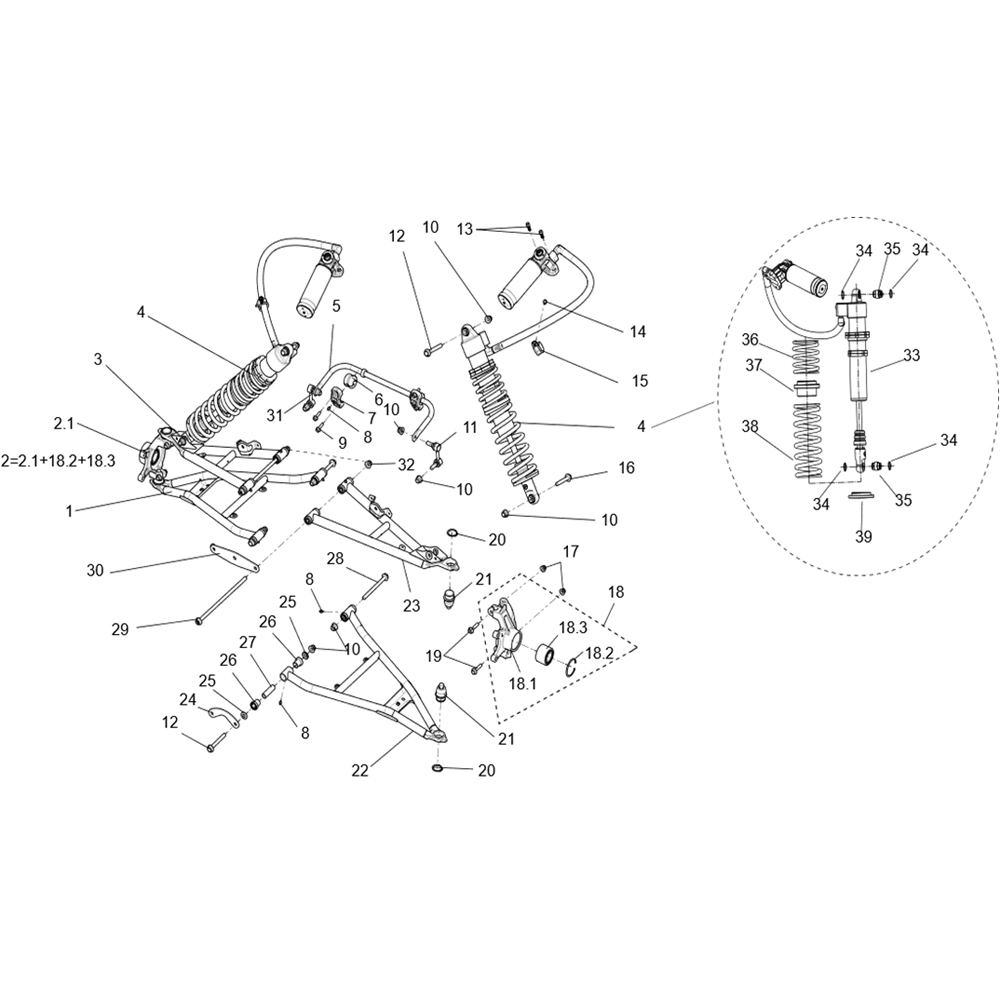

Segway SSV Front Suspension Assembly (Wide Vehicle Version) Diagram:
