Segway SSV Gearbox Combination
Segway SSV Gearbox Combination Parts:
| No. | Part Number | Part Name |
| 1 | F01000017001 | Bolt M8×40 |
| 2 | E02F32113001 | Bolt M10×1.25×45 |
| 3 | E02F32001001 | Bolt M8×125 |
| 4 | E02F32110001 | Right Gearbox Assembly Machining Parts |
| 5 | F01C10003001 | Oil Seal 42×55×8 |
| 6 | GBT000276010 | Bearing 6207 |
| 7 | T03000007002 | Hexagon Socket Mushroom Head Screw |
| 8 | GBT000276012 | Bearing 6305 |
| 9 | GBT001192001 | Dowel Pin 6×10 |
| 10 | F01F10011001 | Oil Seal 15×25×5 |
| 11 | D02P22202001 | Oil Seal 38×55×7 |
| 12 | F01000002001 | Bolt M6×16 |
| 13 | GBT000276020 | Bearing 6305 |
| 14 | E02F23004001 | Triaxial Bearing Press Plate |
| 15 | E02F22014001 | Countershaft Bearing Press Plate |
| 16 | E02F31101001 | Left Gearbox Body |
| 17 | F01G00005001 | O-ring 13.8×2.5 |
| 18 | D01P21404001 | Oil Pump Shaft |
| 19 | GBT000309001 | Needle Roller 4×15.8 |
| 20 | D01P21303001 | O-ring 52×2 |
| 21 | D01P21402001 | Inner Gerotor |
| 22 | D01P21403001 | Outer Gerotor |
| 23 | F01C10004001 | Flow Orifice ∅1 |
| 24 | E02F31202001 | Oil Pump Cover |
| 25 | E02F31210001 | Oil Pump Body |
| 26 | E01C20103001 | O-ring 18×3.5 |
| 27 | E01C20102001 | Oil Dipstick |
| 28 | E02F32001002 | Bolt M8×60 |
| 29 | F01000005001 | Bolt M6×25 |
| 30 | D01P22201001 | Oil Seal 27×60×7 |
| 31 | GBT012764003 | Needle Roller Bearing Hk1516 |
| 32 | GBT012764001 | Needle Roller Bearing Hk121612 |
| 33 | E02F00100001 | Strainer Filter |
| 34 | Q01F41300001 | Breathing Joint |
| 35 | F01G00200001 | Engine Drain Plug M14 |

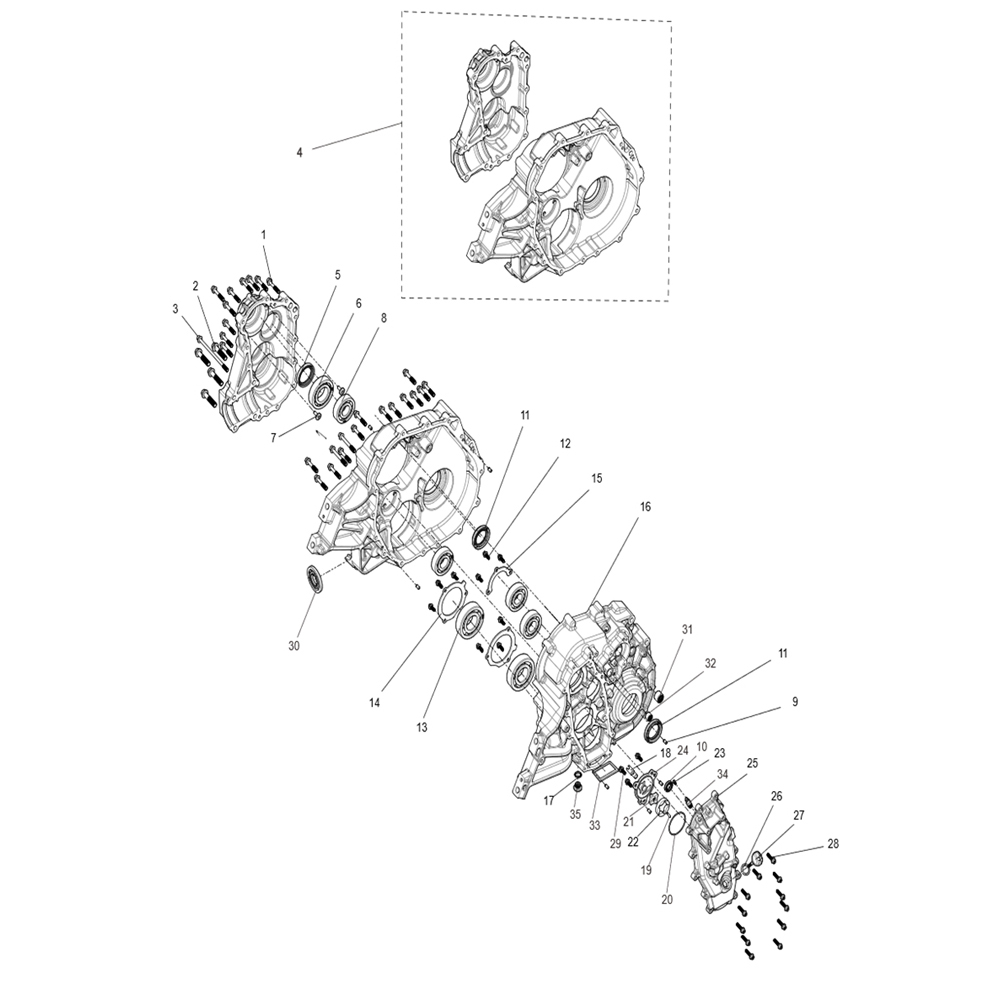

Segway SSV Gearbox Combination Diagram:
