Segway SSV Intake System
CA$0.91
In stock
SKU
Segway SSV Intake System
Segway SSV Intake System Parts:
| No. | Part Number | Part Name |
| 1 | S05A207A1001 | Upper Housing Of Air Filter |
| 2 | S03-A207B00-000-02 | Air Filter |
| 3 | QCT000620009 | A Type Worm Drive Hose Hoop 100 |
| 4 | S03A20701001 | Air Filter Inlet Pipe Joint |
| 5 | QCT000620006 | A Type Worm Drive Hose Hoop 70 |
| 6 | S03A20702001 | Exhaust Pipe Joint |
| 7 | QCT006211007 | Steel Belt Elastic Hose Clamp 28 |
| 8 | GBT000845009 | Screw St4.2×13 |
| 9 | S05-C000121-000-01 | Air Filter Heat Shield |
| 10 | U09-A211110-000-01 | Drain Plug |
| 11 | QCT006211005 | Steel Belt Elastic Hose Clamp 16 |
| 12 | S03A207A2001 | Air Filter Lower Shell |
| 13 | GBT005789011 | Hexagon Flange Bolt M6×35 |
| 14 | S01A50103001 | T Type Bushing |
| 15 | A01A21006001 | Buffer Rubber Sleeve |
| 16 | S03A20103001 | Front Filter Screen |
| 17 | S03A20106001 | Air Filter Intake Pipe |
| 18 | T03000007002 | Bolt M6×16 |
| 19 | S05A20700001 | Air Filter Assy |

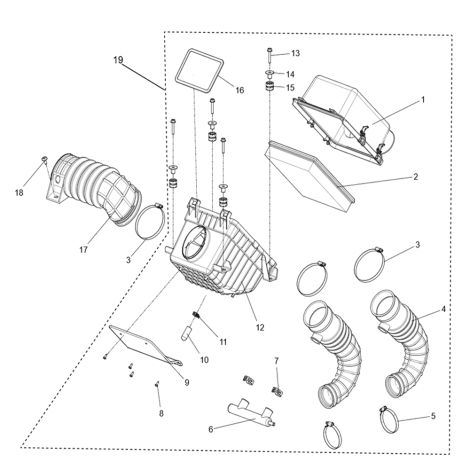

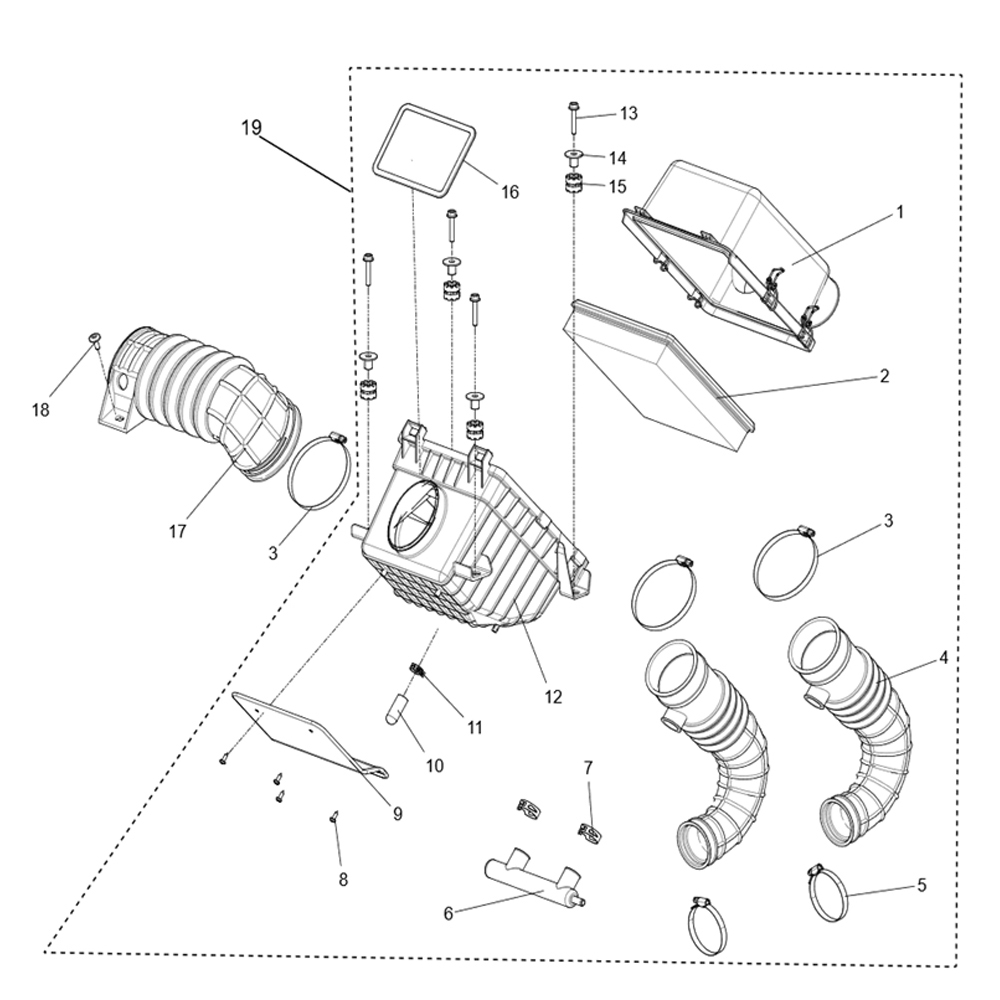

Segway SSV Intake System Diagram:
