Segway SSV Internal Rubber And Plastic Parts
Segway SSV Internal Rubber And Plastic Parts Parts:
| No. | Part Number | Part Name |
| 1 | S05-H107001-0B0-00 | Instrument Panel |
| 1.1 | S01H10700101 | Instrument Panel |
| 2 | S01-H182000-0B0-00 | Right Lower Centre Finish Panel |
| 2.1 | S01H18200001 | Right Lower Centre Finish Panel |
| 3 | S01H17400001 | Instrument Cable Guard |
| 4 | S01H16800002 | Instrument Mask Strip (Frosted Silver) |
| 4 | S01H16800003 | Instrument Mask Strip (Silver Gray) |
| 5 | S01H11100001 | Instrument Switch Cover |
| 6 | S01-H125000-0B0-00 | Left Lower Centre Finish Panel |
| 7 | S01H11000001 | Blocking Cover |
| 8 | S01H17700001 | Box Cover Pin |
| 9 | S01H17800001 | Phone Cover |
| 10 | S01H17900001 | Phone Box Cover |
| 11 | S01H17600001 | Glove Box Cover |
| 12 | S01H17500001 | Glove Box |
| 13 | S01H21900001 | Mobile Phone Box Cushion |
| 14 | S01H22000001 | Mobile Phone Box Sealing Strip |
| 16 | S05-H111001-0B0-00 | Storage Box |
| 17 | S01H21100001 | Storage Box Sealing Strip |
| 18 | S05H11200001 | Storage Box End Cap |
| 18 | S01-H112000-0B0-00 | Storage Box End Cap |
| 19 | S05H11900001 | Storage Box Drawstring |
| 20 | S01H10800001 | Electrical Service Cover |
| 21 | S01H14300001 | Storage Box Cover |
| 22 | S01H12000002 | Right Upper Decorative Strip （silver） |
| 22 | S01H12000003 | Right Upper Decorative Strip （gray） |
| 23 | S01H11800002 | Left Upper Decorative Strip （silver） |
| 23 | S01H11800003 | Left Upper Decorative Strip （gray） |
| 24 | S01H12100002 | Right Lower Strip （frosted Silver） |
| 24 | S01H12100003 | Right Lower Strip （silver Gray） |
| 25 | S01H11900002 | Left Lower Strip （frosted Silver） |
| 25 | S01H11900003 | Left Lower Strip （silver Gray） |
| 26 | S05-H211002-0B0-00 | USB Mount |
| 27 | T01000002001 | Rubber Ring |
| 28 | T03000007002 | Hexagon Socket Mushroom Head Screw |
| 29 | T04000002001 | M6 Nut Clip |
| 30 | T04000003001 | Expansion Buckle Component |
| 31 | GBT000845005 | Cross Head Screws St4.2×13 |
| 32 | GBT000845009 | Screw St4.2×13 |
| 33 | T04000002003 | 4.2 Self-tapping Nail Splint |

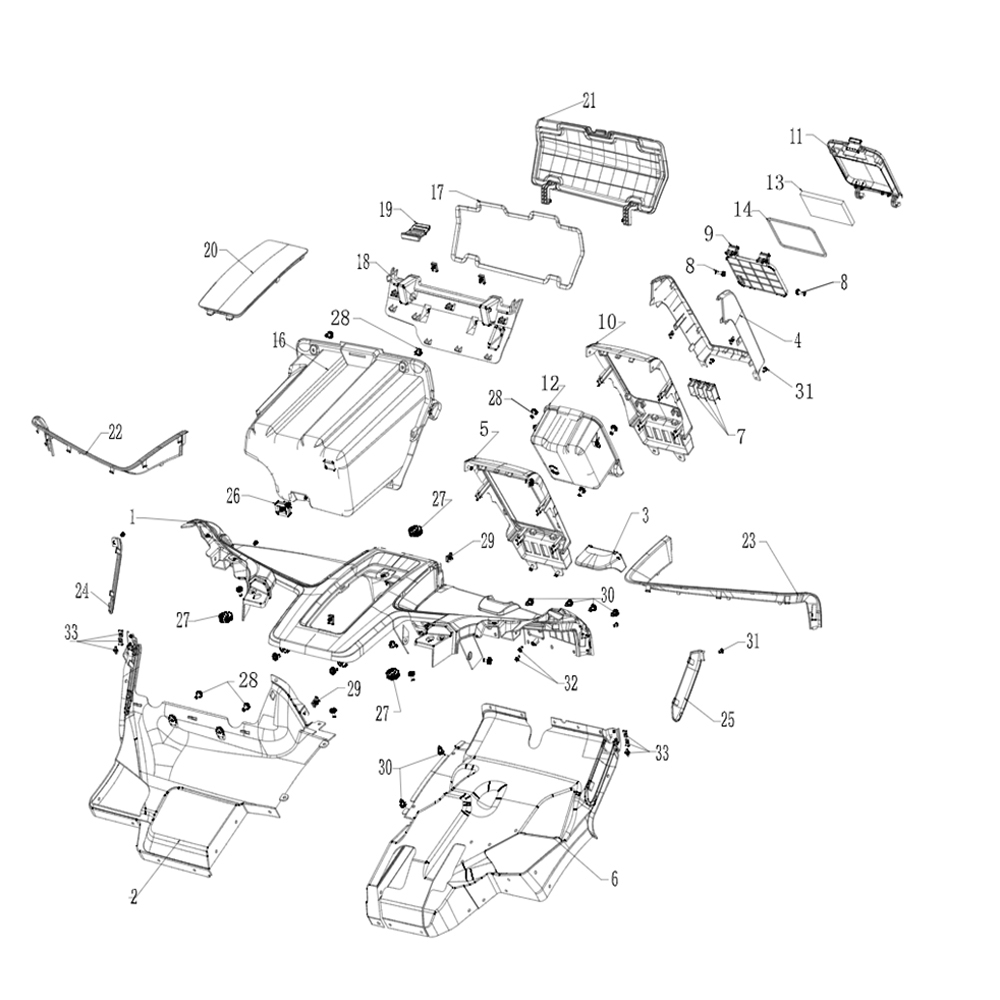

Segway SSV Internal Rubber And Plastic Parts Diagram:
