Name: Segway SSV Left crankcase cover sub-assembly
Price: 0.91 CAD
Availability: InStock

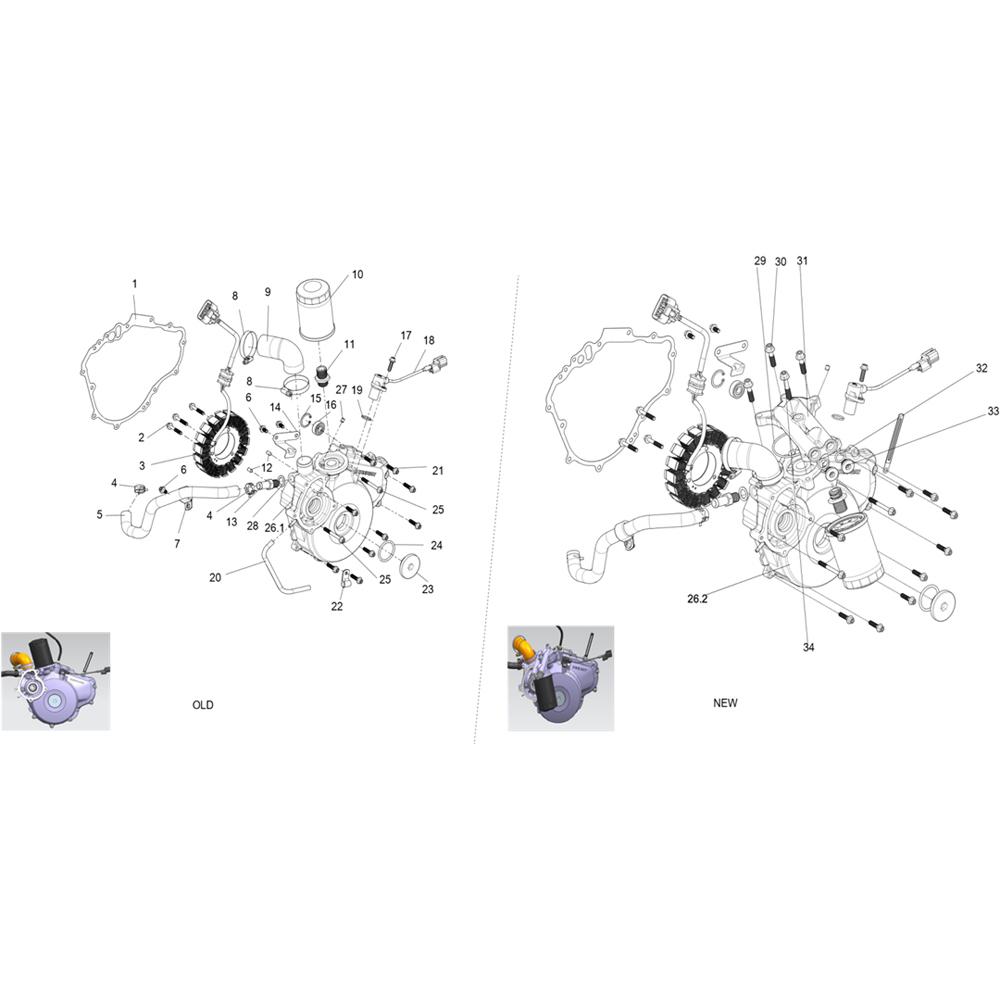

Segway SSV Left crankcase cover sub-assembly Parts:

No.	Part Number	Part Name
1	E02C20001001	Left Crankcase Cover Gasket
2	F01000007001	Bolt M6×35
3	E02C31100001	Magneto Stator Assembly
4	QCT006211009	Steel Belt Elastic Hose Clamp 22
5	F02C20004001	Oil Cooler Inlet Pipe
6	F01000001001	Bolt M6×12
7	F01H00002001	Hose Clamp
8	QCT000620004	A Type Worm Drive Hose Hoop 50
9	F02C20005001	Water Pump Outlet Pipe
10	E02-G005000-000-00	Oil Filter
11	F01G00001001	Oil Filter Adapter
12	GBT001192001	Dowel Pin 6×10
13	F01H00008001	Water Pipe Adapter
14	E02C20105001	Magneto Crimping Plate
15	GBT000893005	Circlips 26
16	GBT000276027	Bearings 629-2rs
17	F01000004001	Bolt M6×20

No.	Part Number	Part Name
18	E01K00300001	Crank Position Sensor (Cps)
19	F01K00301001	O-ring 17×2
20	F01000005001	Bolt M6×25
21	F01K00003001	Sensor Wire Clamp
22	E01C20104001	Stator Cover Plug
23	E01C20107001	O-ring 35×3.5
24	F01000009001	Bolt M6×55
25	E02-C201000-000-03	Left Crankcase Cover Assy (Utv)
26	E02C20100001	Left Crankcase Cover Assembly
27	E02C20003001	Oil Passage Plug
28	F01F10003001	Gasket 14×21×1.5
29	E02-C201030-000-01	O-ring 58×2.65
30	F01000015001	Bolt M8×30
31	E02-C201020-000-01	Oil Filter Mounting Seat
32	F01G00005001	O-ring 35×3.5
33	F02C10008001	Plug M14
34	F01000017001	Bolt M8×40
