Segway SSV Lower crankcase cover sub-assembly
CA$0.91
In stock
SKU
Segway SSV Lower crankcase cover sub-assembly
Segway SSV Lower crankcase cover sub-assembly Parts:
| No. | Part Number | Part Name |
| 1 | F02C50001001 | Lower Crankcase Cover Gasket |
| 2 | F02C52000001 | Lower Crankcase Cover Assembly |
| 3 | F01000005001 | Bolt M6×25 |
| 4 | F01H00008001 | Connect Water Pipe Joints |
| 5 | F01F10003001 | Aluminum Washer 14×21×1.5 |
| 6 | F01G00007001 | O-ring Seal 19×2.5 |
| 7 | F02G21000001 | Oil Cooler Assembly |
| 8 | F01000002001 | Bolt M6×16 |
| 9 | F01000008001 | Bolt M6×40 |
| 10 | E02-C520004-000-01 | Oil And Gas Separator |

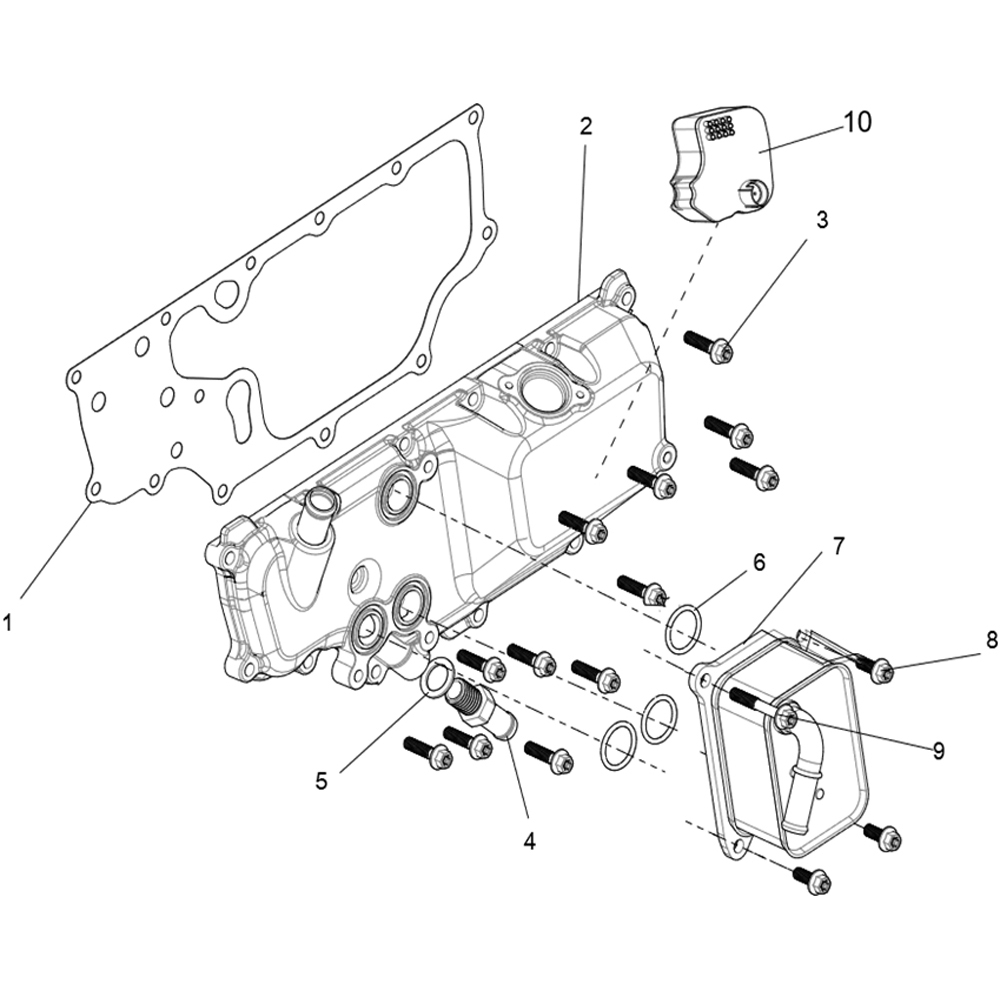

Segway SSV Lower crankcase cover sub-assembly Diagram:
