Segway SSV Lubrication system
CA$0.91
In stock
SKU
Segway SSV Lubrication system
Segway SSV Lubrication system Parts:
| No. | Part Number | Part Name |
| 1 | F01000002001 | Bolt M6×16 |
| 2 | E02-C400002-000-01 | Bolt M6×45 |
| 3 | F02G10001001 | Oil Pump Chain Guard Plate |
| 4 | F01000004001 | Bolt M6×20 |
| 5 | F02G12000001 | Oil Pump Chain Assembly |
| 6 | F02G10002001 | Oil Pump Driven Sprocket |
| 7 | F02G10003001 | Washer 6.5 |
| 8 | E02-G110000-000-02 | Oil Pump Components |
| 9 | F02G10004001 | Oil Strainer Seal Ring |
| 10 | F02G13000001 | Oil Strainer Assembly |

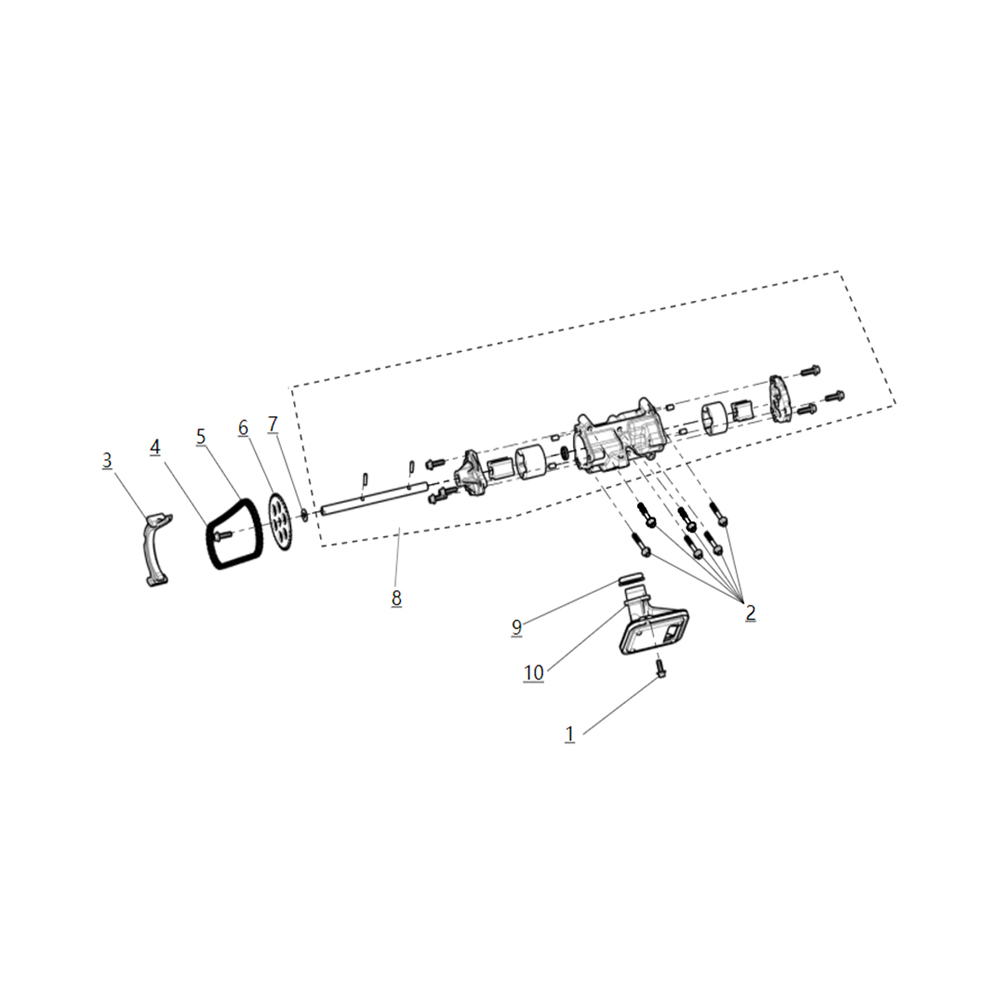

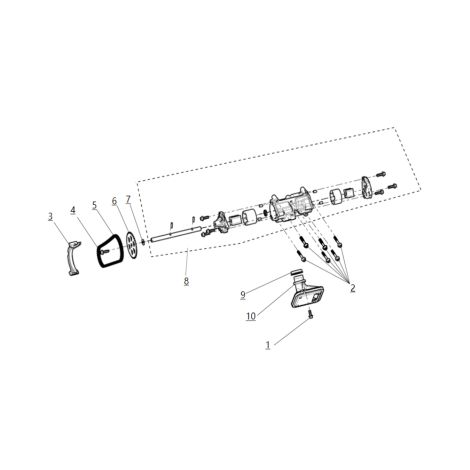

Segway SSV Lubrication system Diagram:
