Segway SSV Power Installation Assembly
Segway SSV Power Installation Assembly Parts:
| No. | Part Number | Part Name |
| 1 | S05-C006100-DB0-00 | Engine Front Bracket Assembly |
| 2 | S05H20200001 | Engine Damping Set |
| 3 | GBT005789094 | Bolt M12×1.25×85 |
| 4 | GBT061832002 | Nut M12×1.25 |
| 5 | GBT005789029 | Hexagon Flange Bolt M10×1.25×40 |
| 6 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 7 | S05C00500002 | Engine Lower Mounting Seat |
| 8 | GBT005789026 | Hexagon Flange Boltm10×1.25×25 |
| 9 | S05C00400002 | Engine Lower Bracket Assembly |
| 10 | GBT005789025 | Hexagon Flange Bolt M10×1.25×20 |
| 11 | S05C00200002 | Engine Rear Left Bracket Assembly |
| 12 | S05C00206002 | Engine Rear Liner |
| 13 | GBT005789093 | Hex Flange Bolt M12×1.25×220 |
| 14 | GBT005789101 | Hex Flange Bolt M10×1.25×160 |
| 15 | Q03F00000002 | Front Axle Assy |
| 16 | S05-C005000-DB0-00 | Lower Bracket Of Front Axle |
| 17 | GBT005789031 | Hex Flange Bolt M10×1.25×50 |
| 18 | GBT061852001 | 2-metallic Hf Nut M10×1.25 |
| 19 | A02A10002001 | Rear Axle Snorkel |
| 20 | QCT006211003 | Steel Belt Elastic Hose Clamp 11 |
| 21 | S05C01100001 | Engine Rear Mounting Seat Assembly |
| 22 | S05-C006000-000-00 | Engine Front Mounting Seat Assembly |
| 23 | S05C01200001 | Engine Lower Mounting Seat Assembly |

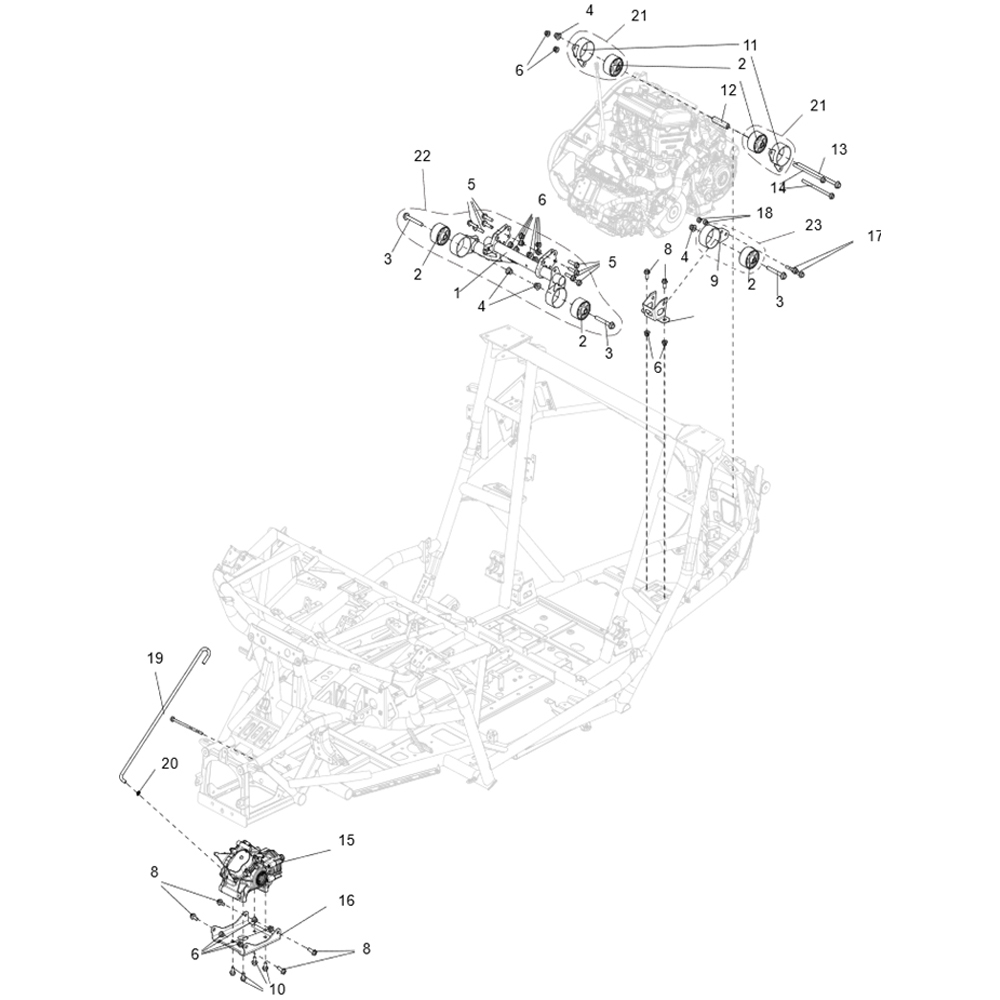

Segway SSV Power Installation Assembly Diagram:
