Segway SSV Rear Suspension Assembly (Wide Vehicle Version)
CA$0.91
In stock
SKU Segway SSV Rear Suspension Assembly (Wide Vehicle Version)
Segway SSV Rear Suspension Assembly (Wide Vehicle Version) Parts:
| No. |
Part Number |
Part Name |
| 1 |
S03D201A0002 |
Red Rl Trailing Arm(Wide Vehicle Version) |
| 1 |
S03D201A0003 |
Green Rl Trailing Arm(Wide Version) |
| 1 |
S03D201A0005 |
Black Rl Trailing Arm(Wide Version) |
| 2 |
S05D20200001 |
Left Rear Axle Support Assembly |
| 2.1 |
S05D20201001 |
Left Rear Axle Support |
| 3 |
S03D20500001 |
Rear Shock Absorber Assembly(Red,wide) |
| 3 |
S03D20500002 |
Rear Shock Absorber Assembly(Green,wide) |
| 3 |
S03D20500003 |
Rear Shock Absorber Assembly(Black,wide) |
| 4 |
S03-D205000-0R0-01 |
Rear Shock Absorber Assembly(Red,wide) |
| 5 |
S03-D205000-0G0-01 |
Rear Shock Absorber Assembly(Green,wide) |
| 6 |
S03-D205000-0B0-01 |
Rear Shock Absorber Assembly(Black,wide) |
| 4 |
S01H11700001 |
Rear Shock Absorber Baffle |
| 5 |
S01D209A0001 |
Rear Stabilizer Bar Components |
| 6 |
U01D26001001 |
Rear Balance Bar Buffer Block |
| 7 |
U01D26002001 |
Rear Balance Bar Mounting Seat |
| 8 |
GBT001152001 |
Fuel Cup M6 |
| 9 |
GBT005789017 |
Hexagon Flange Bolt M8×30 |
| 10 |
GBT005789102 |
Hex Flange Bolt M12×1.25×75 |
| 11 |
GBT000701016 |
Screws M8×25 |
| 12 |
S01D20510001 |
Rear Shock-absorbing Airbag Seat |
| 13 |
GBT061832002 |
Nut M12×1.25 |
| 14 |
T03000007002 |
Hexagon Socket Mushroom Head Screw |
| 15 |
GBT005789048 |
Hex Flange Bolt M12×1.25×65 |
| 16 |
S03D203A0002 |
Red Rr Trailing Arm(Wide Version) |
| 16 |
S03D203A0003 |
Green Rr Trailing Arm(Wide Version) |
| 16 |
S03D203A0005 |
Black Rr Trailing Arm(Wide Version) |
| 17 |
S05D20400001 |
Right Rear Axle Support Assembly |
| 17 |
S05D20401001 |
Right Rear Axle Support |
| 17 |
JBT010238004 |
Bearing Dac407237-2rs |
|
| No. |
Part Number |
Part Name |
| 17 |
GBT000893006 |
Circlip 72 |
| 17 |
S01D20101001 |
Joint Bearing |
| 18 |
GB0008951001 |
Wire Retaining Ring for Hole 35 |
| 18 |
S01H14400001 |
Rr Trailing Arm Scraper Seat |
| 19 |
GBT005789008 |
Hexagon Flange Bolt M6×20 |
| 20 |
GBT061831002 |
Nut M6 |
| 21 |
S05H11700001 |
Frame Plug |
| 22 |
S03D20800001 |
Rear Bottom Tie Rod Assy(Wide Version) |
| 23 |
S03D20700001 |
Rear Upper Tie Rod Assy(Wide Version) |
| 24 |
S03D20600001 |
Rear Toe Arm Assy(Wide Version) |
| 25 |
S01C00100002 |
Rear Arm Mounting Plate |
| 26 |
S01H11600001 |
Rl Trailing Arm Scraper Seat |
| 27 |
S01D209B0001 |
Rear Stabilizer Bar Linkage Assembly |
| 28 |
S03-D205100-000-01 |
Rear Damper Assembly Wide |
| 29 |
S01-D107211-000-01 |
Joint Bearing Combination Retaining Ring |
| 30 |
S01-D107210-000-01 |
Spherical Bearing Assembly |
| 31 |
S03-D205221-PR0-01 |
Rear Damper Spring 1 Red Wide |
| 31 |
S03-D205221-PG0-01 |
Rear Damper Spring 1 Green Wide |
| 31 |
S03-D205221-PB0-01 |
Rear Damper Spring 1 Black Wide |
| 32 |
S01-D107223-PB0-01 |
Spring Spacer |
| 33 |
S03-D205222-PR0-01 |
Front Damper Spring 2 Red Wide |
| 33 |
S03-D205222-PG0-01 |
Front Damper Spring 2 Green Wide |
| 33 |
S03-D205222-PB0-01 |
Front Damper Spring 2 Black Wide |
| 34 |
S01-D107224-PB0-01 |
Lower Spring Gasket |
| 35 |
S01-D205223-PB0-01 |
Fender Bracket |
| 36 |
S01D20510001 |
Rear Shock Absorber Mount |
|

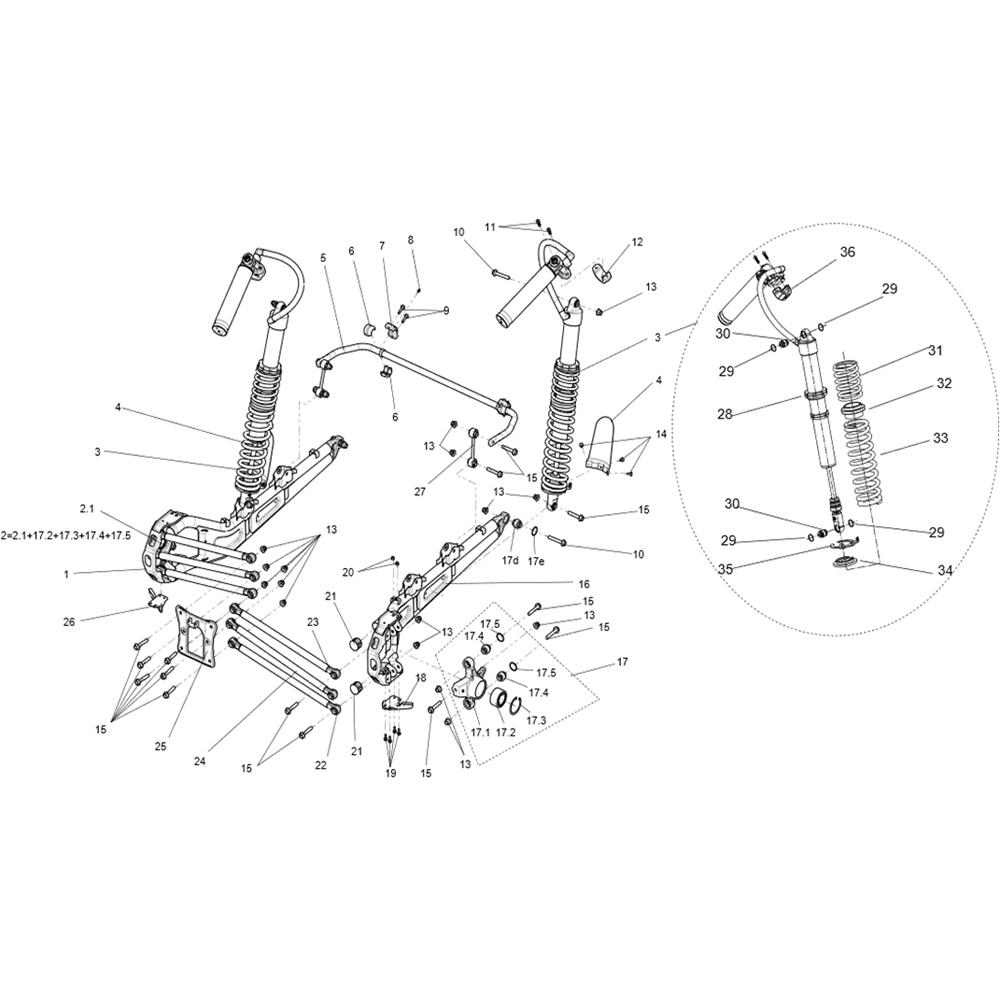

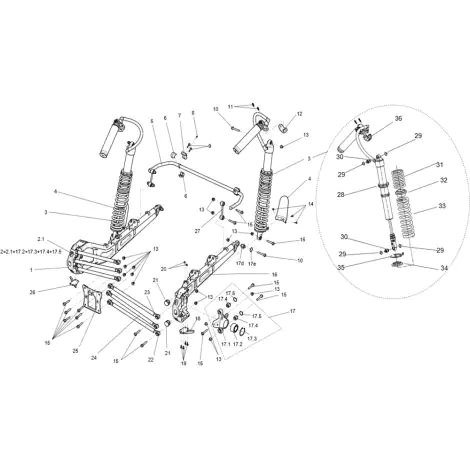

Segway SSV Rear Suspension Assembly (Wide Vehicle Version) Diagram:
