Segway SSV Seat Combination (US)
CA$0.91
In stock
SKU
Segway SSV Seat Combination (US)
Segway SSV Seat Combination (US) Parts:
| No. | Part Number | Part Name |
| 1.1 | S03-C026000-DB0-00 | Seat Mounting Bracket Assembly (Black) |
| 1 | S03-C026002-DB0-00 | Seat Mounting Bracket |
| 2 | GBT005789019 | Hexagon Flange Bolt M8×40 |
| 3 | GBT000971005 | Washer 10 |
| 4 | T03000013001 | Wing Screw M8×20 |
| 5 | S01H19100001 | Armrest Rubber Sleeve |
| 6 | GBT000971012 | A-spacer 5 |
| 7 | GBT000845010 | Screw St4.2×16 |
| 8 | S01K201A0001 | Passenger Buckle Assembly |
| 9 | S01K202A0001 | Passenger Lock Assembly |
| 10 | S01K20200001 | Passenger Seat Belt Assembly |
| 15.1 | S01K02000001 | Co-driver's Seat(Without Off Seat Alarm) |
| 15 | S01-K200001-000-00 | Passenger Seat |
| 17.1 | S01K01000001 | Main Driver's Seat(With Off Seat Alarm) |
| 17 | S01-K100001-000-00 | Driver Seat |
| 18 | S01K203B0001 | Driver Lock Assembly |
| 19 | S01K203C0001 | Driver Buckle Assembly |
| 20 | S01K20300001 | Driver's Seat Belt Assembly |

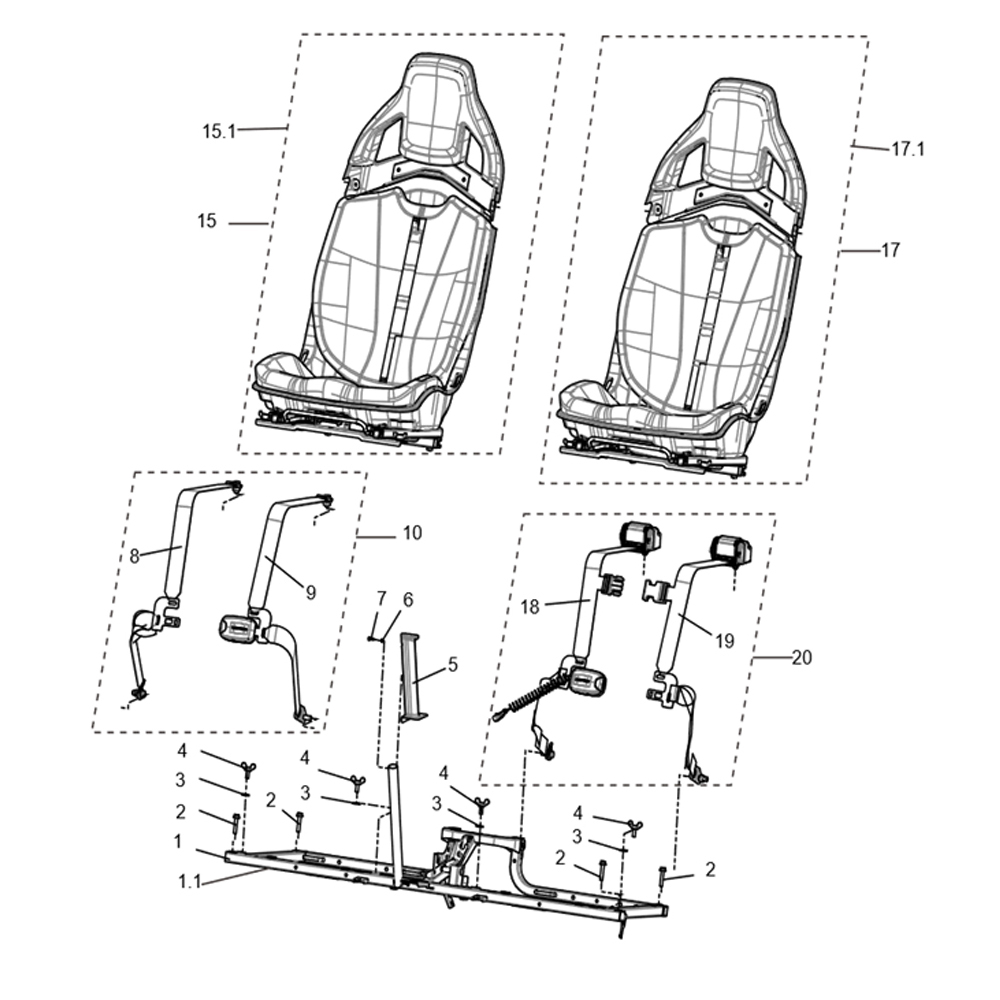

Segway SSV Seat Combination (US) Diagram:
