Segway SSV Shift System
CA$0.91
In stock
SKU
Segway SSV Shift System
Segway SSV Shift System Parts:
| No. | Part Number | Part Name |
| 1 | S05F3C030001 | Shift Lever Seat Assembly |
| 2 | A03E12201001 | Nylon Bushing |
| 3 | GB0000896005 | Open Retainer Ring 12 |
| 4 | GBT061831002 | 2-non-metallic Hf Nut M6 |
| 5 | S05H10300001 | Gear Shift Decorative Cover Skateboard |
| 6 | S05H10200001 | Gear Shift Trim Cover |
| 7 | S05F3C002001 | Shift Lever Lock Nut |
| 8 | S05F3C011001 | Shift Lever Seat |
| 9 | S01M51900001 | Intercom Switch |
| 10 | GBT000845004 | Cross Recessed Pan Head Tapping Screw St2.9×9.5 |
| 11 | S05F3C013001 | Shift Lever Cover |
| 13 | S05F3A000001 | Gear Shift Cable Assembly |
| 14 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 15 | S05F3A001001 | Shift Cable Clamp |
| 16 | S05F3B000002 | Rear Bracket For Shift Cable (Black) |
| 17 | GBT005789015 | Hexagon Flange Bolt M8×20 |
| 18 | S05F30500001 | Gear Shift Rocker Arm Assembly |
| 19 | GBT005789010 | Hexagon Flange Bolt M6×25 |

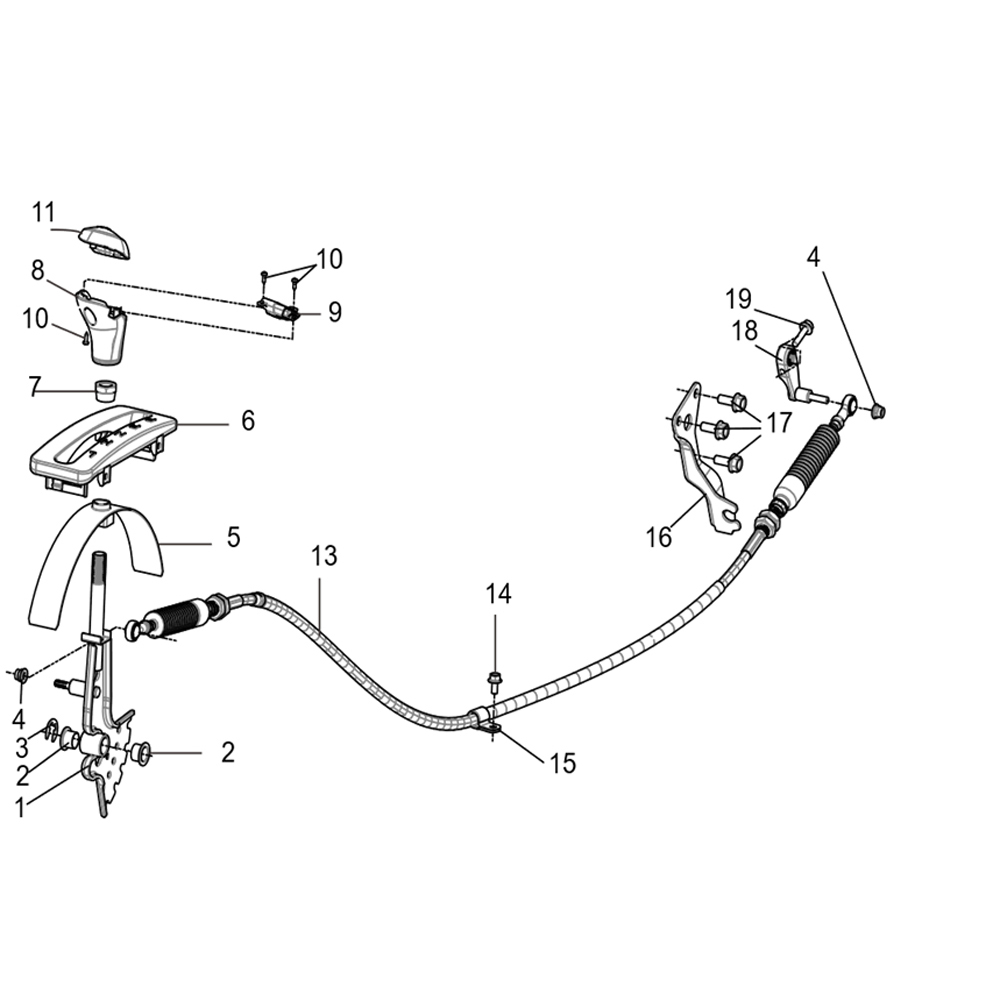

Segway SSV Shift System Diagram:
