Segway SSV Steering System (Wide Vehicle Version)
Segway SSV Steering System (Wide Vehicle Version) Parts:
| No. | Part Number | Part Name |
| 1 | A01L10025001 | Logo of Steering Wheel Small (Al) |
| 2 | S01F10702002 | Steering Wheel Logo Cover |
| 3 | S01F10701002 | Steering Wheel Cover(Shiny Silver Gray) |
| 3 | S01F10701003 | Steering Wheel Cover(Dark Silver Gray) |
| 4 | GBT000845009 | Screw St4.2×13 |
| 5 | S01-F107031-000-00 | Steering Wheel |
| 6 | GBT061832006 | Nut M14×1.5 |
| 7 | GBT000894008 | Circlip 20 |
| 8 | GBT000276001 | Bearing 61804-2rs |
| 9 | S01F15001001 | Direction String |
| 11 | GBT008191004 | Screw M6×14 |
| 12 | T03000005004 | Step Bolt M6×24 |
| 13 | U01F17100001 | Air Spring Asssy |
| 14 | S01F10002001 | Bolt M8 |
| 15 | GBT061871002 | All Metal Hexagonal Flange Lock Nut M6 |
| 16 | S01F10400001 | Steering Upper Shaft Assembly |
| 17 | GBT005789018 | Hexagon Flange Bolt M8×35 |
| 18 | GBT061831003 | Non-metallic Hexagon Flange Nut M8 |
| 19 | GBT005789014 | Hexagon Flange Bolt M8×16 |
| 20 | U01F13100001 | Eps Motor |
| 21 | GBT005789016 | Bolt M8×25 |
| 22 | S01F10500001 | Steering Lower Shaft Assembly |
| 23 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 24 | S01C00806002 | Steering Column Control Bracket |
| 25 | S05M06100002 | Eps Controller |
| 26 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 27 | GBT000091008 | Cotter 3.2×25 |
| 28 | GBT009459002 | Nut M12×1.25 |
| 29 | S01F10110001 | Dust Cover |
| 30 | S01F10140001 | Earless Slamp 0.6×7-40~63 |
| 31 | S01F10170001 | Corrugated Sleeve |
| 32 | S01F10180001 | Earless Slamp 0.6×7-52~76 |
| 33 | S01F10100001 | Steering Machine Assembly |
| 34 | GBT005789026 | Hexagon Flange Boltm10×1.25×25 |
| 35 | GBT005789092 | Hex Flange Bolt M10×1.25×105 |
| 38 | S03F10200001 | Steering Rod Assembly(Wide Version) |

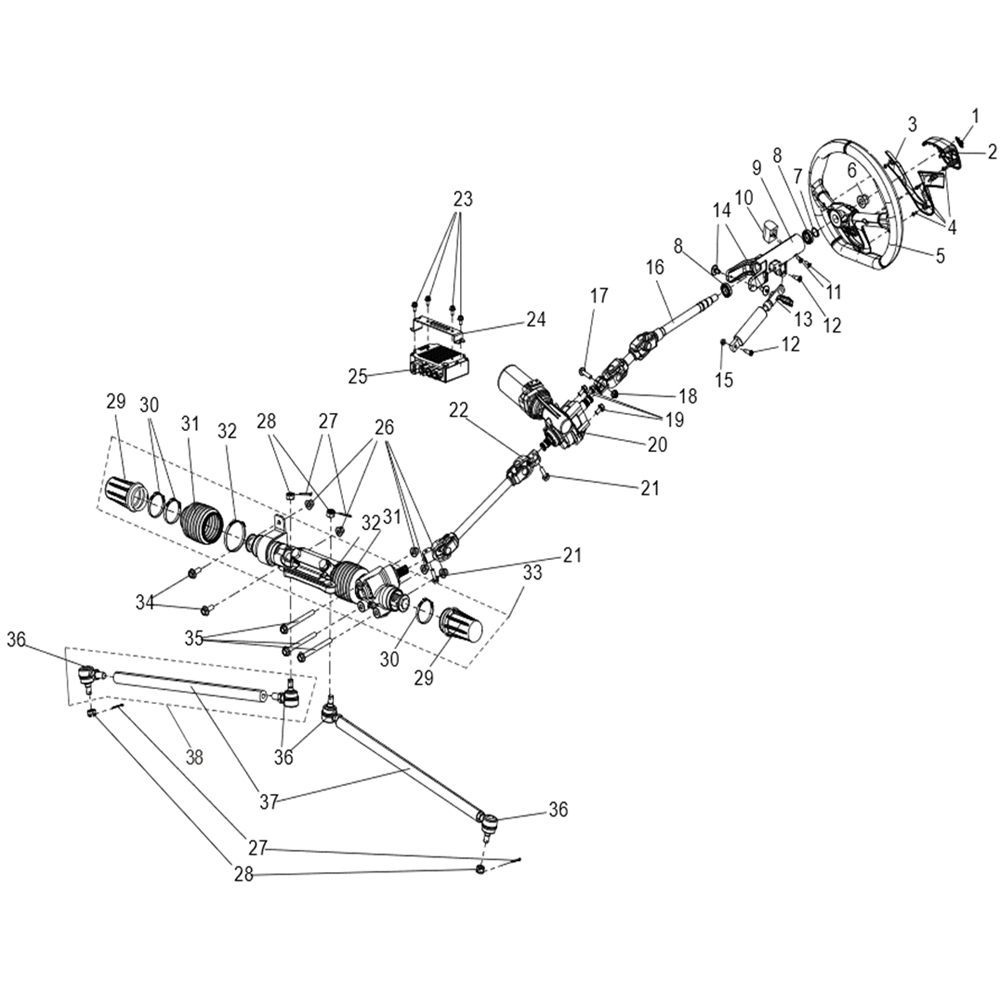

Segway SSV Steering System (Wide Vehicle Version) Diagram:
