Segway SSV Transmission Components
CA$0.91
In stock
SKU
Segway SSV Transmission Components
Segway SSV Transmission Components Parts:
| No. | Part Number | Part Name |
| 1 | E02F24007001 | Nut M30×1.5 |
| 2 | E02F24005001 | Four-axis Assembly |
| 4 | E02F24004003 | Drive Gear Adjustment Pad 42×48×0.6 |
| 5 | E02F24001002 | Driving Bevel Gear |
| 6 | GBT000276020 | Bearing 6305 |
| 7 | E02F24006001 | Nut M30×1.5-lh |
| 8 | E02F26003001 | Driven Bevel Gear Shaft Enclosure |
| 9 | GBT000276009 | Bearing 6206 |
| 10 | E02F26002003 | Driven Gear Adjustment Pad 35×48×0.5 |
| 11 | GBT000276010 | Bearing 6207 |
| 12 | E02F26001002 | Driven Bevel Gear Shaft |
| 13 | E02F23000001 | Three-axis Assembly |
| 16 | GBT000309003 | Needle Roller P4×29.8 |
| 17 | E02F22012002 | Circlip 28×2.5 |
| 18 | E02F22008002 | Washer 28×40×2.5 |
| 19 | E02F22003001 | L Gear Driven Bevel |
| 20 | E02F22013002 | Needle Roller Bearing K28×33×17 |
| 21 | E02F22006001 | R/l Gear Coupling Sleeve |
| 22 | D01P21207001 | Circlip 35×2.5 |
| 23 | E02F22009001 | Spacer 35×46×1.5 |
| 24 | E02F22004001 | R Gear Driven Bevel |
| 25 | E02F22011001 | Needle Roller Bearing K35×40×13 |
| 26 | E02F22001001 | Countershaft |
| 27 | E02F22007001 | H Gear Engagement Sleeve |
| 28 | E02F22002001 | H Gear Driven Gear |
| 29 | E02F22005001 | Parking Gear |
| 30 | F01F20403001 | Nut M22×1 |
| 31 | E02F21000001 | Main Shaft (Ssv) |
| 32 | E02F27003001 | Washer 26×44×3 |
| 33 | E02F27002001 | Reverse Gear Idler |
| 34 | E02F22010001 | Needle Bearing K30×35×17 |
| 35 | E02F27001001 | Reverse Gear Idler Shaft |
| 36 | GBT001192001 | Dowel Pin 6×10 |
| 37 | GBT000276025 | Deep Groove Ball Bearings 6211 |
| 38 | E02F25001001 | Rear Axle Output Gear |
| 39 | E02E10003001 | O-ring Seal 31×2.5 |
| 40 | E02E10002001 | Cvt Driven Wheel Bushing |

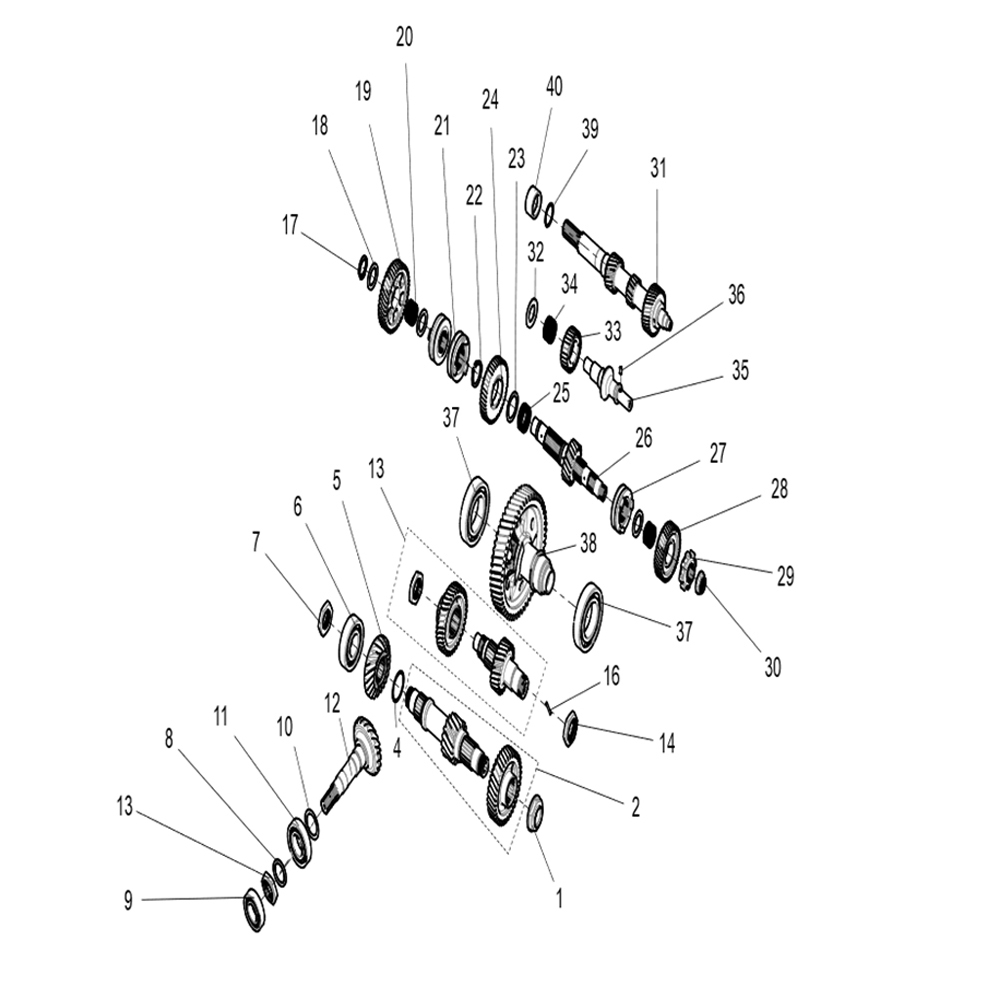

Segway SSV Transmission Components Diagram:
