Name: Segway SSV Transmission System Assembly (Wide Vehicle Version)
Price: 0.91 CAD
Availability: InStock

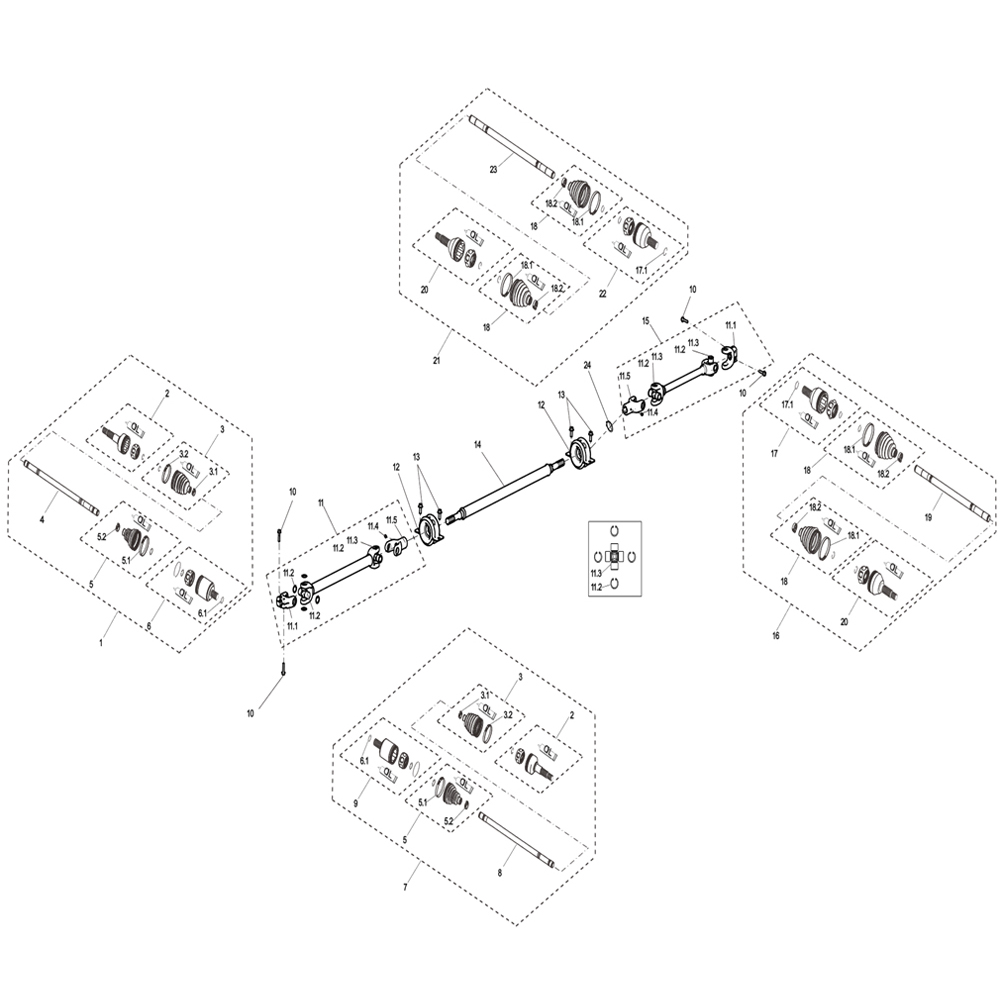

Segway SSV Transmission System Assembly (Wide Vehicle Version) Parts:

No.	Part Number	Part Name
1	S03P12000001	Fr Cv Drive Shaft Assembly(Wide )
2	S01P11002001	Fl&fr Outer Cv Boot Assembly
3	S01P11005001	Fl&fr Outer Cv Boot Dust Cover Assembly
3a	U01P11004001	Small Clamping Band
3b	U01P11002001	Big Clamping Band
4	S03P12002001	Front Right Middle Shaft
5	S01P11004001	Fl&fr Inner Cv Boot Dust Cover Assembly
5a	U01P11008001	Big Clamping Band
5b	U01P11006001	Small Clamping Band
6	S01P12001001	Front Right Inner Cv Boot Assembly
6a	U01P11011001	Circlip
7	S03P11000001	Fl Cv Drive Shaft Assembly(Wide)
8	S03P11003001	Front Left Middle Shaft
9	S01P11001001	Front Left Inner Cv Boot Assembly
10	A03F11001101	Bolts M8x35
11	S03P21100002	Front Drive Shaft Front Section Assembly
11a	U01P21101001	Transmission Shaft Mounting Spline Fork
11b	GBT000893007	Circlip 25
11c	U01P22010001	Univerrsal Cross Shaft Assy

No.	Part Number	Part Name
11d	GBT001152001	Fuel Cup M6
11e	U09P21301001	Transmission Shaft Sliding Spline Fork
12	U01P21400001	Intermediate Support Seat
13	GBT005789026	Hexagon Flange Boltm10×1.25×25
14	S03P21200002	Front Drive Shaft Middle Section Assy
15	S05P21300002	Drive Shaft Rear Section Components
16	S05P14000002	Rl Cv Drive Shaft Assy(Wide)
17	S05P14001001	Rear Left Inner Cv Boot Assembly
17a	U09P13006001	Circlip
18	S05P13003001	Rl&rr Cv Boot Dust Cover Assembly
18a	U09P13002001	Big Clamping Band
18b	U09P13004001	Small Clamping Band
19	S05P14003002	Rear Left Middle Shaft_wide
20	S05P14002001	Rl&rl Outer Cv Boot Assembly
21	S05P13000002	Rr Cv Drive Shaft Assy(Wide)
22	S05P13001001	Rear Right Inner Cv Boot Assembly
23	S05P13002002	Rear Right Middle Shaft_wide
24	GBT000894012	Circlip 30
