Segway SSV Water Pump assembly
CA$0.91
In stock
SKU
Segway SSV Water Pump assembly
Segway SSV Water Pump assembly Parts:
| No. | Part Number | Part Name |
| 1 | F02H00001001 | Water Pump Cover |
| 2 | F01000006001 | Bolt M6×30 |
| 3 | F02H00012001 | Bolt M6×95 |
| 4 | F01000001001 | Bolt M6×12 |
| 5 | GBT000971009 | Gasket 6 |
| 6 | QCT006211018 | Clamp,springband 32 |
| 7 | F02C20003001 | Internal Circulating Water Pipe |
| 8 | F02H00003001 | Water Pump Cover Sealing Ring |
| 9 | F01000002001 | Bolt M6×16 |
| 10 | F01H01009001 | Disc Spring 12.5×6.4×1 |
| 11 | F01H01010001 | Combination Washer |
| 12 | F02H00002001 | Water Pump Impeller |
| 13 | F02H00009001 | Oil Seal 15×30×5 |
| 14 | F02H00007001 | Bushing |
| 15 | F02H00010001 | Oil Seal 15×28×5 |
| 16 | F02H00006001 | O-ring Seal 8×2 |
| 17 | F02H00004001 | Flat Washer 13.1×25×1 |
| 18 | F02H00008001 | Water Pump Shaft |

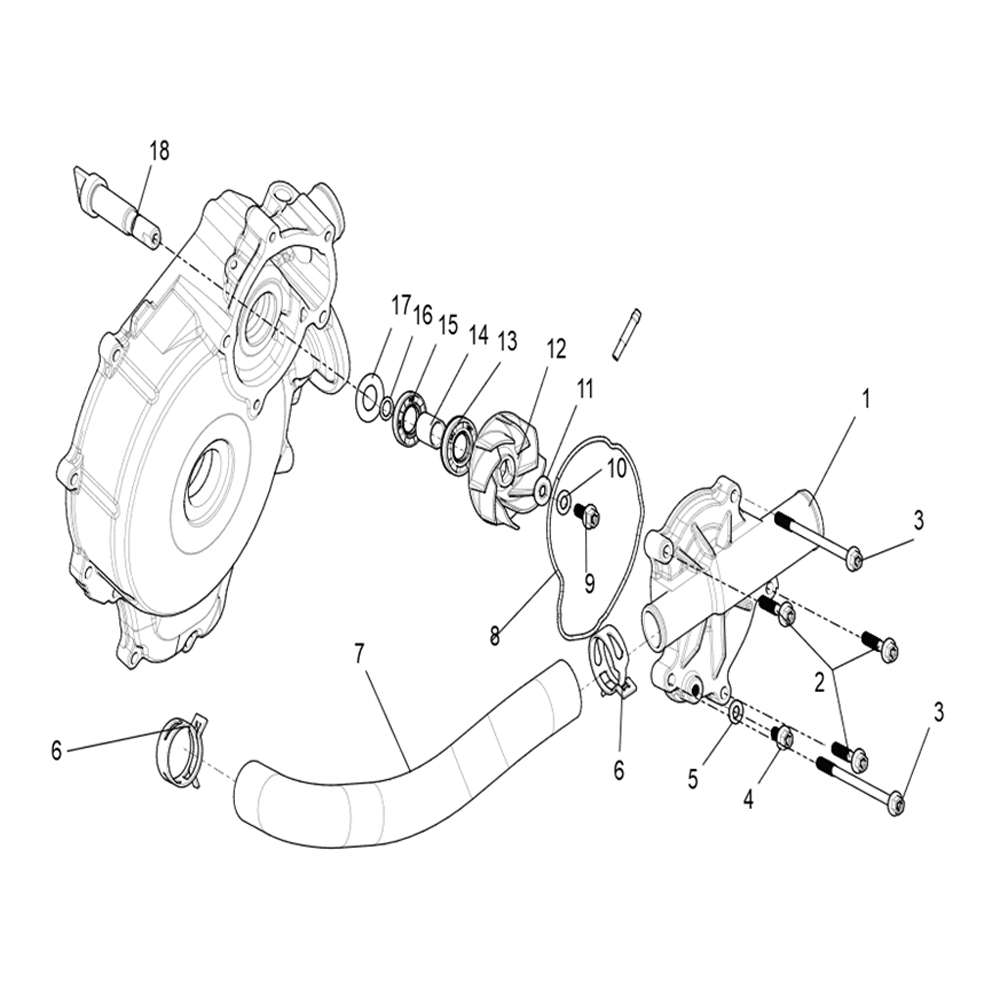

Segway SSV Water Pump assembly Diagram:
