Segway SSV Winch Assembly
CA$0.91
In stock
SKU
Segway SSV Winch Assembly
Segway SSV Winch Assembly Parts:
| No. | Part Number | Part Name |
| 1 | U01M05601001 | Winch Draw Belt |
| 2 | U01M05600001 | Winch Hook |
| 3 | U01M05602001 | Winch Rubber Pad |
| 4 | U01M05700001 | Winch Guide Wheel |
| 5 | S01M05100001 | 3500 Winch Motor |
| 5 | S01M05100002 | 4500 Winch Motor |
| 6 | S01M05400001 | Winch Motor Wire |
| 7 | S01M05500001 | Winch Power Cord |
| 8 | U01M05800001 | Winch Relay |
| 9 | U01M05200001 | Winch Switch |
| 10 | U01M05300001 | Winch Switch Socket |
| 11 | U01M05900001 | Winch Wireless Control Module (Including Wireless Switch) |
| 12 | GBT005789016 | Hexagon Flange Bolt M8×25 |
| 13 | GBT005789025 | Hex Flange Bolt M10×1.25×20 |
| 14 | GBT005789010 | Hexagon Flange Bolt M6×25 |
| 15 | GBT000845009 | Cross Recessed Pan Head Tapping Screw St4.2×13 |
| 16 | U01M05120001 | 3500 Lb Wire Rope Assembly |
| 16 | U01M05130001 | 4500 Lb Wire Rope Assembly |
| 17 | S01M05000004 | 3500 Winch Assembly |
| 17 | S01M05000005 | 4500 Winch Assembly |
| 18 | S01M05000001 | 3500 Winch Assembly (Wireless) |
| 18 | S01M05000003 | 4500 Winch Assembly (Wireless) |

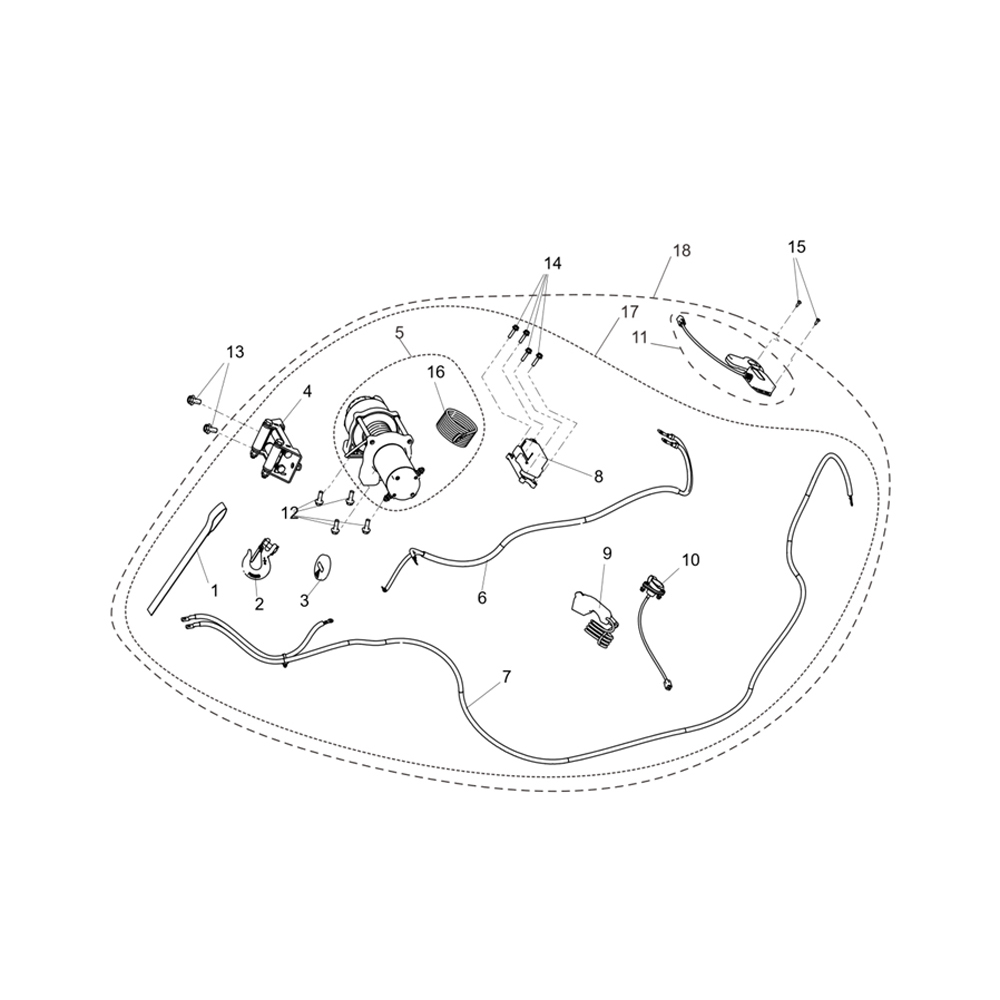

Segway SSV Winch Assembly Diagram:
