Segway UT10 Crew U5 Beadlock Rim EU 27inch
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Beadlock Rim EU 27inch
Segway UT10 Crew U5 Beadlock Rim EU 27inch Parts:
| No. | Part Number | Part Name |
| 1 | T08000020001 | Al Rim Trim Cover |
| 2 | T08000011002 | Hub Nut-black |
| 3 | GBT000091009 | Cotter 4×50 |
| 4 | T08000018001 | Nut M24×2 |
| 5 | T08000017001 | Washer |
| 6 | GBT005789096 | Bolt M8×25 |
| 7 | T08000009007 | Anti-slip Ring Of Wheel-black |
| 8 | T08111000113 | Tire 27×9.00r14 Cu58(Cst) |
| 8 | T08112000113 | Tire 27×9.00r14 P350(Wanda) |
| 9 | T08000015001 | Beadlock Bolt Sleeve |
| 10 | T08000006002 | Front Al Wheel Rim 1465 |
| 11 | U01-F210100-PB0-01 | Front Al Wheel Rim With Beadlock 1465 |
| 12 | T08100001001 | Valve Assy_ Long |
| 13 | U01F20011001 | U01 Rim Mounting Seat-black |
| 14 | T08000014002 | Hub Bolt-black |
| 15 | U01F20010001 | U01 Rim Mounting Seat Assy |
| 16 | T08111000114 | Tire 27×11.00r14 Cu58(Cst) |
| 16 | T08112000114 | Tire 27×11.00r14 P350(Wanda) |
| 17 | T08000008002 | U01_rear Al Wheel Rim 1470 Black |
| 18 | U01-F220100-PB0-01 | Rear Al Wheel Rim With Anti-slip Ring 1470 |
| 19 | S01F20011001 | Rear Rim Mounting Seat |
| 20 | S01F20010001 | Rear Rim Mounting Seat Assy |

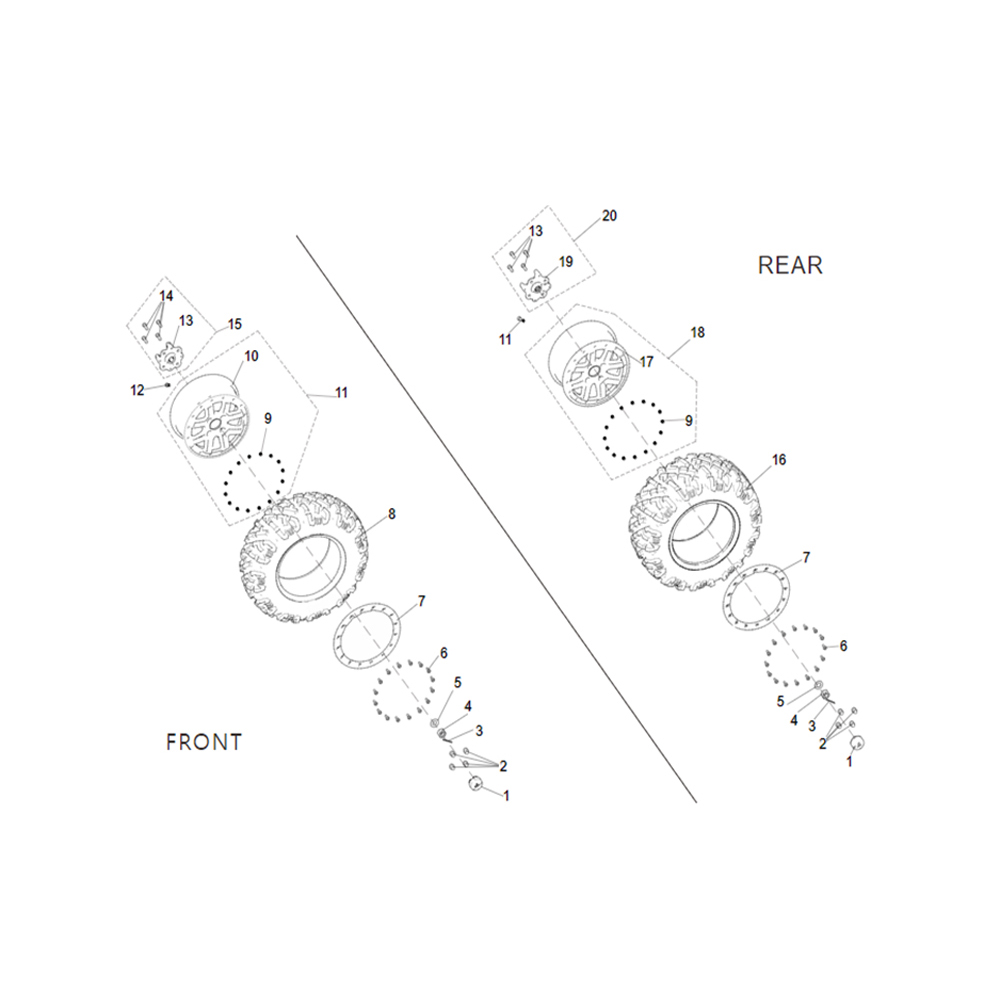

Segway UT10 Crew U5 Beadlock Rim EU 27inch Diagram:
