Segway UT10 Crew U5 Braking System
CA$0.91
In stock
SKU Segway UT10 Crew U5 Braking System
Segway UT10 Crew U5 Braking System Parts:
| No. |
Part Number |
Part Name |
| 1 |
U01E11200001 |
U01 Fr Brake Assy |
| 2 |
S05E15C50001 |
S05_braek Pad Clip |
| 3 |
S05E15C60001 |
S05_braek Pad Clip A |
| 4 |
S03E15A20001 |
S03_front Brake Pad Assembly |
| 5 |
A03E11012001 |
Gasket |
| 6 |
A03E11011001 |
Bolt Inner Oil |
| 7 |
U01E11700001 |
U01 Fr Brake Oil Pipe |
| 8 |
A03E11005001 |
Hydraulic Induction Switch |
| 9 |
U01E11600001 |
U01 Fl Brake Oil Pipe |
| 10 |
U03-E115000-000-00 |
Foot Brake Main Pump Assy |
| 11 |
U01E11100001 |
Front Left Brake Assembly |
| 12 |
U03-E118000-000-00 |
Rear Brake Hose |
| 13 |
U05E11300001 |
U05 Rl Brake Assy |
| 14 |
S05E15C20001 |
S05_rear Brake Pad Assembly |
| 15 |
U05E11400001 |
U05 Rr Brake Assy |
| 16 |
U03-E110000-000-00 |
Hydraulic Brake Assy |
| 17 |
U01E10001002 |
U01_front Brake Discφ248，pcd120 |
| 18 |
A03E10004001 |
Bolt, Front Brake Disc |
|
| No. |
Part Number |
Part Name |
| 19 |
GBT005789006 |
Hexagon Flange Bolt M6×12 |
| 20 |
GBT005789007 |
Bolt M6×16 |
| 21 |
GBT061771002 |
Nut M6 |
| 22 |
GBT005789026 |
Bolt M10×1.25×25 |
| 23 |
GBT005789008 |
Hexagon Flange Bolt M6×20 |
| 24 |
U01C00003002 |
U01 Main Brake Pump Guard Board |
| 25 |
GBT005789016 |
Hexagon Flange Bolt M8×25 |
| 26 |
GBT000701008 |
Screw M10×1.25×65 |
| 27 |
A03E12201001 |
Nylon Bushing |
| 28 |
U01E12003001 |
U01 Brake Pedal Spring 65mn |
| 29 |
U01E12004001 |
U01 Lining Sleeve |
| 30 |
U03-E120100-DB0-00 |
Brake Pedal(Black) |
| 31 |
GBT000971005 |
Washer 10 |
| 32 |
GB0000093005 |
Washer 10 |
| 33 |
GBT006170001 |
Nut M10×1.25 |
| 34 |
U03-E120300-DB0-00 |
Brake Pedal Holder Assy |
| 35 |
GBT005789015 |
Hexagon Flange Bolt M8×20 |
| 36 |
U01E10002002 |
U01_rear Brake Discφ240，pcd140 |
|

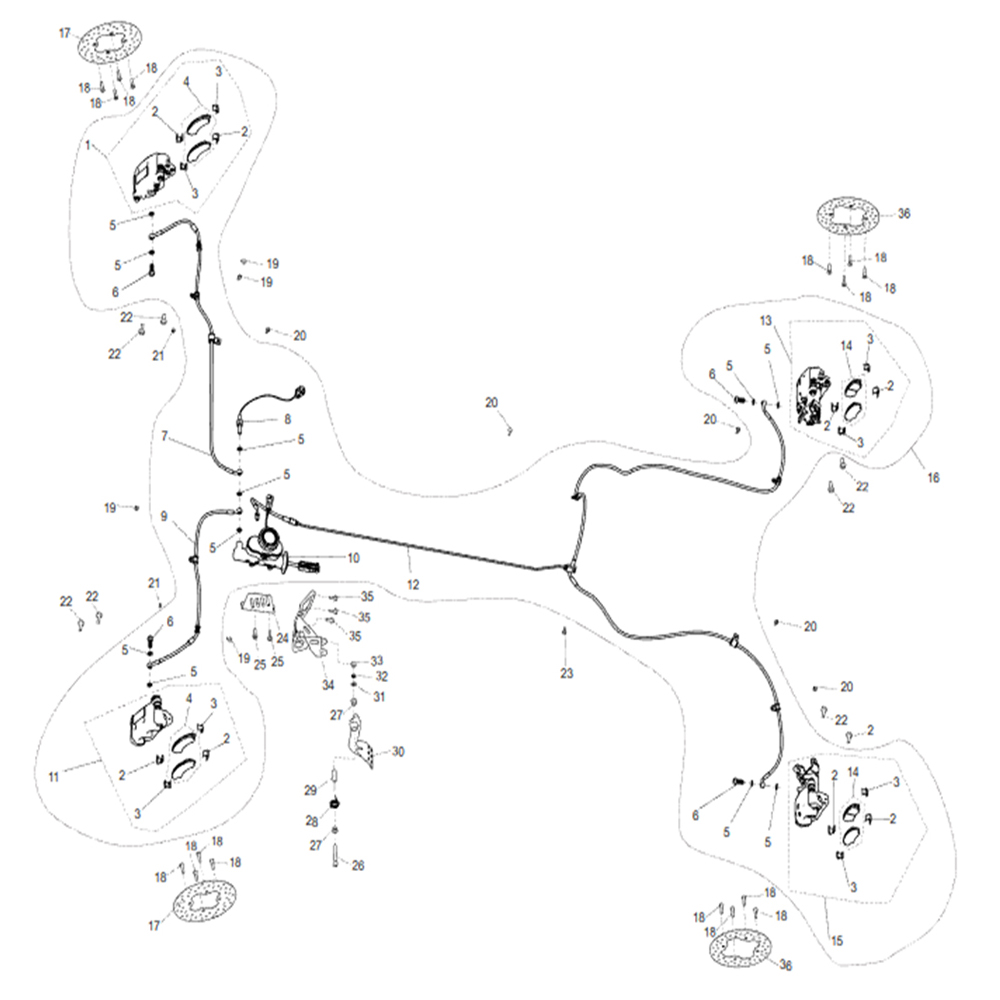

Segway UT10 Crew U5 Braking System Diagram:
