Segway UT10 Crew U5 Cooling System Assembly
Segway UT10 Crew U5 Cooling System Assembly Parts:
| No. | Part Number | Part Name |
| 1 | GBT005789007 | Bolt M6×16 |
| 2 | GBT005789008 | Hexagon Flange Bolt M6×20 |
| 3 | GBT061831002 | Nut M6 |
| 4 | U03-A400103-000-00 | Radiator Front Air Deflector |
| 5 | U03-A400101-000-00 | Engine Radiator Body |
| 6 | A01A41110002 | Tank Lid Assy V |
| 7 | S01A40103001 | T-sleeve |
| 8 | U03-A400102-000-00 | Fan Shroud |
| 9 | QCT006211003 | Clamp 11 |
| 10 | U09A43051001 | Radiator Negative Pressure Pipe |
| 11 | U01A43042001 | Auxiliary Water Tank Cover |
| 12 | U01A43043001 | Water Tank Plug |
| 13 | U01A43041004 | Water Tank Body |
| 14 | U03-C000010-DB0-00 | Radiator Mounting Bracket Assy |
| 15 | GBT005789010 | Hexagon Flange Bolt M6×25 |
| 16 | U09A41105001 | T Bush V |
| 17 | U09A41104001 | I-shaped Rubber Ring V |
| 18 | U09-A400102-000-00 | Engine Fan |
| 19 | BQ006211-03815-Z01 | Clamp(Width 15) |
| 20 | T05000070001 | 38 Rubber Strip |
| 21 | U09-A420060-000-00 | Radiator Water Inlet Hose |
| 22 | U09A42001001 | U09 Engine Front Water Outlet Hose |
| 23 | U09A42011001 | U09 Water Pipe Clamp |
| 24 | GBT008191004 | Screw M6×14 |
| 25 | U03-A420050-000-00 | Engine Outlet Aluminum Pipe |
| 26 | U03-A420040-000-00 | Engine Intake Aluminum Pipe |
| 27 | T05000080002 | 32 Clamps |
| 28 | U09A42003001 | Engine Rear Water Inlet Hose 1 |
| 29 | U09A42002001 | Engine Rear Water Outlet Hose |
| 30 | U09A42008001 | Engine Oil Cooling Pipe |
| 31 | S01A42500001 | Connector, Tee |
| 32 | U09A42007002 | Engine Rear Water Inlet Hose 2 |
| 33 | QCT006211015 | Clamp 20 |
| 34 | U03-A400100-000-00 | Engine Radiator Assy |

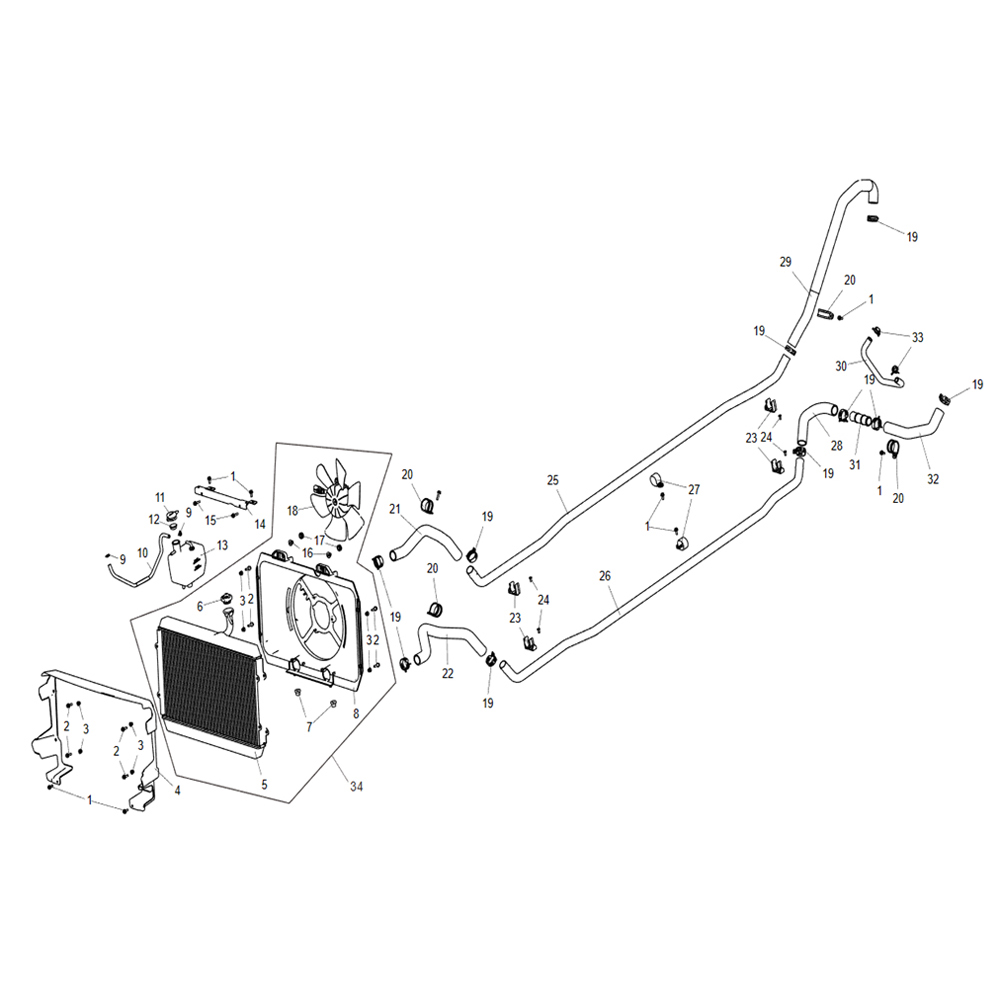

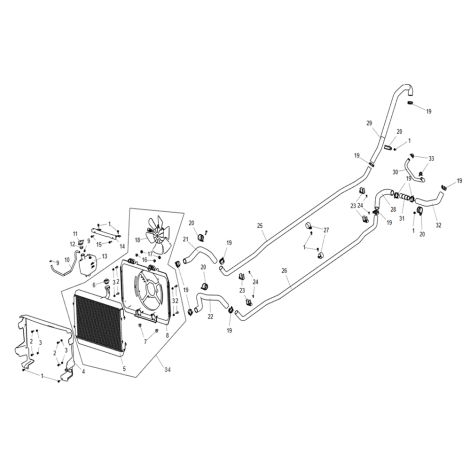

Segway UT10 Crew U5 Cooling System Assembly Diagram:
